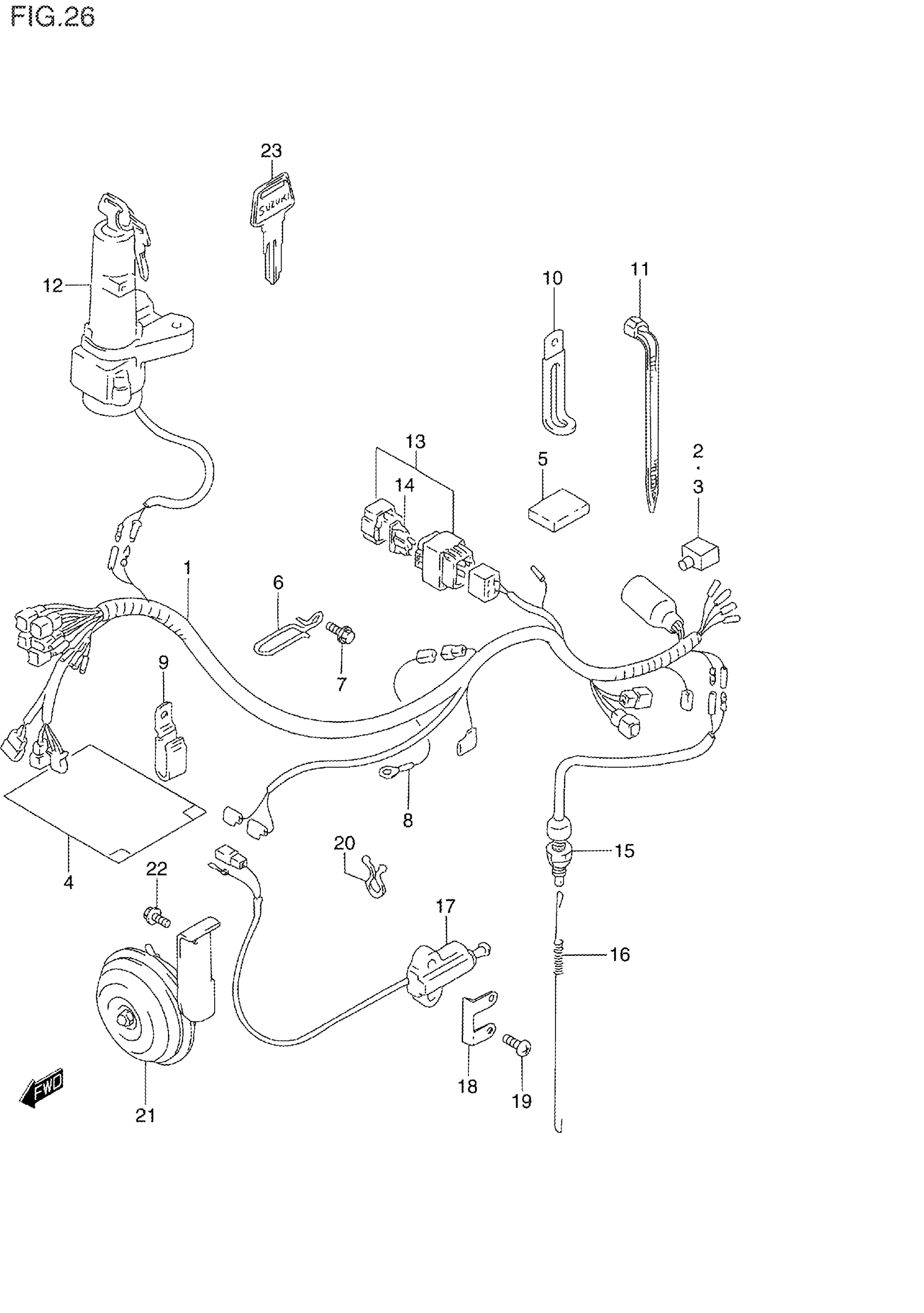

Suzuki DR250SES (1995) WIRING HARNESS (MODEL L/M/N) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL L/M This part replaces 36610-14D30.

36610-14D21

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL N; Includes Item(s) 2 - 3 This part replaces 36610-14D31.

36610-14D21

Unavailable

2

CAP, BATTERY PLUS

33624-03D00

Unavailable

3

CAP, BATTERY MINUS This part replaces 33624-11300.

33624-03A00

Unavailable

4

COVER WIRING HARNESS | MODEL L This part replaces 36618-15D10.

36618-15D21

$18.87

4

COVER WIRING HARNESS | MODEL M/N This part replaces 36618-15D11.

36618-15D21

$18.87

4

COVER WIRING HARNESS | MODEL L This part replaces 36618-15D00.

36618-15D21

$18.87

4

COVER WIRING HARNESS | MODEL M/N This part replaces 36618-15D01.

36618-15D21

$18.87

5

CUSHION | MODEL L

33651-37000

$4.48

5

CUSHION | MODEL M/N

36920-14D00

$7.77

6

GUIDE, WIRE HARNESS | MODEL L/M

36619-14D10

Unavailable

7

BOLT This part replaces 01517-06105.

01550-0610A

$1.97

8

LEAD WIRE, IGNITION This part replaces 36851-14D00.

36851-05D00

$5.82

9

CLAMP This part replaces 09403-06307.

09403-06329

$2.32

10

CLAMP

09404-06429

$1.83

10

CLAMP This part replaces 09404-06424.

09404-06039

$1.74

10

CLAMP This part replaces 09404-08403.

09404-08420

$3.16

10

CLAMP This part replaces 09404-08404.

09404-08420

$3.16

11

CLAMP

09407-02401

Unavailable

11

CLAMP

09407-10404

$2.90

11

CLAMP (L:125)

09407-14403

$2.26

11

CLAMP (L:125)

09407-14409

Unavailable

11

CLAMP (L:185)

09407-18402

$2.19

11

CLAMP (L:235)

09407-25401

$4.66

12

LOCK ASSY, STEERING This part replaces 37110-03D00.

37110-03D01

Unavailable

13

FUSE ASSY | Includes Item(s) 14

36740-04701

$22.22

14

FUSE (15A)

09481-15101

$2.53

15

SWITCH ASSY, STOP

37740-14D00

Unavailable

16

SPRING

09443-06080

$4.73

17

SWITCH ASSY,SID This part replaces 37840-48B21.

37840-12X52

$69.30

18

PROTECTOR

37841-14D00

Unavailable

19

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

20

CLIP

09408-00012

$2.13

21

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 38500-14D00.

38500-14D02

Unavailable

21

NO DESCRIPTION AVAILABLE | MODEL M/N This part replaces 38500-14D01.

38500-14D02

Unavailable

22

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

23

KEY, BLANK | TYPE C This part replaces 37146-24500.

37146-03A00

$9.89

23

KEY, BLANK | TYPE D This part replaces 37146-24510.

37146-03A10

$11.63

24

REFER TO FIG.26A(E-15) FOR

SPECIAL NOTE

Unavailable
