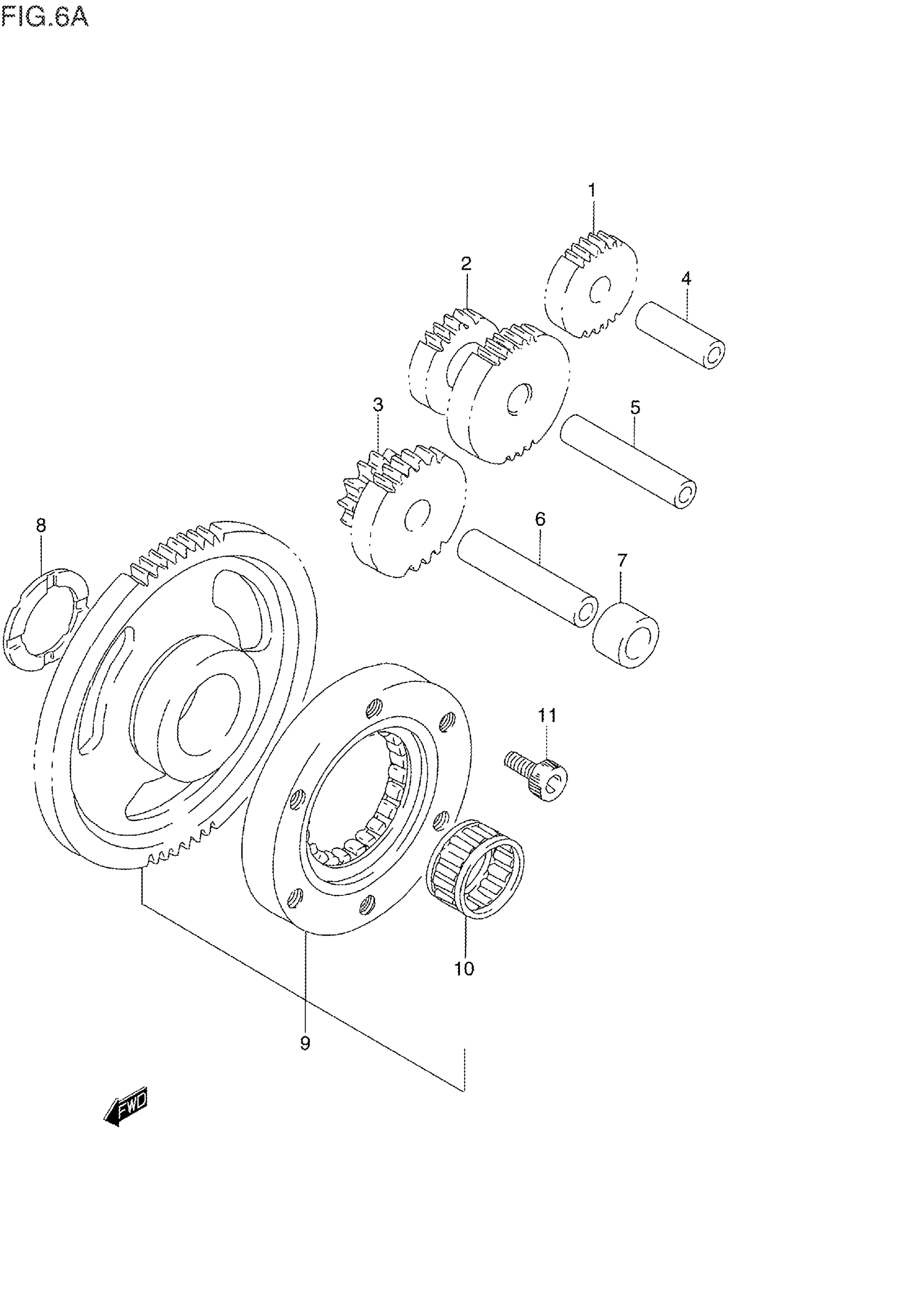

Suzuki DR250SES (1995) STARTER CLUTCH (MODEL P/R/S) Diagram

#

Description

Price

1

GEAR, STARTER IDLE NO.1

12611-15D01

Unavailable

2

GEAR, STARTER IDLE NO.2

12612-15D00

Unavailable

3

GEAR, STARTER IDLE NO.3

12613-15D00

Unavailable

4

PIN (10x32)

09206-10012

Unavailable

5

PIN (10x55.5)

09206-10011

Unavailable

6

PIN (12x55.5)

09206-12003

$16.00

7

SPACER This part replaces 09180-12066.

09180-12139

$8.07

8

WASHER (27X40X2.5)

09160-27005

$12.93

9

CLUTCH SET, STARTER | Includes Item(s) 10

12600-15810

Unavailable

10

BEARING (27X32X18)

09263-27009

Unavailable

11

BOLT | MODEL P This part replaces 09106-08043.

07130-0816A

$3.16

11

BOLT | MODEL R/S This part replaces 07130-08163.

07130-0816A

$3.16
