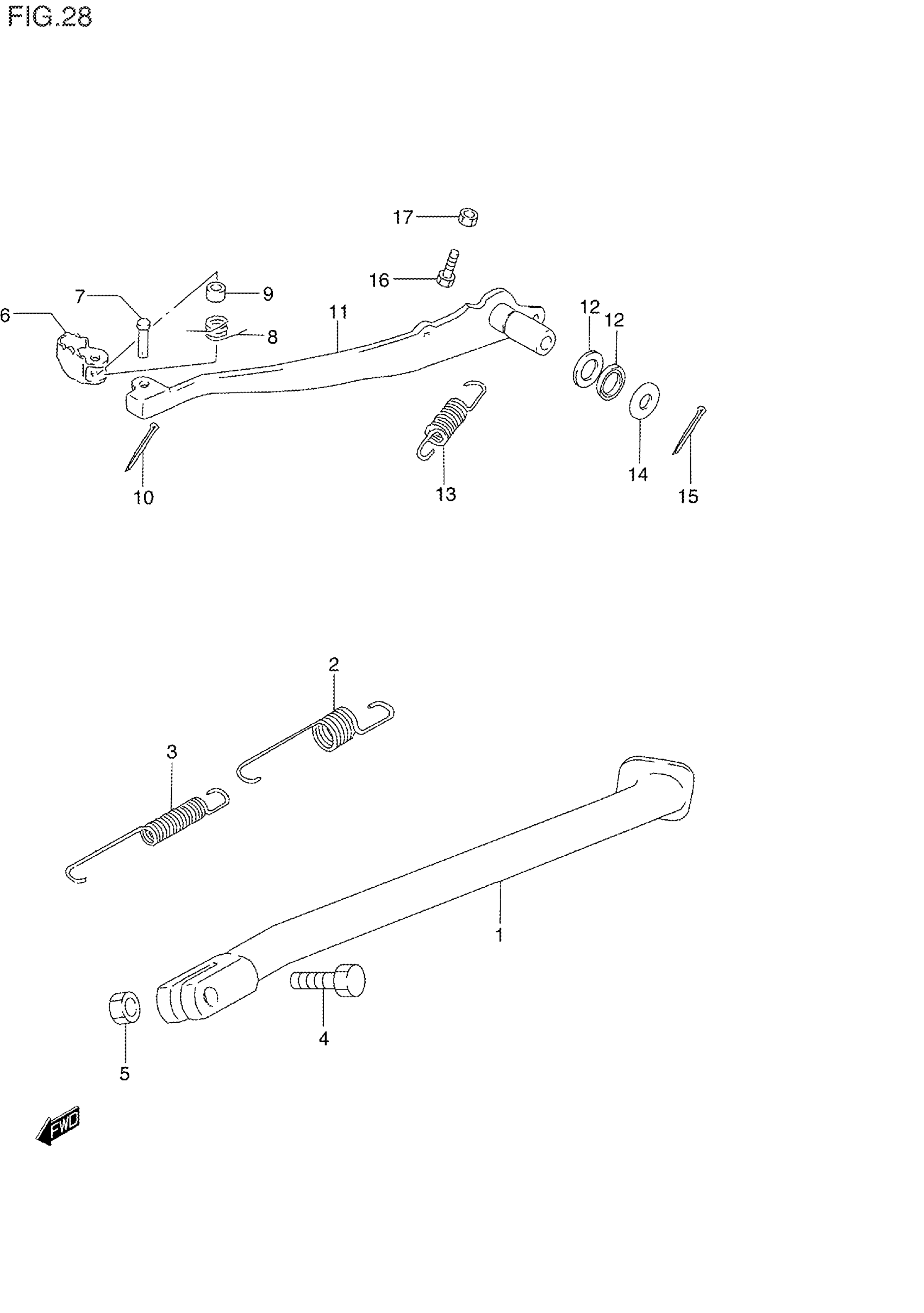

Suzuki DR250SES (1995) STAND - REAR BRAKE Diagram

#

Description
Price

1

STAND, PROP (BLACK) | MODEL L This part replaces 42310-14D11-0NF.

42310-14D12-019

Unavailable

1

STAND, PROP (BLACK) | MODEL M/N This part replaces 42310-14D12-0NF.

42310-14D12-019

Unavailable

1

STAND, PROP (BLACK) | MODEL P/R/S

42310-14D12-019

Unavailable

2

SPRING, OUTER

09443-19010

$6.51

3

SPRING, INNER

09443-12036

$7.84

4

BOLT

09111-10047

$4.11

5

NUT | MODEL L/M/N/P This part replaces 08310-22107.

08310-00107

$2.19

5

NUT | MODEL R/S

09159-10097

$5.66

6

PEDAL, BRAKE

43110-14130

$16.15

7

PIN

09200-06038

$2.38

8

SPRING | MODEL L/M/N/P This part replaces 09444-11004.

09444-11005

$2.86

8

SPRING | MODEL R/S

09444-11005

$2.86

9

SPACER (6.6X9X6.5) | MODEL L/M/N/P

09180-06137

Unavailable

9

SPACER | MODEL R/S This part replaces 09180-06165.

09180-06257

$2.83

10

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

11

ARM, BRAKE PEDAL

43120-15D00

Unavailable

12

DUST SEAL

09284-15006

$3.55

13

SPRING

09443-14025

$3.29

14

WASHER

09160-15002

$1.91

15

PIN This part replaces 04111-30308.

04111-3030A

$1.49

16

BOLT (6x27)

09100-06009

$1.91

17

.NUT | MODEL L/M/N/P This part replaces 08310-11067.

08310-00067

$2.13

17

NUT | MODEL R/S This part replaces 08310-00063.

08310-0006A

$1.84
