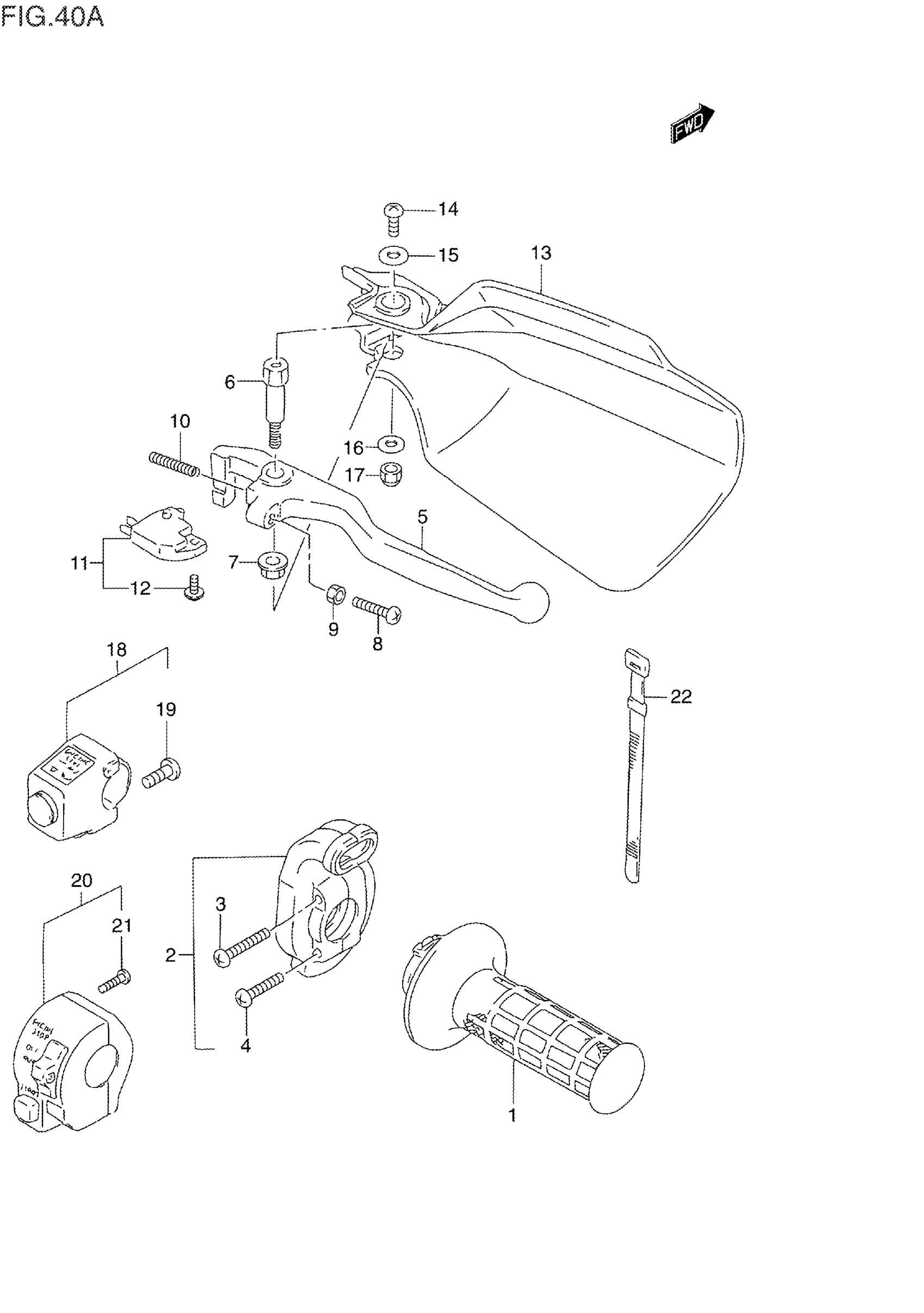

Suzuki DR250SES (1995) RIGHT HANDLE SWITCH (MODEL N/P/R/S) Diagram

#

Description
Price

1

GRIP, THROTTLE | MODEL N->57110-14D11 This part replaces 57110-14D10.

57110-14D11

$44.50

1

GRIP, THROTTLE | MODEL P/R/S

57110-14D11

$44.50

2

CASE ASSY THROTTLE | Includes Item(s) 3 - 4

57100-14D00

$70.49

3

SCREW

09125-05066

$1.65

4

SCREW This part replaces 02112-05205.

02112-0520B

$1.84

5

LEVER, BRAKE

57421-03D00

$15.47

6

SCREW

57431-05D00

$13.20

7

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

8

BOLT, ADJUST

57431-14511

$5.80

9

NUT This part replaces 08310-12055.

08310-0005A

$1.84

10

SPRING, RETURN

57318-14502

$4.48

11

SWITCH ASSY,FR BRAKE | Includes Item(s) 12 This part replaces 57460-17C00.

57460-14J02

$38.46

12

SCREW

57465-17C00

$2.19

13

COVER, KNUCKLE RH (BLUE)

57341-05D00-0NF

$40.25

14

SCREW

09125-05042

$1.96

15

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

16

.WASHER (6.5X16X1.6) This part replaces 09160-06042.

09160-06130

$1.91

17

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

18

SWITCH ASSY,HAN | MODEL N; Includes Item(s) 19 This part replaces 37200-14D01.

37200-44E00

Unavailable

19

.SCREW | MODEL N This part replaces 02112-05166.

02112-0516A

$1.49

20

NO DESCRIPTION AVAILABLE | MODEL P/R/S; Includes Item(s) 21 - 21 This part replaces 37200-15D20.

37200-15D30

Unavailable

21

SCREW | MODEL P This part replaces 02112-04205.

02112-0420A

$1.49

21

SCREW | MODEL R/S

09125-05066

$1.65

22

BAND

09407-12402

$3.04
