1995 Suzuki DR250SES Rear Wheel Diagram

← All diagrams

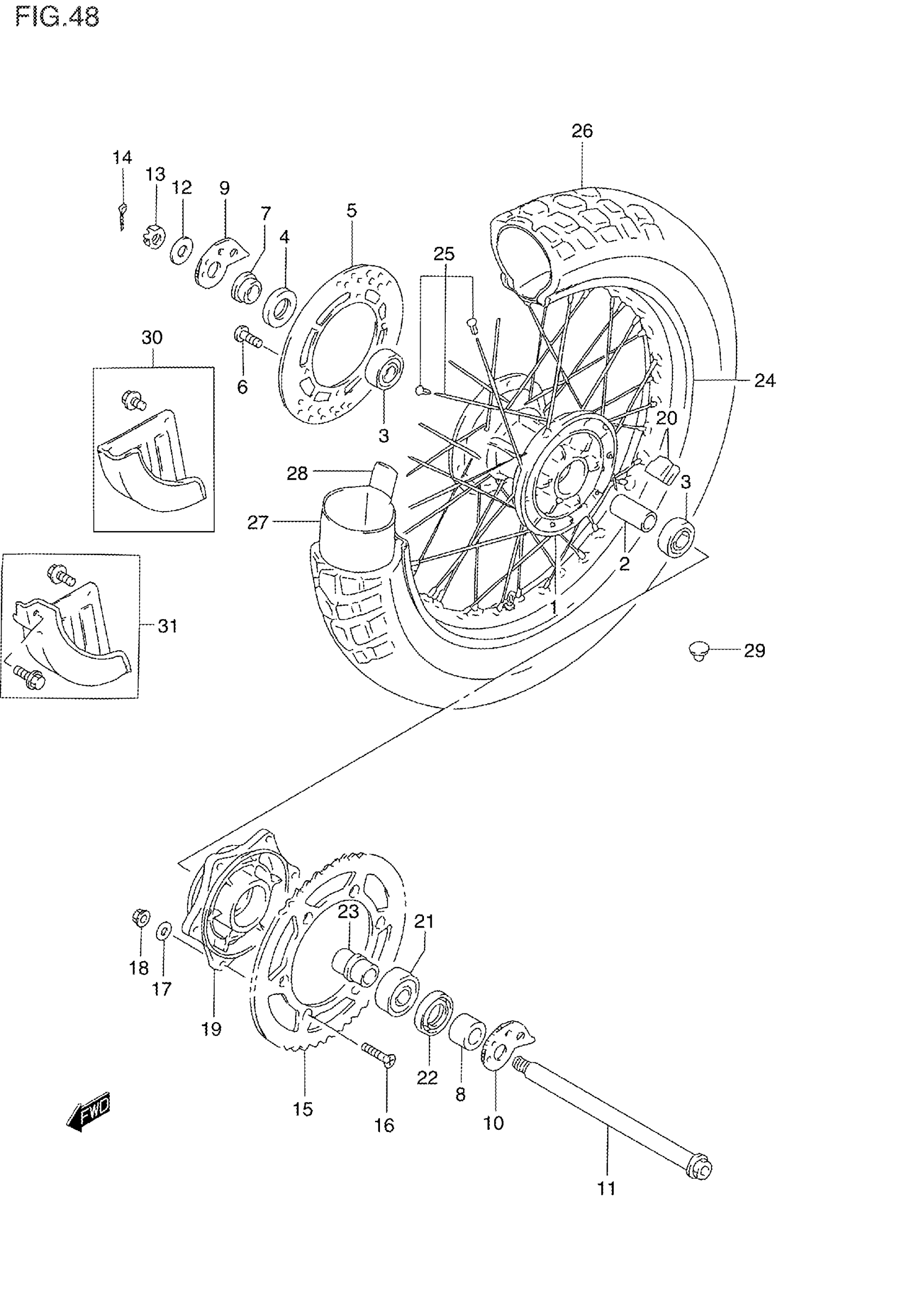

Find the part on the Rear Wheel diagram for your 1995 Suzuki DR250SES, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki DR250SES Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL

64111-15D00

1
Out of stock

2

SPACER, BEARING

64731-15D00

1
Out of stock

3

BEARING This part replaces 08123-62047.

08123-6204B

2
Out of stock

4

OIL SEAL (26X47X5)

09283-26019

1
Out of stock

5

DISC, REAR BRAKE

69211-03D01

1
Out of stock

6

BOLT | MODEL L/M/N This part replaces 09106-08091.

09106-08128

4
Out of stock

6

BOLT | MODEL P/R/S This part replaces 09106-08111.

09106-08128

4
Out of stock

7

SPACER, AXLE RH

64741-05D00

1
Out of stock

8

SPACER, AXLE LH

64751-15D00

1
Out of stock

9

ADJUSTER, CHAIN, LH | MODEL L This part replaces 61410-14D00.

61420-05D00

1
Out of stock

9

ADJUSTER, CHAIN RH (T:4.0) | MODEL M/N/P/R/S

61410-14D10

1
Out of stock

10

ADJUSTER, CHAIN LH (T:3.2) | MODEL L

61421-14D00

1
Out of stock

10

ADJUSTER, CHAIN LH (T:4.0) | MODEL M/N/P/R/S

61421-14D10

1
Out of stock

11

AXLE, REAR (L:282) | MODEL L This part replaces 64711-15D01.

64710-14D20

1
Out of stock

11

AXLE, REAR (L:283.5) | MODEL M/N/P/R/S

64711-15D50

1
Out of stock

12

WASHER | MODEL R/S

09160-19022

1

$4.74

In stock

13

NUT | MODEL L/M/N/P This part replaces 08314-41188.

08314-40187

1
Out of stock

13

NUT | MODEL R/S This part replaces 08314-40183.

08314-4018A

1
Out of stock

14

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

15

SPROCKET, REAR (NT:49) | MODEL L/M/N

64511-15D10

1
Out of stock

15

SPROCKET, REAR (NT:42) | MODEL P/R/S

64511-15D60

1
Out of stock

16

SCREW

09120-08010

6
Out of stock

17

WASHER | MODEL L/M/N/P This part replaces 08322-11088.

08322-01087

6
Out of stock

17

WASHER | MODEL R/S This part replaces 08322-01083.

08322-0108A

6
Out of stock

18

NUT

08319-31087

6
Out of stock

19

DRUM,REAR SPROCKET MOUNTING This part replaces 64611-15D00.

64611-15D01

1
Out of stock

20

ABSORBER, HUB SHCK

64651-15D00

6
Out of stock

21

BEARING

09262-25061

1
Out of stock

22

OIL SEAL (34X52X6)

09283-34003

1
Out of stock

23

RETAINER, DRUM

64733-15D00

1
Out of stock

24

RIM, REAR WHEEL (2.15X18)

65311-15D00

1
Out of stock

24

RIM, REAR WHEEL (2.15X18) | GOLD

65311-15D10

1
Out of stock

25

SPOKE ASSY, REAR WHEEL

65320-15D00

1
Out of stock

26

TIRE, REAR (110/90-18) | MODEL L/M This part replaces 65110-15D00.

65110-08D10

1
Out of stock

26

TIRE, REAR (110/90-18) | MODEL N

65110-08D10

1
Out of stock

26

TIRE, REAR (110/90-18) | MODEL P/R/S

65110-15D50

1
Out of stock

27

TUBE ASSY, WHEEL INNER This part replaces 65200-14540.

65200-42AA1

1
Out of stock

28

PROTECTOR, TUBE

65261-15D00

1
Out of stock

29

CAP

09250-08013

1

$2.92

In stock

30

COVER SET, REAR DISC | MODEL L/MFOR 69100-15D00OPT,OFF ROAD USE ONLY

69200-27C00

1
Out of stock

32

MANUAL, OWNER'S DR250SER | NOT SHOWN

99011-15D81-03A

1
Out of stock
