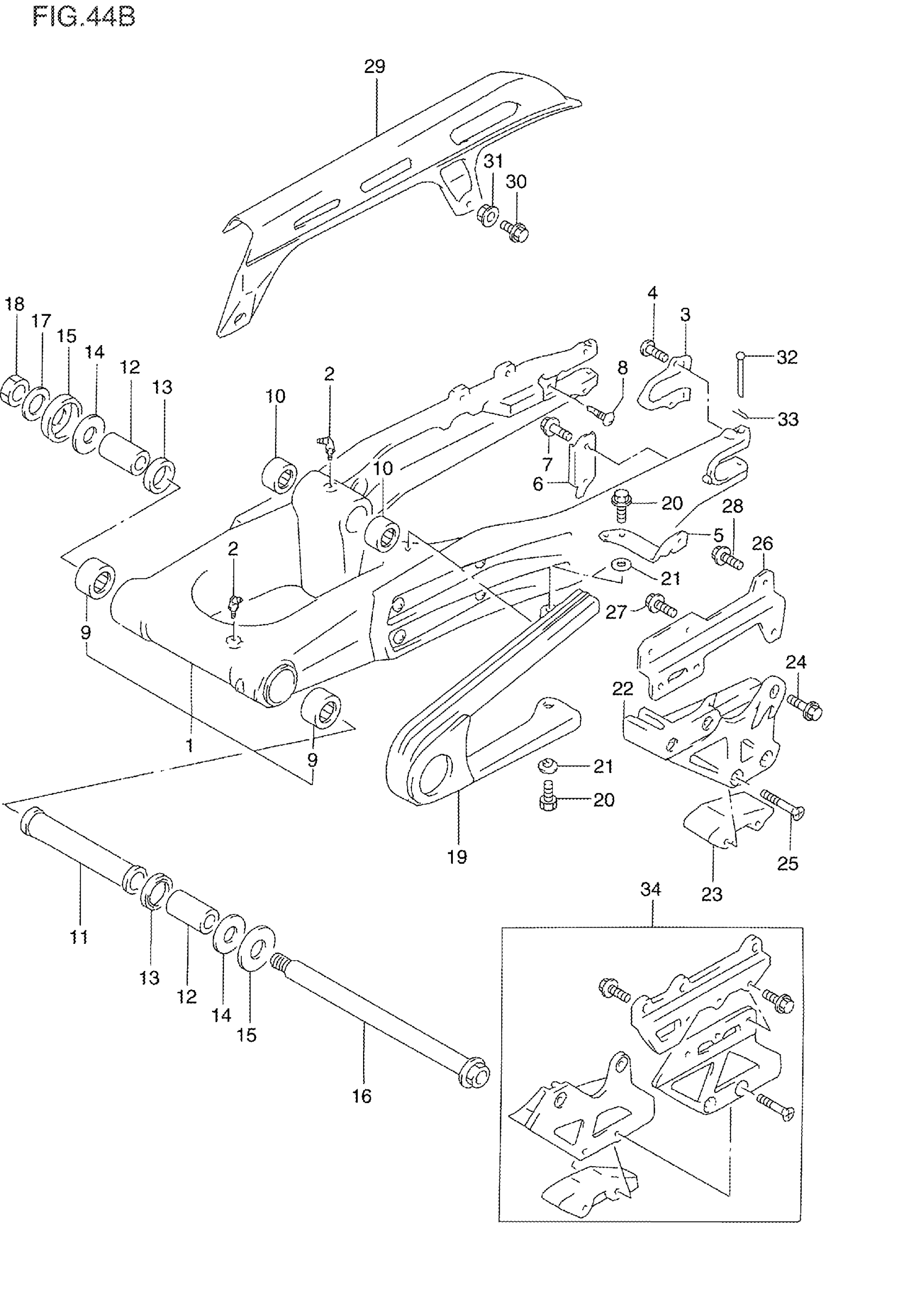

Suzuki DR250SES (1995) REAR SWINGING ARM (MODEL R/S) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | MODEL R This part replaces 61000-15D50.

61000-14D50

Unavailable

1

SWINGING ARM ASSY, REAR | MODEL S; Includes Item(s) 2 - 11

61000-14D50

Unavailable

2

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

$4.07

3

PLATE, REAR

61128-14D00

Unavailable

4

SCREW,5X8 This part replaces 09125-05072.

09125-05072-XC0

$2.35

5

PLATE, CHAIN CASE

61140-15D10

Unavailable

6

PLATE, REAR

61144-15D10

Unavailable

7

BOLT

09103-05013

Unavailable

8

SCREW

09139-10001

Unavailable

9

BEARING, PIVOT

09263-22017

$20.38

10

BEARING

09263-20071

$23.72

11

SPACER, PIVOT CENTER

09180-17097

Unavailable

12

SPACER, BEARING

61251-14D00

$31.55

13

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.46

14

WASHER

08211-17341

$2.53

15

COVER,DUST This part replaces 61262-28C10.

61262-28C11

$6.42

16

SHAFT, PIVOT

61211-14D00

Unavailable

17

WASHER This part replaces 08322-01163.

08322-0116A

$1.86

18

NUT

09159-16007

$11.37

19

BUFFER,CHAIN TO This part replaces 61273-14D00.

61273-14D01

$38.95

20

BOLT This part replaces 01500-06163.

01500-0616A

$1.77

21

WASHER

09169-06057

$2.92

22

GUIDE, CHAIN

61340-15E00

$79.33

23

DEFFENCE, CHAIN GUIDE

61348-15E00

$29.55

24

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

25

SCREW, LOWER This part replaces 02122-06503.

02122-0650B

$2.77

26

BRACKET, CHAIN GUIDE

61154-14D00

Unavailable

27

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

28

BOLT, CLAMP | MODEL This part replaces 01550-06123.

01550-0612A

$1.97

28

BOLT | MODEL S This part replaces 01550-06163.

01550-0616A

$1.97

29

CASE, CHAIN

61310-14A00

Unavailable

30

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

31

WASHER

09169-06026

$2.00

32

PIN, REAR AXLE

09200-06065

Unavailable

33

PIN

09385-06012

$1.89

34

GUIDE SET,CHAIN | OPT,OFF ROAD USE ONLY This part replaces 61300-14810.

61300-14811

Unavailable
