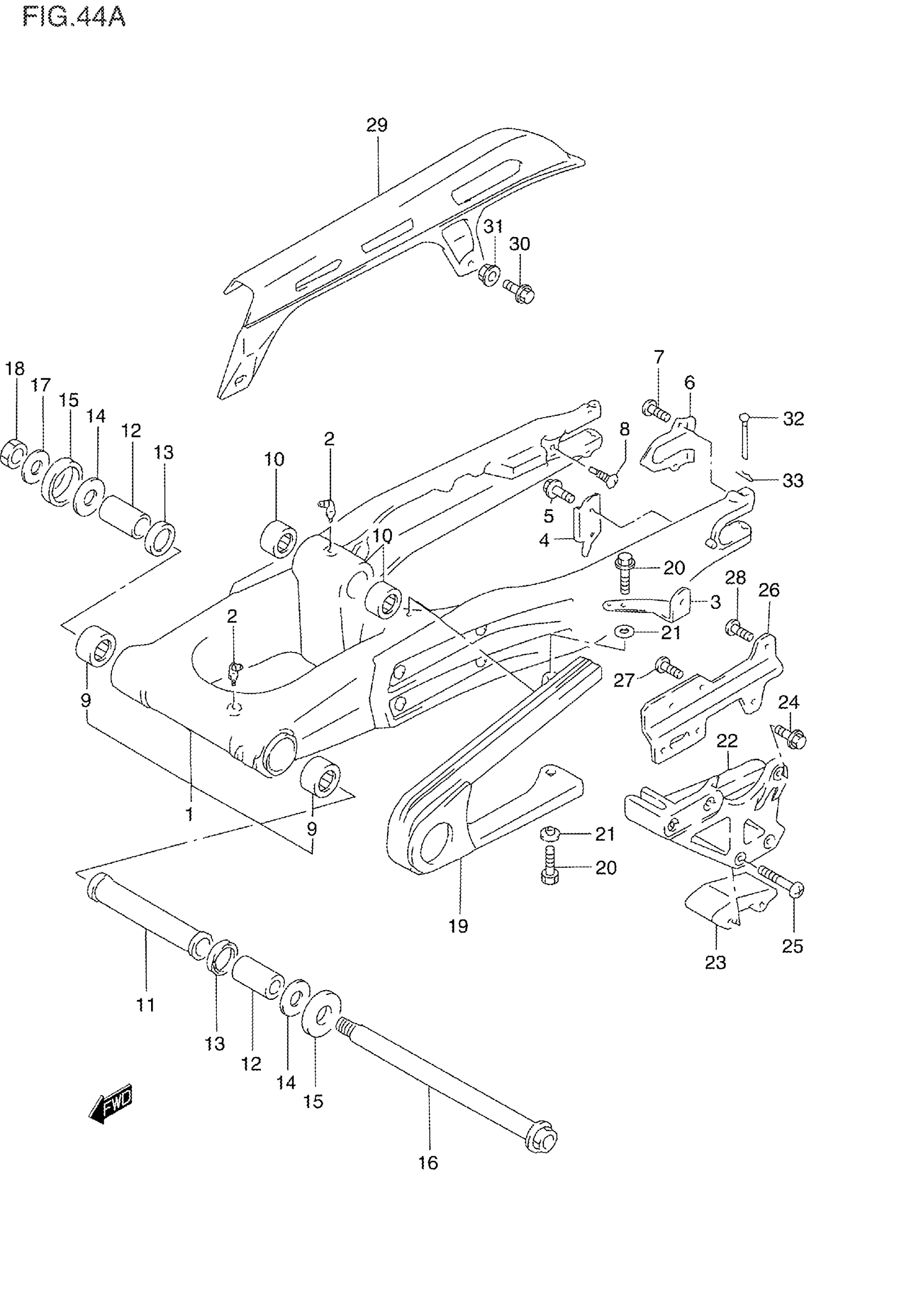

Suzuki DR250SES (1995) REAR SWINGING ARM (MODEL P) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 11 This part replaces 61000-14D30.

61000-14D50

Unavailable

2

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

$4.45

3

PLATE, FRONT

61140-15D10

Unavailable

4

PLATE, REAR

61144-15D10

Unavailable

5

BOLT

09103-05013

Unavailable

6

PLATE, REAR

61128-14D00

Unavailable

7

SCREW,5X8 This part replaces 09125-05072.

09125-05072-XC0

$2.15

8

SCREW

09139-10001

Unavailable

9

BEARING (22X29X30)

09263-22017

$22.58

10

BEARING (20X27X23.5)

09263-20071

$25.92

11

BEARING (17.3X24X126)

09180-17097

Unavailable

12

SPACER, BEARING

61251-14D00

$27.97

13

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

14

THRUST WASHER

08211-17341

$2.50

15

COVER,DUST This part replaces 61262-28C10.

61262-28C11

$7.01

16

SHAFT, PIVOT

61211-14D00

Unavailable

17

WASHER This part replaces 08322-11168.

08322-01167

$2.10

18

NUT

09159-16007

$12.61

19

BUFFER,CHAIN TO This part replaces 61273-14D00.

61273-14D01

$41.37

20

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

21

WASHER

09169-06057

$3.18

22

GUIDE, CHAIN

61340-15E00

$70.28

23

DIFENCE, CHAIN GUIDE

61348-15E00

$26.93

24

BOLT This part replaces 01517-06167.

01550-06167

$2.30

25

SCREW, LOWER This part replaces 02122-06508.

02122-0650B

$2.75

26

BRACKET, CHAIN GUIDE

61154-14D00

$63.80

27

BOLT This part replaces 01517-06167.

01550-06167

$2.30

28

BOLT This part replaces 01517-06128.

01550-06127

$2.30

29

CASE, CHAIN

61310-14A00

Unavailable

30

BOLT This part replaces 01517-06105.

01550-0610A

$1.97

31

WASHER

09169-06026

$2.20

32

PIN, REAR AXLE

09200-06065

Unavailable

33

PIN

09385-06012

$1.89

34

REFER TO FIG.44B (H-7) FOR

SPECIAL NOTE

Unavailable
