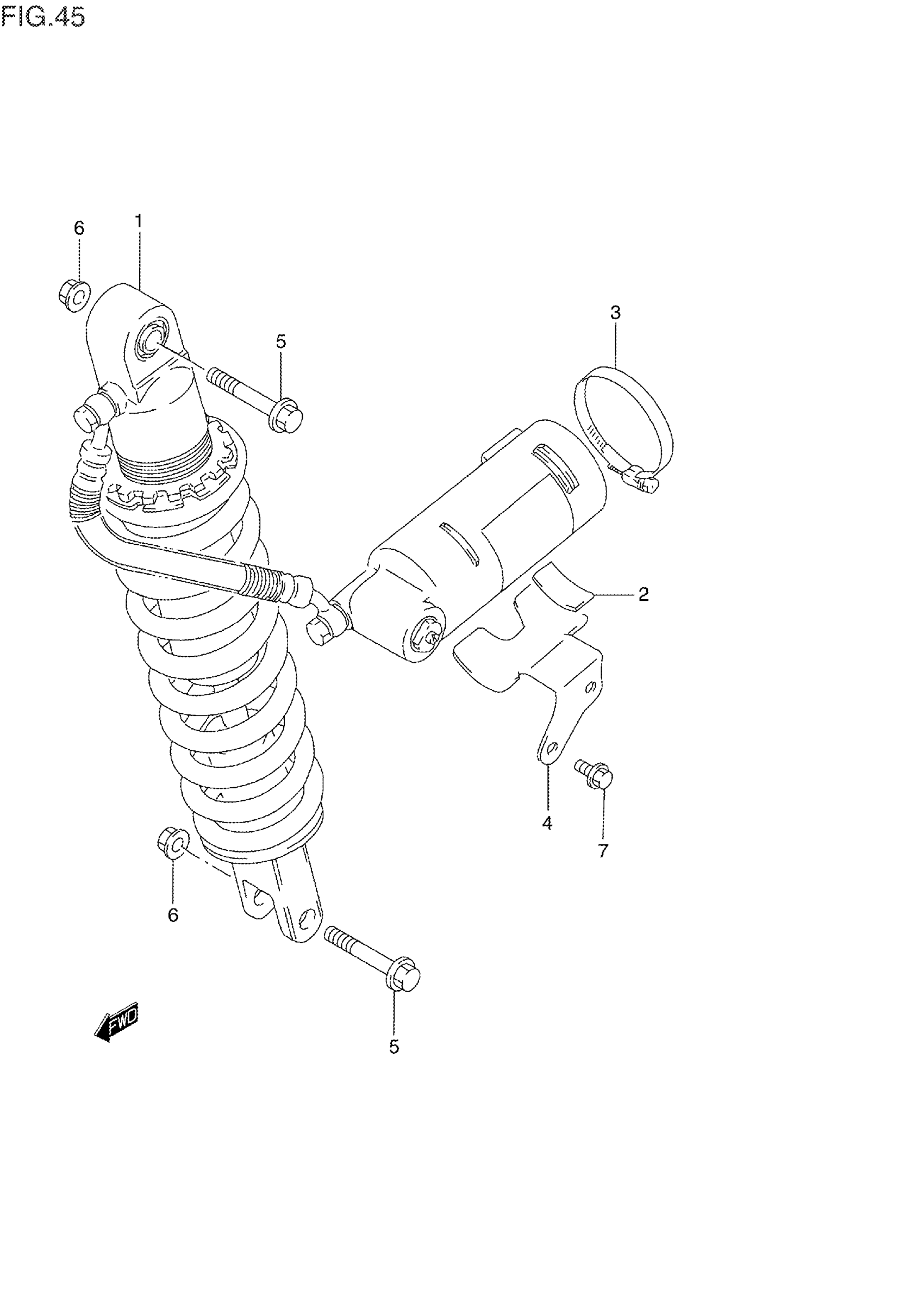

Suzuki DR250SES (1995) REAR SHOCK ABSORBER Diagram

#

Description
Price

1

ABSORBER ASSY,R | MODEL L This part replaces 62100-14D30-163.

62100-14D9V-1TS

Unavailable

1

ABSORBER ASSY,R | MODEL M This part replaces 62100-14D30-28W.

62100-14D9V-1TS

Unavailable

1

ABSORBER ASSY,R | MODEL N This part replaces 62100-14D70-28W.

62100-14D9V-1TS

Unavailable

1

ABSORBER ASSY, REAR SHOCK | MODEL P This part replaces 62100-14E60-28W.

62100-14E61-1TS

$1,604.31

1

ABSORBER ASSY, REAR SHOCK | MODEL R/S; Includes Item(s) 2 - 4 This part replaces 62100-14E60-1TS.

62100-14E61-1TS

$1,604.31

2

CUSHION, TANK This part replaces 62423-01C00.

53146-20C00

$7.05

3

CLAMP, TANK

09402-60502

Unavailable

4

BRACKET, TANK

62420-14D10

Unavailable

5

BOLT, LOWER (10X54) | MODEL L/M/NMODEL P/R/S This part replaces 62311-28C00.

62311-28E00

$6.19

5

BOLT, LOWER (L:48) | MODEL P/R/S

62648-14500

$4.34

6

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

7

BOLT | MODEL L/M/N/P This part replaces 01517-06108.

01550-06107

$2.80

7

BOLT | MODEL R/S This part replaces 01550-06103.

01550-0610A

$1.97
