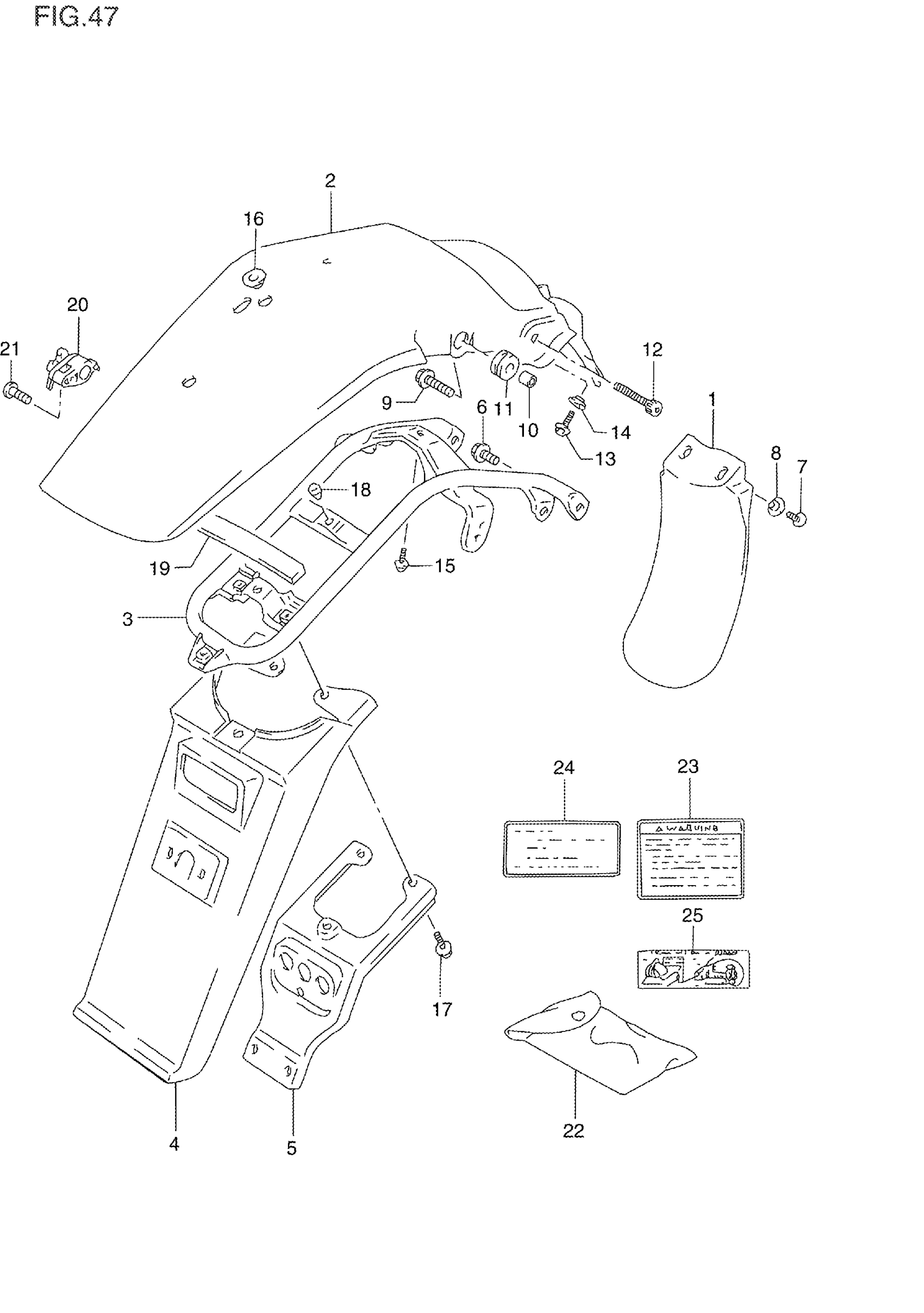

Suzuki DR250SES (1995) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER,FRONT

63112-14D00

Unavailable

2

BODY, REAR FENDER,REAR | MODEL L->63113-14D21-30HW/01177-0816809160-14032 This part replaces 63113-14D20-30H.

63113-14D23-30H

Unavailable

2

BODY, REAR FENDER,REAR | MODEL M This part replaces 63113-14D21-30H.

63113-14D23-30H

Unavailable

2

BODY, REAR FENDER,REAR | MODEL N/P/R This part replaces 63113-14D22-30H.

63113-14D23-30H

Unavailable

2

BODY, REAR FENDER,REAR | MODEL S

63113-14D23-30H

Unavailable

3

REINFORCEMENT, REAR FENDER

63120-14D11

Unavailable

4

EXTENSION, REAR FENDER

63311-03D20

Unavailable

5

REINFORCEMENT, EXTENSION | MODEL L/M This part replaces 63320-03D01.

63320-03D03

Unavailable

5

REINFORCEMENT, EXTENSION | MODEL N/P/R/S

63320-03D03

Unavailable

6

BOLT (8X12) This part replaces 09103-08291.

09103-08382

$3.33

7

SCREW | MODEL L/M/N/P This part replaces 02142-06125.

02142-0612A

$1.49

7

SCREW | MODEL R/S This part replaces 02142-06123.

02142-0612A

$1.49

8

WASHER | MODEL L/M/N/P This part replaces 09169-06051.

09169-06055

$2.27

8

WASHER | MODEL R/S This part replaces 09169-06045.

09169-06055

$2.27

9

BOLT, CENTER

09103-08292

Unavailable

10

SPACER This part replaces 09180-08030.

09180-08187

$2.65

11

FENDER SIDE CUS | MODEL L/M/N This part replaces 63191-14D00.

09320-12090

$1.91

11

FENDER SIDE CUS | MODEL P/R/S This part replaces 09320-12011.

09320-12090

$1.91

12

BOLT, REAR FRONT

09106-08105

$3.78

13

BOLT | MODEL L/M/N/P This part replaces 01517-06167.

01550-06167

$2.30

13

BOLT | MODEL R/S This part replaces 01550-06163.

01550-0616A

$1.97

14

WASHER

09169-06038

Unavailable

15

BOLT, REAR | MODEL L

09118-06102

Unavailable

15

BOLT, REAR | MODEL M/N/P

01177-08168

Unavailable

15

BOLT | MODEL R/S This part replaces 01580-08163.

01580-0816A

$3.30

16

WASHER | MODEL L This part replaces 09160-12004.

09160-12088

$2.00

16

WASHER | MODEL M/N/P/R/S This part replaces 09160-14032.

09160-14059

$2.65

17

BOLT | MODEL L/M/N/P This part replaces 01177-06166.

01580-0616A

$2.42

17

BOLT | MODEL R/S This part replaces 01580-06163.

01580-0616A

$2.42

18

CUSHION | MODEL L/M/N/P This part replaces 09321-06013.

09321-06036

$1.52

18

PLUG | MODEL R/S

76562-50D00

Unavailable

19

CUSHION, MUD FLAP LH This part replaces 63192-14D00.

63191-44A00

Unavailable

20

LOCK SET,HELMET This part replaces 95700-03810.

95700-03811

$75.97

21

SCREW | MODEL L/M/N/P This part replaces 02112-05125.

02112-0512A

$1.49

21

SCREW | MODEL R/S This part replaces 02112-05123.

02112-0512A

$1.49

22

TOOL ASSY | MODEL L/M/N/P This part replaces 09800-20039.

09800-21084

$41.57

22

TOOL ASSY | MODEL R/S

09800-21024

Unavailable

23

LABEL,GENERAL W This part replaces 68319-15D00.

68319-33E02

$7.25

24

LABEL, CAUTION STARTING | MODEL L/M/N/P/R

68393-14D10

Unavailable

25

LABEL, PIPING DIAGRAM | CALIFORNIA ONLY

68387-15D00

Unavailable

26

LABEL, TIRE AIR PRESSURE | DRAWING NOT SHOWN

68332-14D00

Unavailable

27

MANUAL, OWNER'S | MODEL L

99011-15D70-03A

Unavailable

27

MANUAL, OWNER'S | MODEL M

99011-15D71-03A

Unavailable

27

MANUAL, OWNER'S | MODEL N

99011-15D72-03A

Unavailable

27

MANUAL, OWNER'S | MODEL P

99011-15D80-03A

Unavailable

27

MANUAL, OWNER'S | MODEL R

99011-15D81-03A

Unavailable

27

MANUAL, OWNER'S | MODEL SDRAWING NOT SHOWN

99011-15D82-03A

Unavailable
