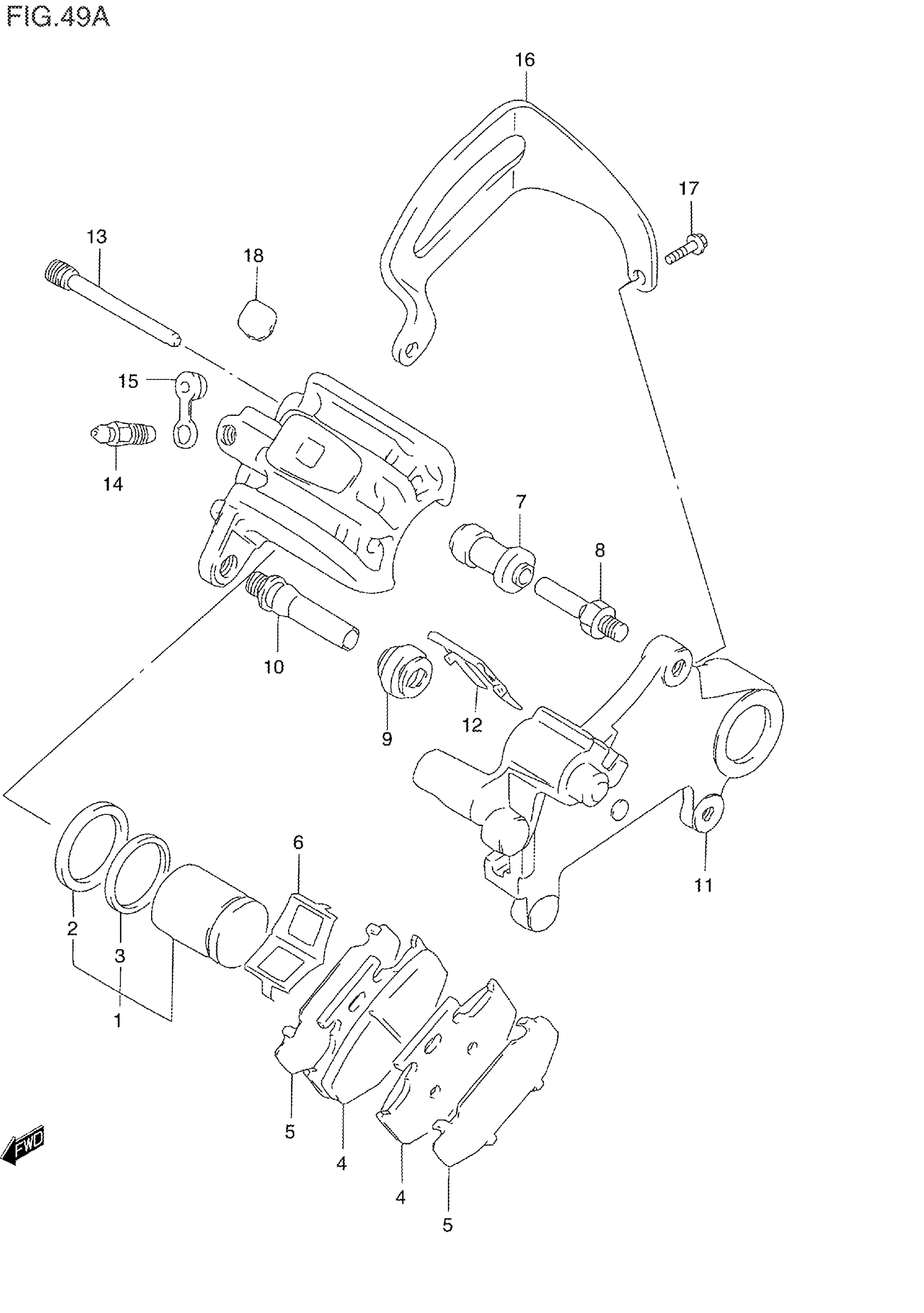

Suzuki DR250SES (1995) REAR CALIPER (MODEL N/P) Diagram

#

Description
Price

CALIPER ASSY, REAR | Includes Item(s) 1 - 15

69100-15D10

Unavailable

1

PISTON SET

69100-03810

$44.77

2

SEAL SET, PISTON This part replaces 59107-17C00.

69100-13810

$9.61

3

SEAL, DUST

59108-17C00

Unavailable

4

PAD SET This part replaces 69140-15D00.

69100-15810

$66.32

5

SHIM

69132-28C00

$9.47

6

SPRING

59315-27C10

$11.68

7

BOOT

59386-13A00

$7.95

8

PIN

59382-14500

$8.95

9

BOOT

59303-14500

$5.52

10

PIN

59305-27C00

$23.48

11

BRACKET

69351-05D00

Unavailable

12

RETAINER

69113-43D00

$8.83

13

PIN

59345-14600

$16.25

14

BLEEDER

59121-01A00

$8.73

15

CAP

59122-01A00

$4.34

16

GUARD, CALIPER

69725-27C20

Unavailable

17

BOLT

01547-06107

$1.65

18

COVER, CALIPER BODY

69171-14D00

Unavailable

19

REFER TO FIG.49B (I- 6) FOR

SPECIAL NOTE

Unavailable
