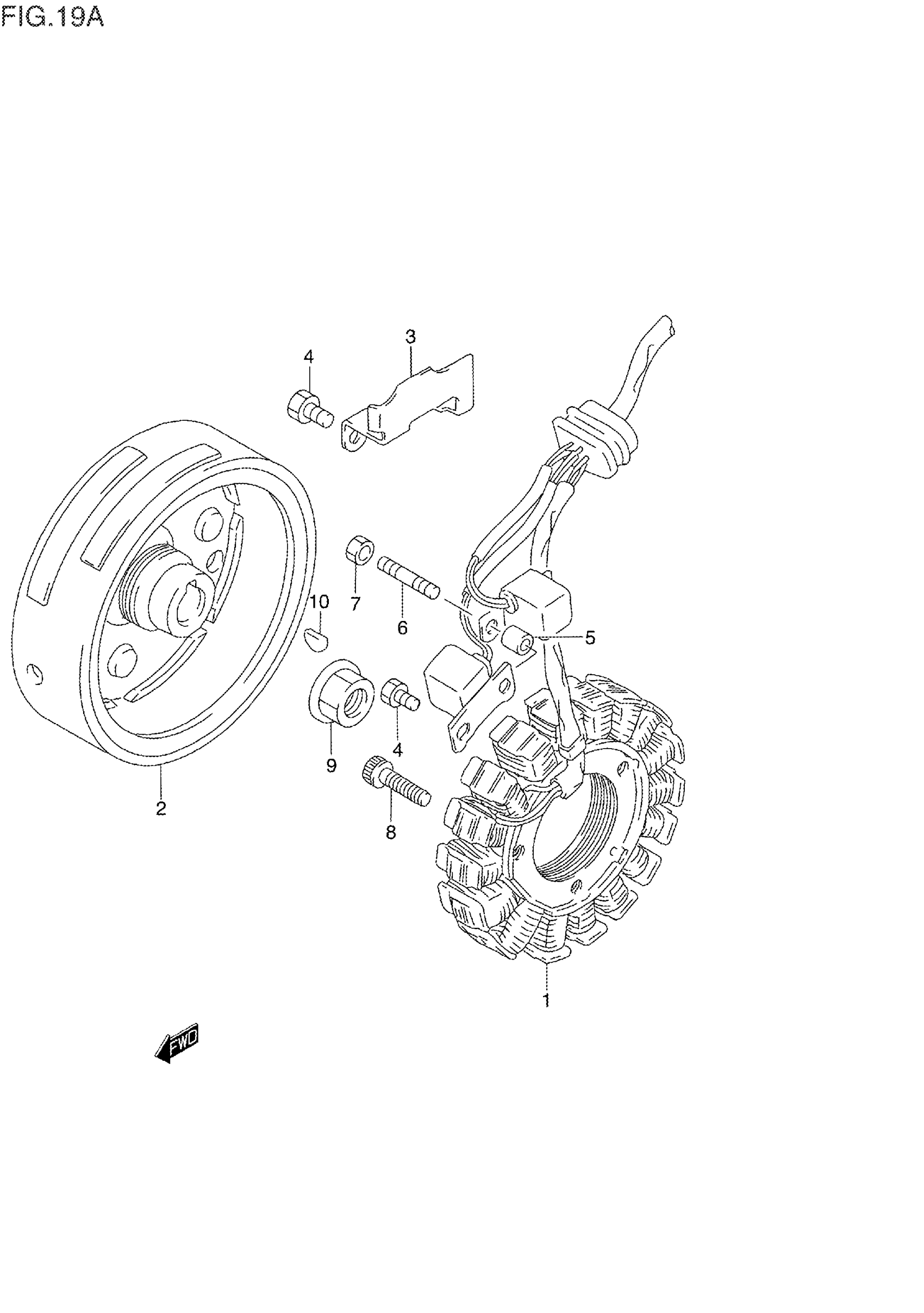

Suzuki DR250SES (1995) MAGNETO (MODEL P/R/S) Diagram

#

Description

Price

1

STATOR ASSY This part replaces 32101-15D01.

32101-15D02

$677.32

2

ROTOR

32102-15D00

Unavailable

3

CLAMP, MAGNETO LEAD WIRE

32371-15D00

Unavailable

4

BOLT (5X10)

09100-05019

$1.93

5

SPACER This part replaces 09180-05009.

09180-05053

Unavailable

6

STUD BOLT (L:18)

09108-05014

Unavailable

7

NUT | MODEL P This part replaces 08310-11057.

08310-00057

$1.84

7

NUT | MODEL R/S This part replaces 08310-00053.

08310-0005A

$1.84

8

BOLT | MODEL P This part replaces 07110-06257.

07130-06257

$3.16

8

BOLT | MODEL R/S This part replaces 07130-06253.

07130-0625B

$3.04

9

NUT

09159-14015

$4.77

10

KEY | MODEL P/R This part replaces 08341-31049.

09420-04008

$3.42

10

KEY | MODEL S

09420-04008

$3.42
