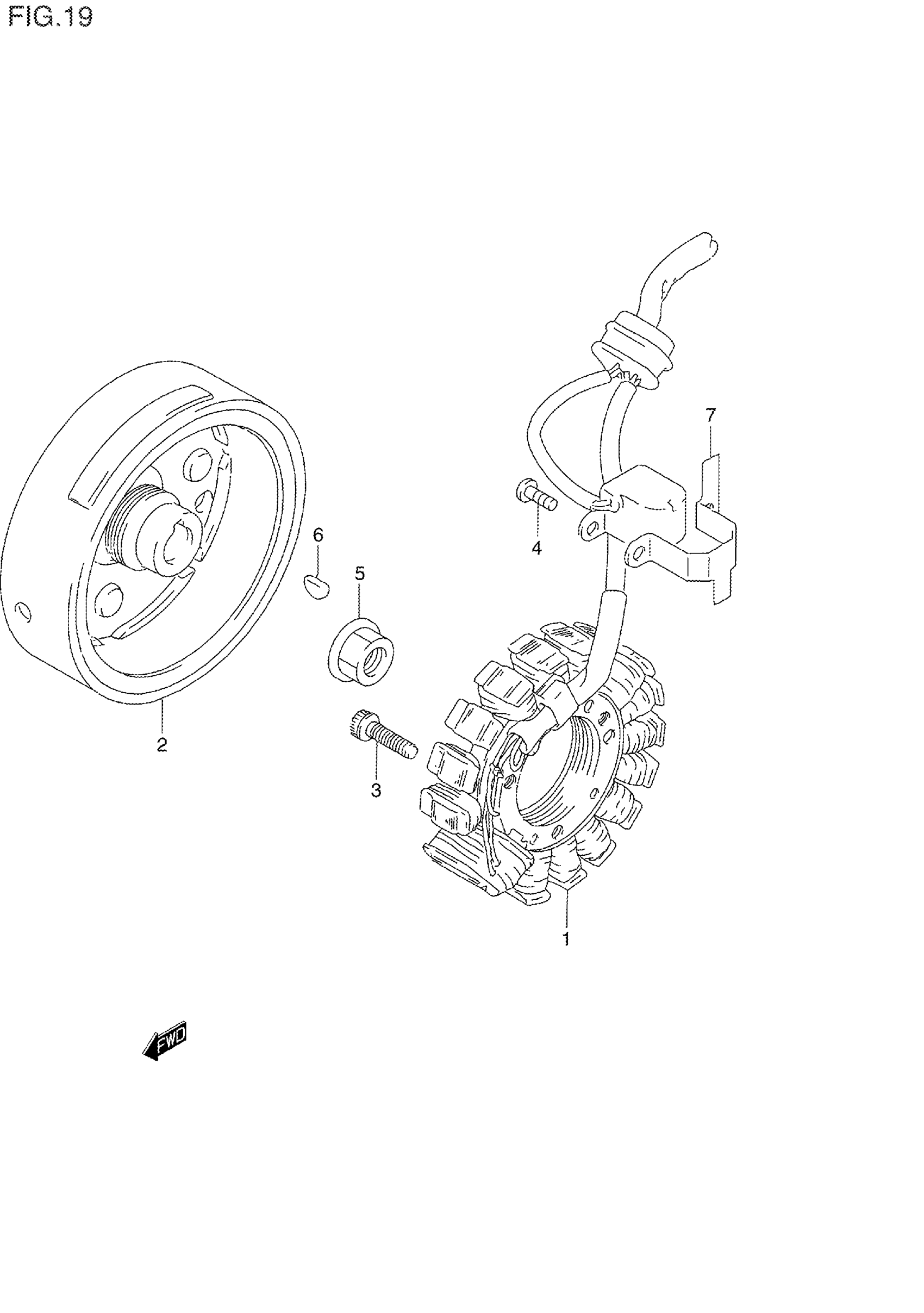

Suzuki DR250SES (1995) MAGNETO (MODEL L/M/N) Diagram

#

Description

Price

1

STATOR ASSY

32101-14D10

Unavailable

2

ROTOR This part replaces 32102-14D10.

32102-14D00

Unavailable

3

BOLT This part replaces 07110-06257.

07130-06257

$2.90

4

SCREW This part replaces 02112-05108.

02112-05107

$1.43

5

NUT

09159-14015

$5.17

6

KEY This part replaces 08341-31049.

09420-04008

$3.08

7

CLAMP, MAGNETO PULSER LEAD This part replaces 32371-14D00.

32371-14D01

$6.15

8

REFER TO FIG.19A(E-4) FOR

SPECIAL NOTE

Unavailable
