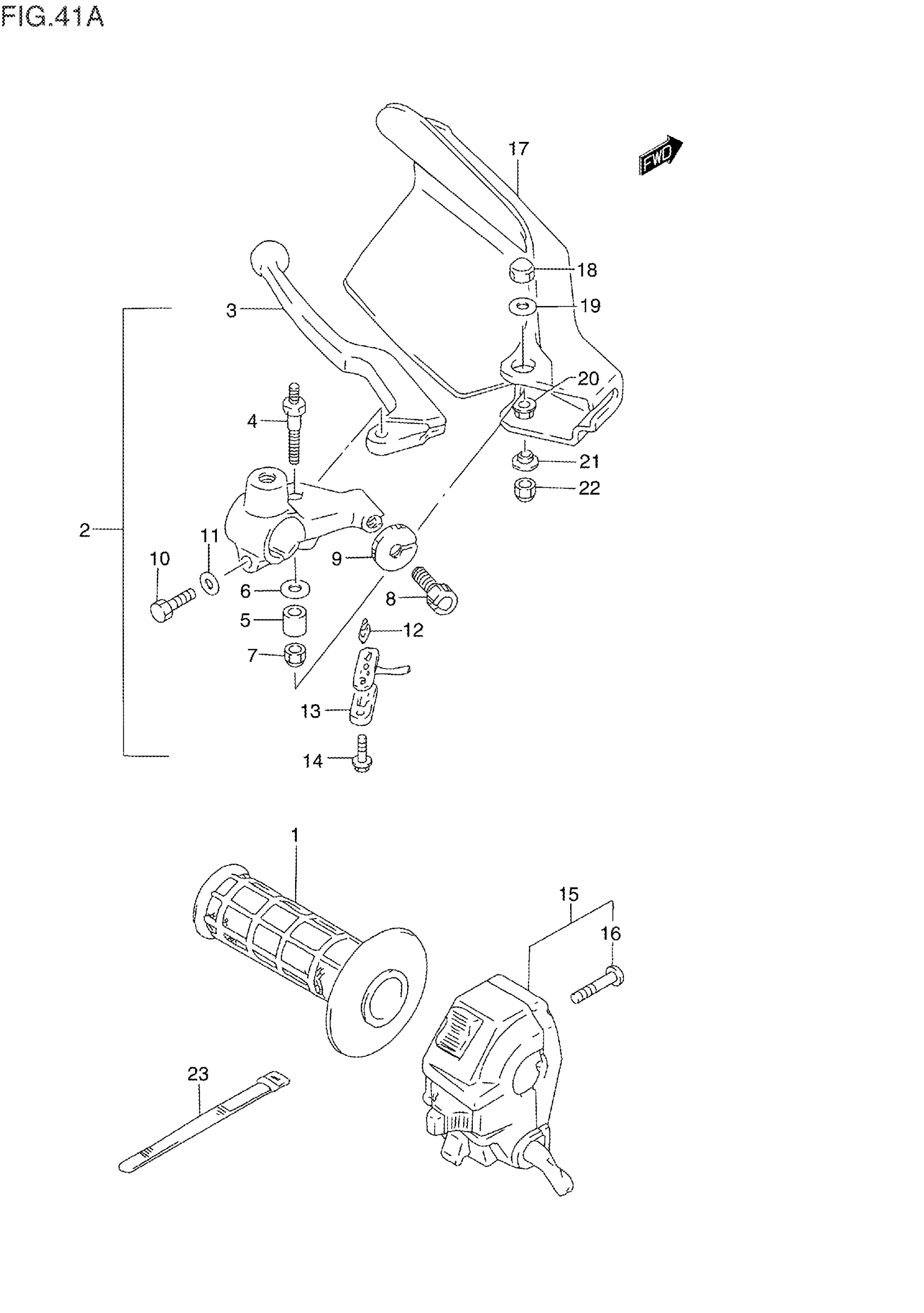

Suzuki DR250SES (1995) LEFT HANDLE SWITCH (MODEL P/R/S) Diagram

#

Description
Price

1

GRIP LH

57211-27C00

$11.25

2

LEVER ASSY, CLUTCH | MODEL P This part replaces 57500-15D10.

57500-15D11

Unavailable

2

LEVER ASSY, CLUTCH | MODEL R/S; Includes Item(s) 3 - 14

57500-15D11

Unavailable

3

LEVER | MODEL P/R This part replaces 57620-15D10.

57620-15D11

$22.36

3

LEVER | MODEL S

57620-15D11

$22.36

4

BOLT This part replaces 57531-44B00.

57531-44B01

$7.07

5

SPACER

57532-44B00

$3.86

6

WASHER

57533-44B00

Unavailable

7

.NUT This part replaces 08319-21065.

08319-2106B

$2.31

8

ADJUSTER

57441-44400

$5.91

9

NUT

57442-44B00

$14.00

10

BOLT | MODEL P/R

01204-06204

$2.97

10

BOLT | MODEL S

01500-06207

$1.99

11

.WASHER | MODEL P/R This part replaces 08322-21064.

08322-0106B

$2.24

11

WASHER | MODEL S

08322-01067

$1.86

12

CONTACT

57465-18601

$3.97

13

COVER

57481-33010

$5.50

14

SCREW

57484-49110

$2.25

15

SWITCH ASSY,HAN This part replaces 37400-03D12.

37400-15D21

$140.28

16

.SCREW This part replaces 02112-05305.

02112-0530B

$1.45

17

COVER,KNUCKLE,L This part replaces 57541-31D00-0NF.

57541-31D30-0NF

Unavailable

18

NUT, LICENSE HOLDER | MODEL P This part replaces 08313-11067.

08313-10067

$1.83

18

NUT | MODEL R/S This part replaces 08313-11063.

08313-1006A

$1.83

19

WASHER, UPPER

09160-06066

$1.89

20

WASHER

09160-06019

$1.38

21

WASHER

09169-06040

$1.94

22

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

23

BAND

09407-12402

$2.80
