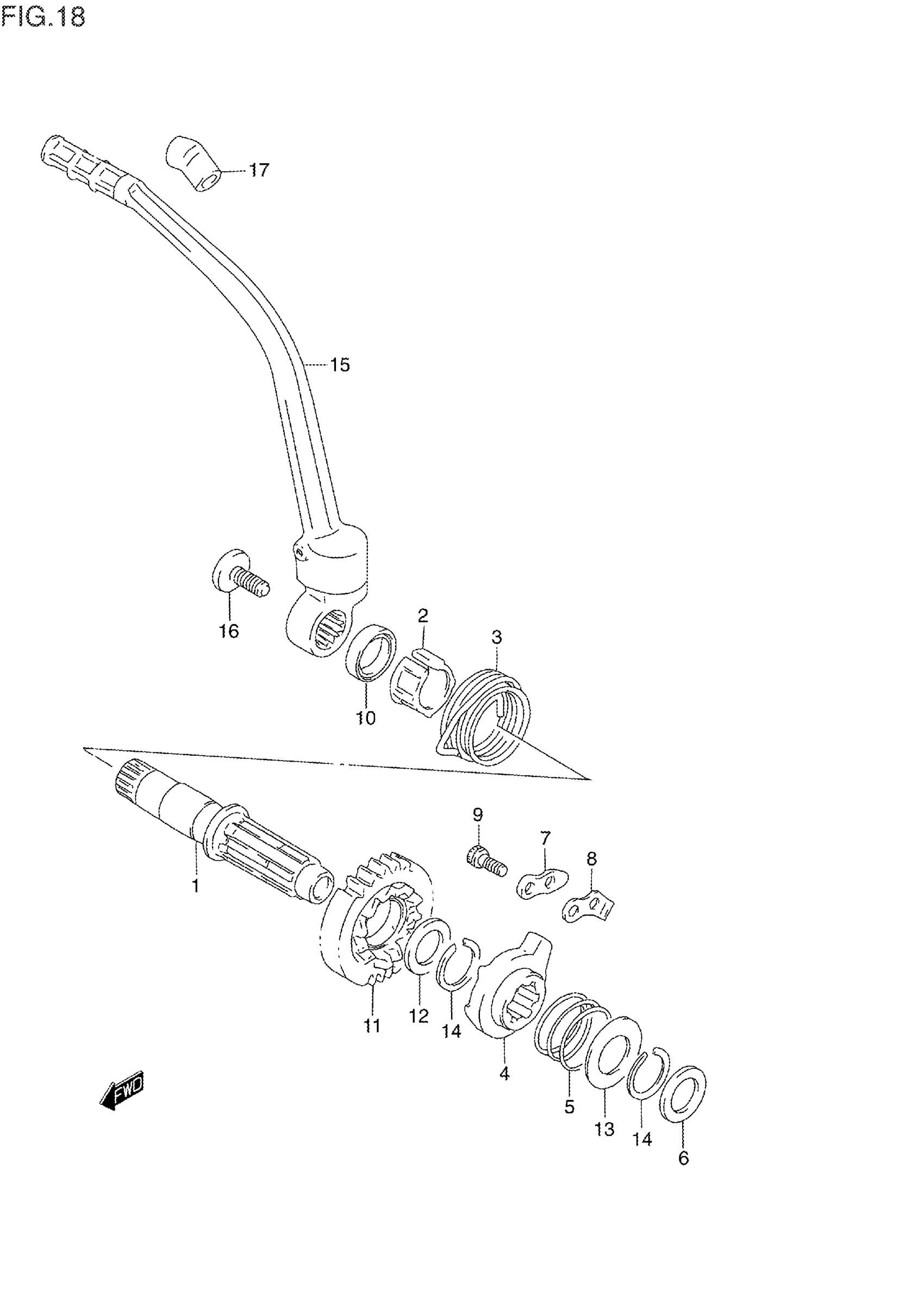

Suzuki DR250SES (1995) KICK STARTER (MODEL L/M/N) Diagram

#

Description
Price

1

SHAFT, KICK STARTER This part replaces 26211-14D02.

26211-14D03

$108.15

2

GUIDE, SPRING

26221-22A00

$7.46

3

SPRING

09448-50001

$10.68

4

STARTER, KICK | MODEL L/M

26231-22A10

$63.88

4

STARTER, KICK | MODEL N This part replaces 26231-14D20.

26231-14D21

$56.05

5

SPRING

09440-32002

$2.27

6

WASHER (17X26X1) This part replaces 08211-17261.

09181-17167

$2.96

7

GUIDE, KICK STARTER

26232-14500

$7.27

8

STOPPER, KICK STARTER

26233-14500

$3.97

9

BOLT This part replaces 09106-06071.

07130-0612A

$2.50

10

OIL SEAL (20X27X6)

09283-20044

$6.02

11

GEAR, KICK STARTER (NT:23) | MODEL L/M->26240-14D20,W/26231-14D20 This part replaces 26240-14D10.

26240-14D20

$117.48

11

GEAR, KICK DRIVE (NT:23) | MODEL N

26240-14D20

$117.48

12

WASHER (22X28X1.0) This part replaces 08211-22281.

09181-22139

$3.48

13

WASHER (22X36X1.0) This part replaces 08211-22361.

09181-22251

$3.78

14

CIRCLIP

09380-22006

$3.10

15

LEVER ASSY,KICK | MODEL L This part replaces 26300-14D03.

26300-14D11

Unavailable

15

LEVER ASSY,KICK | MODEL M This part replaces 26300-15D00.

26300-14D11

Unavailable

15

LEVER ASSY,KICK | MODEL N This part replaces 26300-14D10.

26300-14D11

Unavailable

16

BOLT (6X14)

09106-08102

$4.64

17

COVER, KICK LEVER | MODEL M/N

26312-14D00

$11.38
