Partiron

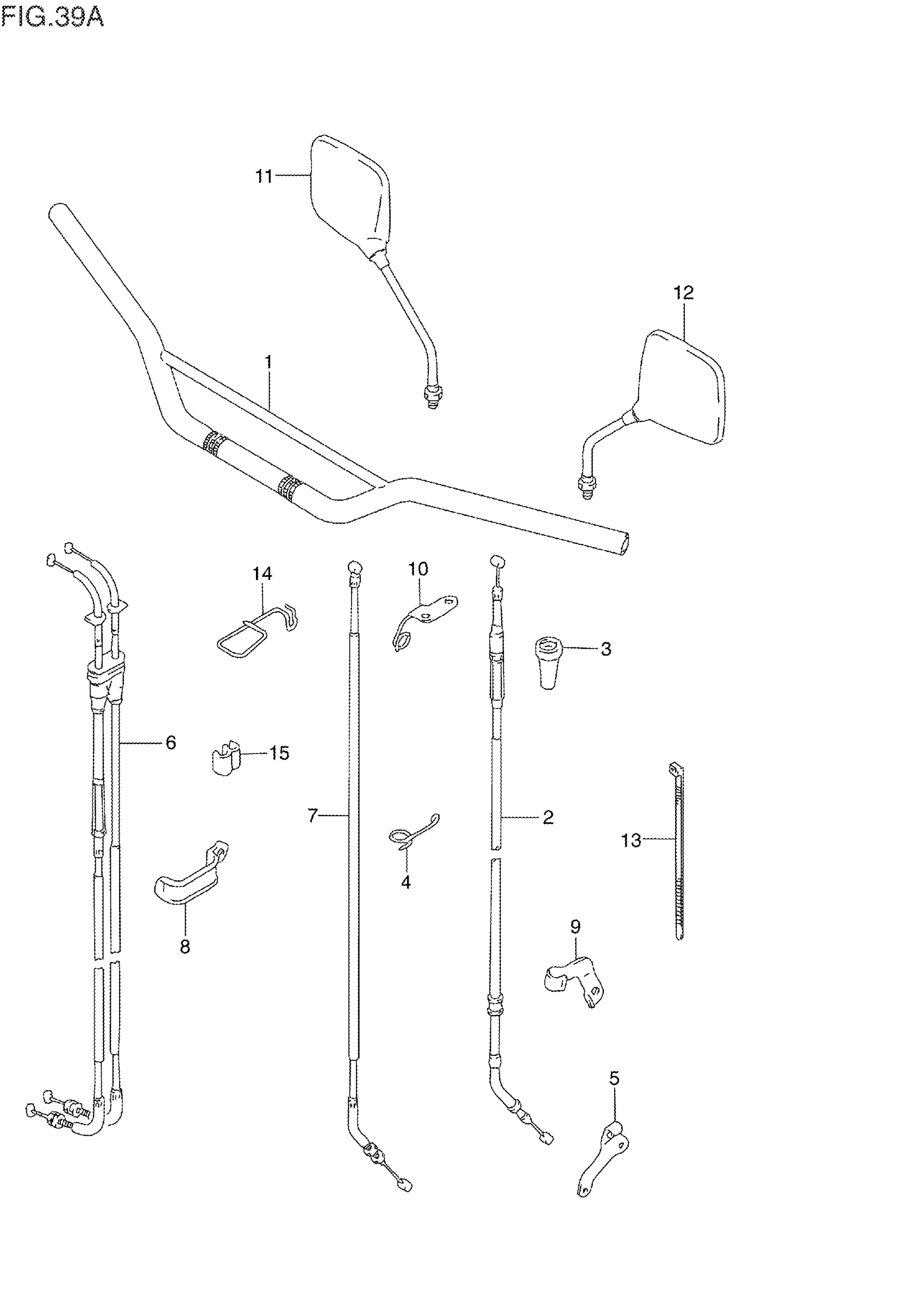

Suzuki DR250SES (1995) HANDLEBAR (MODEL N/P/R/S) Diagram

#

Description
Price

1

HANDLEBAR (BLACK) | MODEL N This part replaces 56110-14D30-291.

56110-14D11-291

Unavailable

1

HANDLEBAR (BLACK) | MODEL P/R/S

56110-14D11-291

Unavailable

2

CABLE ASSY, CLU | MODEL N/P This part replaces 58200-14D00.

58200-14D01

$40.40

2

CABLE ASSY, CLUTCH | MODEL R/S

58200-14D21

$26.22

3

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.22

4

GUIDE, CLUTCH CABLE

58294-15D00

Unavailable

5

STOPPER, CLUTCH CABLE

58634-14D00

$13.05

6

CABLE ASSY, THROTTLE | MODEL N

58300-14D30

Unavailable

6

CABLE ASSY, THROTTLE | MODEL P

58300-14D40

Unavailable

6

CABLE ASSY, THROTTLE | MODEL R

58300-14D50

Unavailable

6

CABLE ASSY, THROTTLE | MODEL S

58300-14E00

Unavailable

7

CABLE ASSY, DECOMP | MODEL N

58900-14D00

Unavailable

8

CLAMP This part replaces 09403-09307.

09403-09328

$1.77

9

CLAMP, CLUTCH CABLE | MODEL N/P This part replaces 58285-14D00.

58285-14D01

$4.01

9

CLAMP, CLUTCH CABLE | MODEL R/S

58285-14D01

$4.01

10

GUIDE, CABLE | MODEL N/P

58620-15D10

Unavailable

10

GUIDE,CLUTCH CA | MODEL R/S This part replaces 58620-15D20.

58620-15D2V

Unavailable

11

MIRROR ASSY,REA | MODEL N/P This part replaces 56500-01A50.

56500-13A11

$180.15

11

MIRROR ASSY,REA | MODEL R/S This part replaces 56500-13A10.

56500-13A11

$180.15

12

MIRROR ASSY,REA | MODEL N/P This part replaces 56600-01A50.

56600-13A11

$180.15

12

MIRROR ASSY,REA | MODEL R/S This part replaces 56600-13A10.

56600-13A11

$180.15

13

CLAMP, CLUTCH CABLE | MODEL N

09407-10404

$2.90

14

GUIDE, THROTTLE CABLE | MODEL N/P

58294-15D10

Unavailable

14

GUIDE, THROTTLE CABLE | MODEL R/S

58294-15D00

Unavailable

15

CLIP | MODEL P

09408-00066

$2.07
