1995 Suzuki DR250SES Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1995 Suzuki DR250SES, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

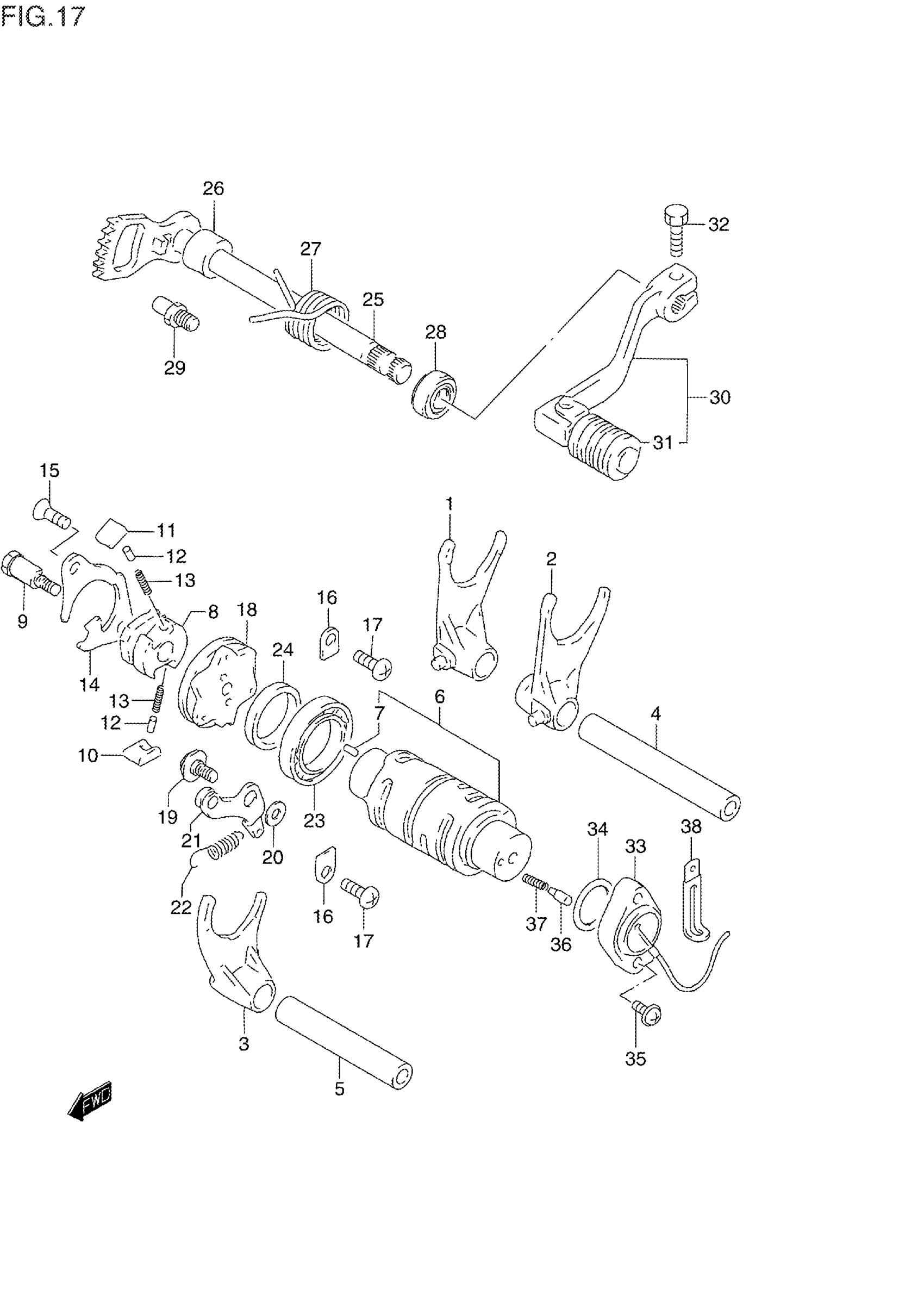

1995 Suzuki DR250SES Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFT NO.1 This part replaces 25211-14D01.

25211-14D02

1
Out of stock

2

FORK, GEAR SHIFT NO.2 This part replaces 25221-14D02.

25221-14D03

1
Out of stock

3

FORK, GEAR SHIFT NO.3 This part replaces 25231-14D01.

25231-14D02

1
Out of stock

4

SHAFT, GEAR FORK NO.1 This part replaces 25411-27C00.

25411-37F20

1
Out of stock

5

SHAFT, NO.2 (L:70)

25421-14D00

1
Out of stock

6

CAM | Includes Item(s) 7

25310-14D01

1
Out of stock

7

PIN (4X13.8)

04221-04089

2
Out of stock

8

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

1
Out of stock

9

PIN, SHIFT CAM DRIVEN GEAR

25312-38A00

1
Out of stock

10

PAWL, GEAR SHIFT NO.1

25323-34201

1
Out of stock

11

PAWL, GEAR SHIFT NO.2

25324-34201

1
Out of stock

12

PIN

09261-05003

2
Out of stock

13

SPRING

09440-04003

2
Out of stock

14

LIFTER, PAWL

25331-14D00

1
Out of stock

15

SCREW | MODEL L/M/N/P This part replaces 02122-06128.

02122-06127

2
Out of stock

15

SCREW | MODEL R/S This part replaces 02122-06123.

02122-0612A

2
Out of stock

16

RETAINER, SHIFT CAM BEARING

24741-21A00

2
Out of stock

17

SCREW | MODEL L/M/N/P This part replaces 02112-06128.

02112-06127

2
Out of stock

17

SCREW | MODEL R/S This part replaces 02112-06123.

02112-0612A

2
Out of stock

18

PLATE, STOPPER

25380-14D01

1
Out of stock

19

BOLT, SHIFT CAM STOPPER

09111-06041

1
Out of stock

20

WASHER

08211-06141

1
Out of stock

21

STOPPER, CAM

25350-14D01

1
Out of stock

22

SPRING

09443-09026

1
Out of stock

23

BEARING

08113-69050

1
Out of stock

24

WASHER (25x32x5.3)

09160-25068

1
Out of stock

25

SHAFT. GEAR SHIFTING | MODEL L/M/N This part replaces 25510-14D00.

25510-14D01

1
Out of stock

25

SHAFT, GEAR SHIFTING | MODEL P/R/S

25510-14D01

1
Out of stock

26

SPACER (12X20X15.3)

09180-12068

1
Out of stock

27

SPRING

09444-26004

1
Out of stock

28

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

29

STOPPER, ARM

25671-36A00

1
Out of stock

30

LEVER, GEAR SHIFTING | MODEL L/M/N

25600-14D04

1
Out of stock

30

LEVER, GEAR SHIFTING | MODEL P/R/S; Includes Item(s) 31

25600-15D20

1
Out of stock

31

.RUBBER, GEAR SHIFT PEDAL

25652-03D00

1
Out of stock

32

BOLT, GEAR SHIFT LINK | MODEL L/M This part replaces 09100-06100.

01500-0620A

1
Out of stock

32

BOLT, GEAR SHIFT LINK | MODEL N/P This part replaces 01107-06205.

01500-0620A

1
Out of stock

32

BOLT, GEAR SHIFT LINK | MODEL R/S This part replaces 01500-06203.

01500-0620A

1
Out of stock

33

BASE, NEUTRAL SWITCH

37720-47D00

1
Out of stock

34

O RING (D:2.4,ID:26.2)

09280-26005

1
Out of stock

35

2

$2.83

In stock

36

CONTACT

09209-05011

1
Out of stock

37

SPRING

09440-04010

1
Out of stock

38

CLAMP (L:60) | MODEL L/M/N This part replaces 09404-06422.

09404-06429

1
Out of stock

38

CLAMP | MODEL P/R This part replaces 09404-06402.

09404-06039

1
Out of stock

38

CLAMP | MODEL S

09404-06429

1
Out of stock
