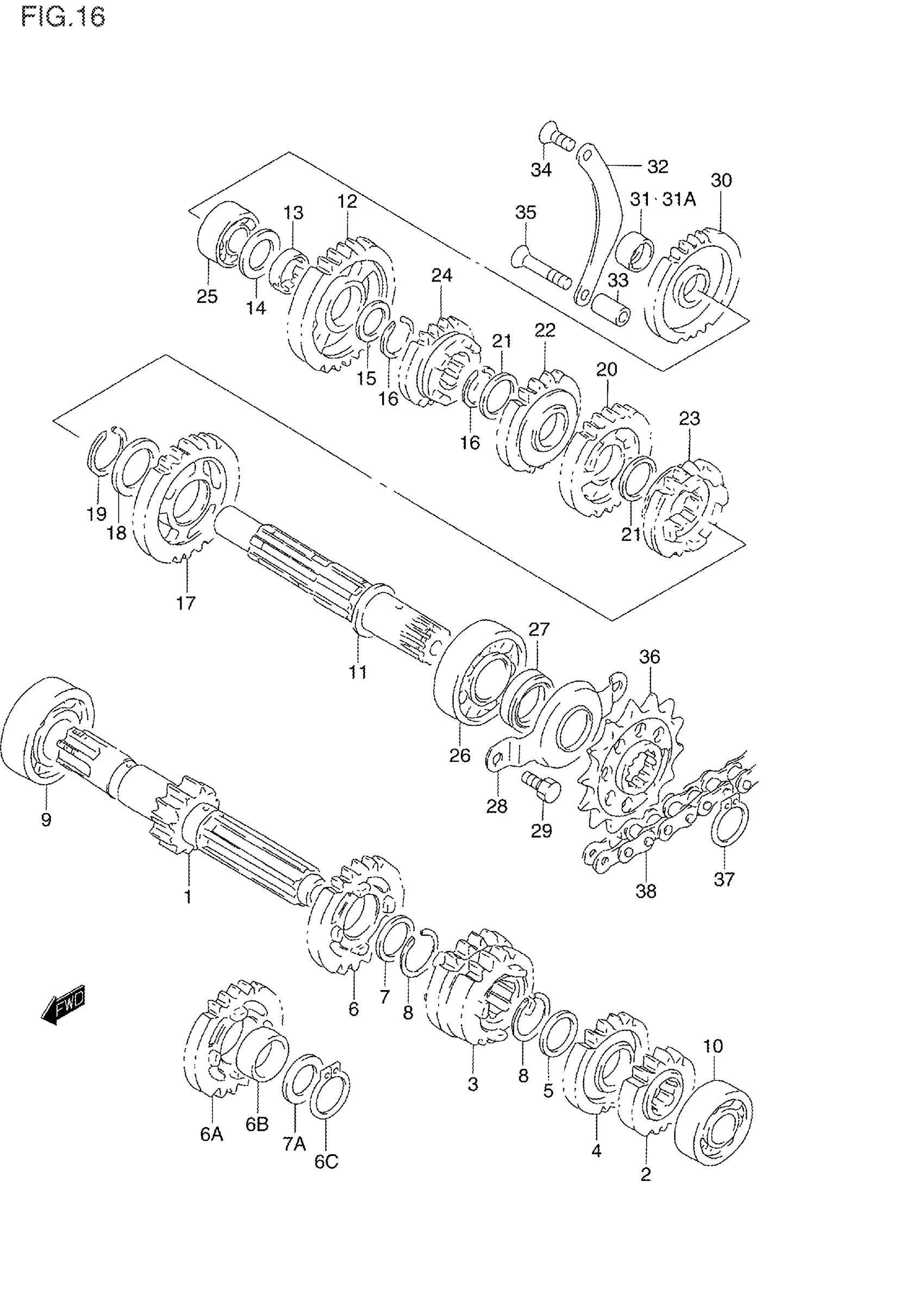

Suzuki DR250SES (1995) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:12) | MODEL L/M This part replaces 24120-14D01.

24120-14D03

Unavailable

1

COUNTERSHAFT (NT:12) | MODEL N/P/R/S

24120-14D03

Unavailable

2

GEAR, 2ND DRIVE (NT:15) This part replaces 24221-14D00.

24221-14D01

Unavailable

3

GEAR, 3/4TH DRIVE (NT:18/21) | MODEL L/M/N

24231-15D01

Unavailable

3

GEAR, 3/4TH DRIVE (NT:18/18) | MODEL P/R/S

24231-14D00

Unavailable

4

GEAR, 5TH DRIVE (NT:23) | MODEL L/M/N

24251-15D00

Unavailable

4

GEAR, 5TH DRIVE (NT:21) | MODEL P/R/S

24251-14D00

Unavailable

5

SHIM This part replaces 08211-22261.

09181-22111

$4.08

6

GEAR, 6TH DRIVE (NT:24) | MODEL L/M This part replaces 24260-15D00.

24261-15D02

Unavailable

6A

GEAR, 6TH DRIVE (NT:24) | MODEL N

24261-15D02

Unavailable

6A

GEAR, 6TH DRIVE (NT:23) | MODEL P/R/S

24261-14D02

Unavailable

6B

BUSH | MODEL N/P/R/S

09300-22008

$16.03

6C

CIRCLIP | MODEL N/P/R/S This part replaces 08331-31226.

08331-31229

$2.70

7

WASHER (22X28X1.0) | MODEL L/M This part replaces 08211-22281.

09181-22139

$3.78

7A

WASHER, 6TH DRIVE | MODEL N/P/R/S This part replaces 08211-22301.

09181-22167

$2.80

8

CIRCLIP | MODEL L/MMODEL N/P/R/S

09380-22006

$2.80

9

BEARING (20X52X15) | MODEL L/M/N/P This part replaces 09262-20065.

09262-20145

$40.98

9

BEARING (20X52X15) | MODEL R/S This part replaces 09262-20116.

09262-20145

$40.98

10

BEARING (17X40X12) | MODEL L/M/N This part replaces 09262-17018.

09262-17027

$37.62

10

BEARING, LH | MODEL P/R

09262-17027

$37.62

10

BEARING (17X40X12) | MODEL S This part replaces 09262-17018.

09262-17027

$37.62

11

DRIVESHAFT | MODEL L/M This part replaces 24130-14D11.

24130-14D14

$241.17

11

DRIVESHAFT | MODEL N/P/R/S This part replaces 24130-14D13.

24130-14D14

$241.17

12

GEAR, 1ST DRIVEN (NT:29) This part replaces 24311-14D00.

24311-14D01

Unavailable

13

BUSH

24312-14D00

$24.57

14

WASHER

08211-17322

$3.42

15

WASHER, 6TH DRIVE This part replaces 08211-22301.

09181-22167

$2.80

16

CIRCLIP

09380-22006

$2.80

17

GEAR, 2ND DRIVEN (NT:26)

24320-14D00

Unavailable

18

WASHER, 5TH DRIVE This part replaces 08211-25341.

09181-25167

$2.85

19

CIRCLIP

09380-25010

$2.80

20

GEAR, 3RD DRIVEN (NT:23) | MODEL L/M This part replaces 24331-15D00.

24331-15D01

Unavailable

20

GEAR, 3RD DRIVEN (NT:23) | MODEL N

24331-15D01

Unavailable

20

GEAR, 3RD DRIVEN (NT:24) | MODEL P/R/S

24331-14D01

Unavailable

21

WASHER (22X28X1.0) This part replaces 08211-22281.

09181-22139

$3.78

22

GEAR, 4TH DRIVEN (NT:21) | MODEL L/M/N

24341-15D00

Unavailable

22

GEAR, 4TH DRIVEN (NT:20) | MODEL P/R/S

24341-14D00

Unavailable

23

GEAR, 5TH DRIVEN (NT:19) | MODEL L/M/N

24351-15D00

Unavailable

23

GEAR, 5TH DRIVEN (NT:20) | MODEL P/R/S This part replaces 24351-14D00.

24351-14D01

Unavailable

24

GEAR, 6TH DRIVEN (NT:17) | MODEL L/M/N

24361-15D00

Unavailable

24

GEAR, 6TH DRIVEN (NT:19) | MODEL P/R/S

24361-14D01

Unavailable

25

BEARING, RH

09267-17003

$98.20

26

BEARING, LH

09262-22024

$76.22

27

OIL SEAL

09283-22025

$12.69

28

HOLDER, OIL SEAL

24751-14D00

$9.97

29

BOLT | MODEL L/M/N/P This part replaces 01107-06126.

01500-0612A

$1.80

29

BOLT | MODEL R/S This part replaces 01500-06123.

01500-0612A

$1.80

30

GEAR, KICK IDLE (NT:27) | MODEL L/M/N

26261-14D10

$82.90

31

BUSH, KICK STARTER IDLE | MODEL L/M/N

26262-14D00

$16.07

31A

SPACER (17X25X10.5) | MODEL P/R/S

09180-17004

$7.20

32

RETAINER, KICK IDLE GEAR

26264-14D00

$14.73

33

.SPACER (6.5X12X21) This part replaces 09180-06229.

09180-06314

$4.62

34

SCREW | MODEL L/M/N/P

02122-06167

$1.45

34

SCREW | MODEL R/S This part replaces 02122-06163.

02122-0616A

$1.43

35

SCREW | MODEL L/M/N/P This part replaces 02122-06356.

02122-0635B

$3.62

35

SCREW | MODEL R/S This part replaces 02122-06353.

02122-0635B

$3.62

36

SPROCKET, ENGINE (NT:13) | MODEL L/M/N This part replaces 27511-14310.

27511-37F00

$23.59

36

SPROCKET,ENGINE | MODEL P/R/S This part replaces 27510-47D00.

27510-47D01

$57.48

37

CIRCLIP

09380-22012

$2.80

38

CHAIN, DRIVE | MODEL L/M/N This part replaces 27600-13A60-112.

27600-06C20-114

Unavailable

38

CHAIN, DRIVE (DID520V7x108LE) | MODEL P/R/S This part replaces 27600-05C10-108.

27600-01C10-108

Unavailable
