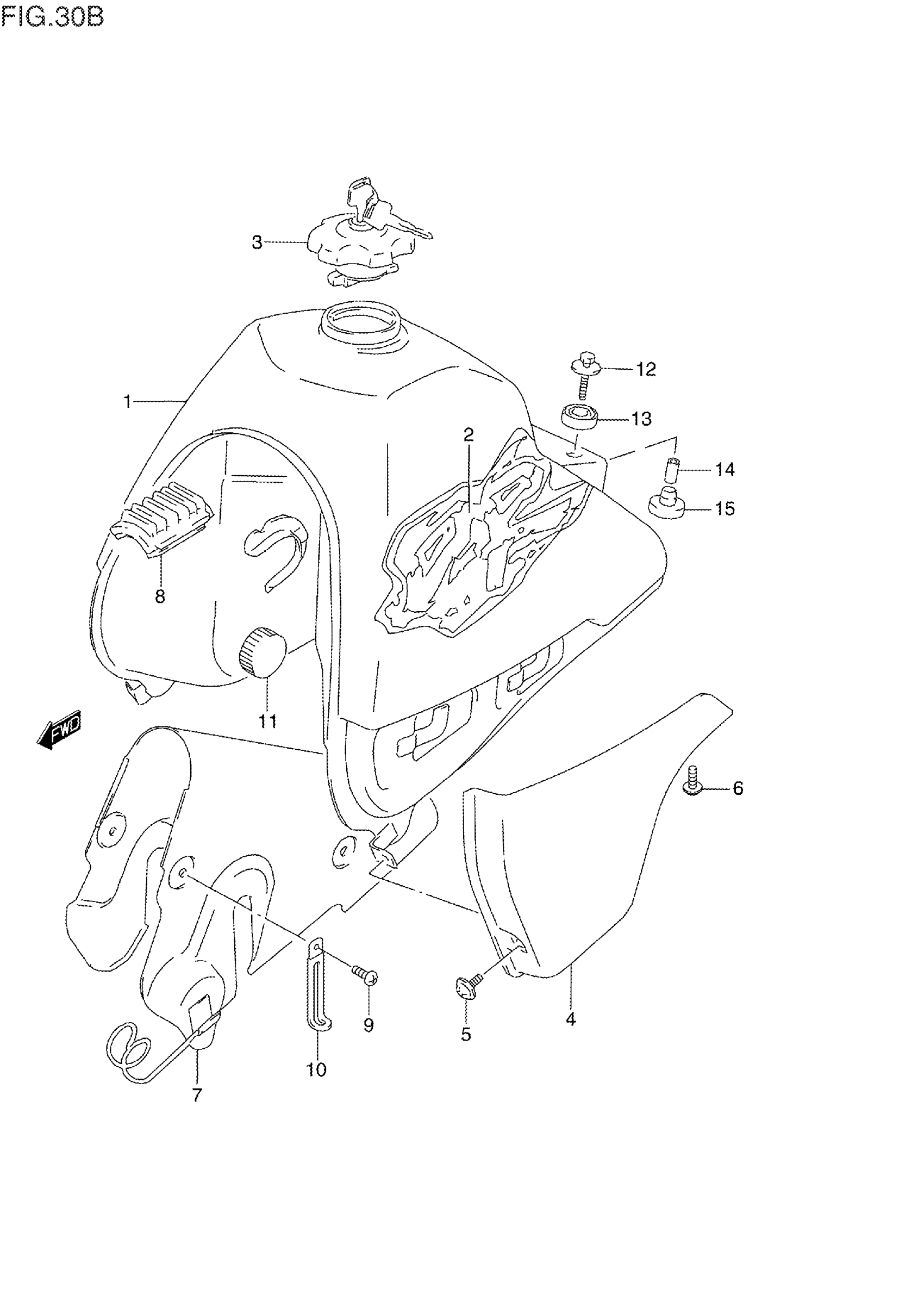

Suzuki DR250SES (1995) FUEL TANK (MODEL S) Diagram

#

Description
Price

1

TANK ASSY, FUEL (WHITE)

44100-14EL0-28X

Unavailable

1

TANK ASSY, FUEL (WHITE) | CALIFORNIA ONLY; Includes Item(s) 2

44100-14EK0-28X

Unavailable

2

EMBLEM SET, FUEL TANK

68120-14E00-D1R

Unavailable

3

CAP SET, FUEL TANK

44200-03811

Unavailable

3

CAP SET,FUEL TA | CALIFORNIA ONLY This part replaces 44200-05820.

44200-05822

$74.48

4

COVER, FUEL TANK RH (WHITE)

44171-15D00-30H

Unavailable

4

COVER, FUEL TANK LH (WHITE)

44181-15D00-30H

Unavailable

5

SCREW, FRONT

02142-06107

Unavailable

6

SCREW

09136-06002

$2.44

7

HEAT SHIELD, FUEL TANK

49131-14D20

Unavailable

7

HEAT SHIELD, FUEL TANK | CALIFORNIA ONLY

49130-15D30

Unavailable

8

CUSHION, FRONT UPPER

44541-15D01

Unavailable

9

BOLT

01560-05103

Unavailable

10

CLAMP This part replaces 09404-06202.

09404-06039

$1.74

11

CUSHION, FRONT

09329-10016

$3.10

12

BOLT, REAR

09116-06172

$2.50

13

CUSHION, UPPER

09320-14013

$2.11

14

SPACER This part replaces 09180-06072.

09180-06271

$2.35

15

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60
