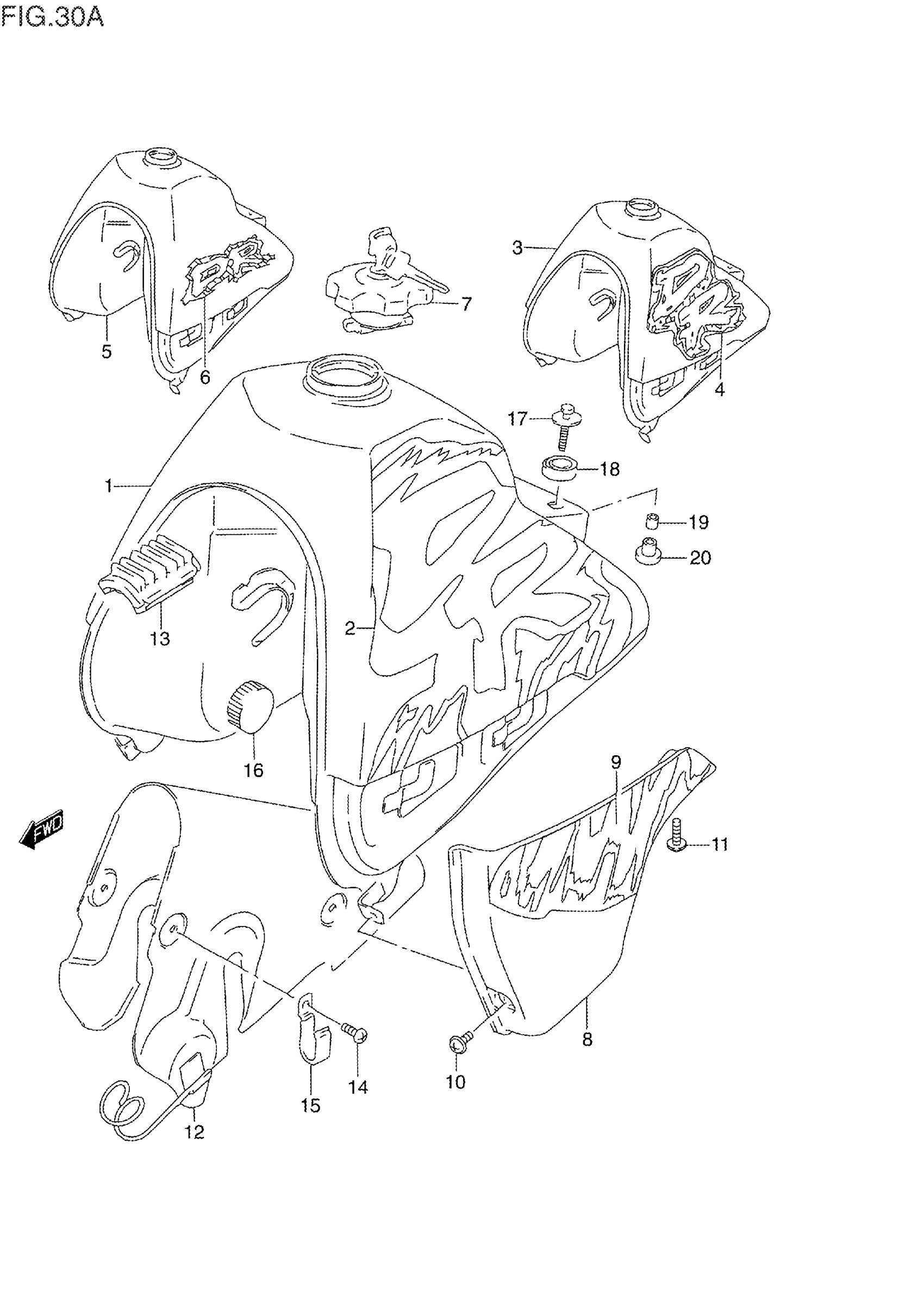

Suzuki DR250SES (1995) FUEL TANK (MODEL N/P/R) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 44100-14E10-28X.

44100-14E11-28X

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL N; Includes Item(s) 2 This part replaces 44100-14E00-28X.

44100-14E01-28X

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 68110-15D70-M79.

68110-15D71-M79

Unavailable

3

TANK ASSY, FUEL (WHITE) | MODEL P

44100-14E70-28X

Unavailable

3

TANK ASSY, FUEL (WHITE) | CALIFORNIA ONLY,MODEL P; Includes Item(s) 4

44100-14E60-28X

Unavailable

4

TAPE SET, FUEL TANK | MODEL P

68110-15E20-A4F

Unavailable

5

TANK ASSY, FUEL (WHITE) | MODEL R

44100-14EE0-28X

Unavailable

5

TANK ASSY, FUEL (WHITE) | CALIFORNIA ONLY,MODEL R; Includes Item(s) 6

44100-14ED0-28X

Unavailable

6

EMBLEM SET, FUEL TANK | MODEL R This part replaces 68110-15E40-1WN.

68120-12E00-1WN

Unavailable

7

CAP SET, FUEL TANK

44200-03811

Unavailable

7

CAP SET,FUEL TA | CALIFORNIA ONLY This part replaces 44200-05820.

44200-05822

$74.48

8

COVER, FUEL TANK RH (WHITE)

44171-15D00-30H

Unavailable

8

COVER, FUEL TANK LH (WHITE)

44181-15D00-30H

Unavailable

9

TAPE, TANK COVER RH | MODEL N

68115-15D00-N11

Unavailable

9

TAPE, TANK COVER LH | MODEL N

68116-15D00-N11

Unavailable

10

SCREW, FRONT | MODEL N/P

02142-06108

$2.45

10

SCREW, FRONT | MODEL R

02142-06107

Unavailable

11

SCREW

09136-06002

$2.44

12

HEAT SHIELD, FUEL TANK

49131-14D20

Unavailable

12

HEAT SHIELD, FUEL TANK | CALIFORNIA ONLY

49130-15D30

Unavailable

13

CUSHION, FRONT UPPER

44541-15D01

Unavailable

14

SCREW | MODEL N This part replaces 02142-05084.

02142-0508A

$1.49

14

BOLT | MODEL P This part replaces 01107-05108.

01500-0510B

$1.80

14

BOLT | MODEL R

01560-05103

Unavailable

15

CLAMP This part replaces 09404-05404.

09404-06039

$1.74

16

CUSHION, FRONT

09329-10016

$3.10

17

BOLT (6X30) This part replaces 09116-06153.

09116-06172

$2.50

18

CUSHION, UPPER

09320-14013

$2.11

19

SPACER This part replaces 09180-06072.

09180-06271

$2.35

20

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

21

REFER TO FIG.30B(F-8) FOR

SPECIAL NOTE

Unavailable
