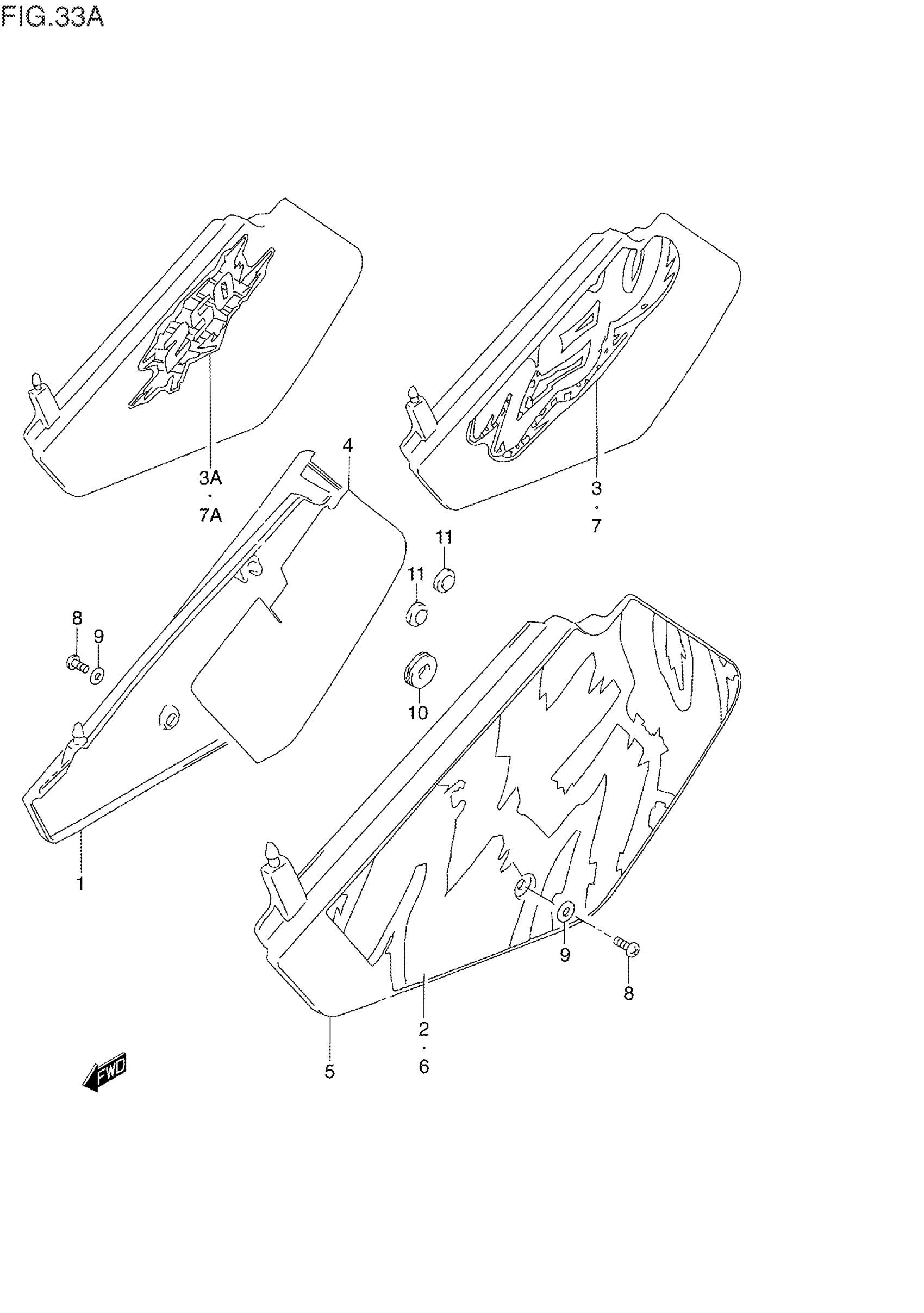

Suzuki DR250SES (1995) FRAME COVER (MODEL N/P/R) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE)

47111-14D00-30H

Unavailable

2

TAPE, FRAME COVER RH | MODEL N

68135-14D50-M82

Unavailable

3

EMBLEM, RH | MODEL P

68131-15E00-A4F

Unavailable

3A

EMBLEM, RH | MODEL R

68131-15E10-1YD

Unavailable

4

SHIELD, FRAME COVER RH

47166-14D00

Unavailable

5

COVER, FRAME LH (WHITE)

47211-15D00-30H

Unavailable

6

TAPE, FRAME COVER LH | MODEL N

68145-14D50-M82

Unavailable

7

EMBLEM, LH | MODEL P

68141-15E10-A4F

Unavailable

7A

EMBLEM, LH | MODEL R

68131-15E10-1YD

Unavailable

8

SCREW, SIDE | MODEL N This part replaces 09139-06073.

09139-06050

$4.73

8

SCREW | MODEL P/R

02142-06167

$1.49

9

WASHER This part replaces 09169-06028.

09169-06041

$2.20

10

CUSHION, REAR

09320-08029

$2.41

11

CUSHION, MUFFLER

09321-10018

$5.45

12

REFER TO FIG.33B(F-14) FOR

SPECIAL NOTE

Unavailable
