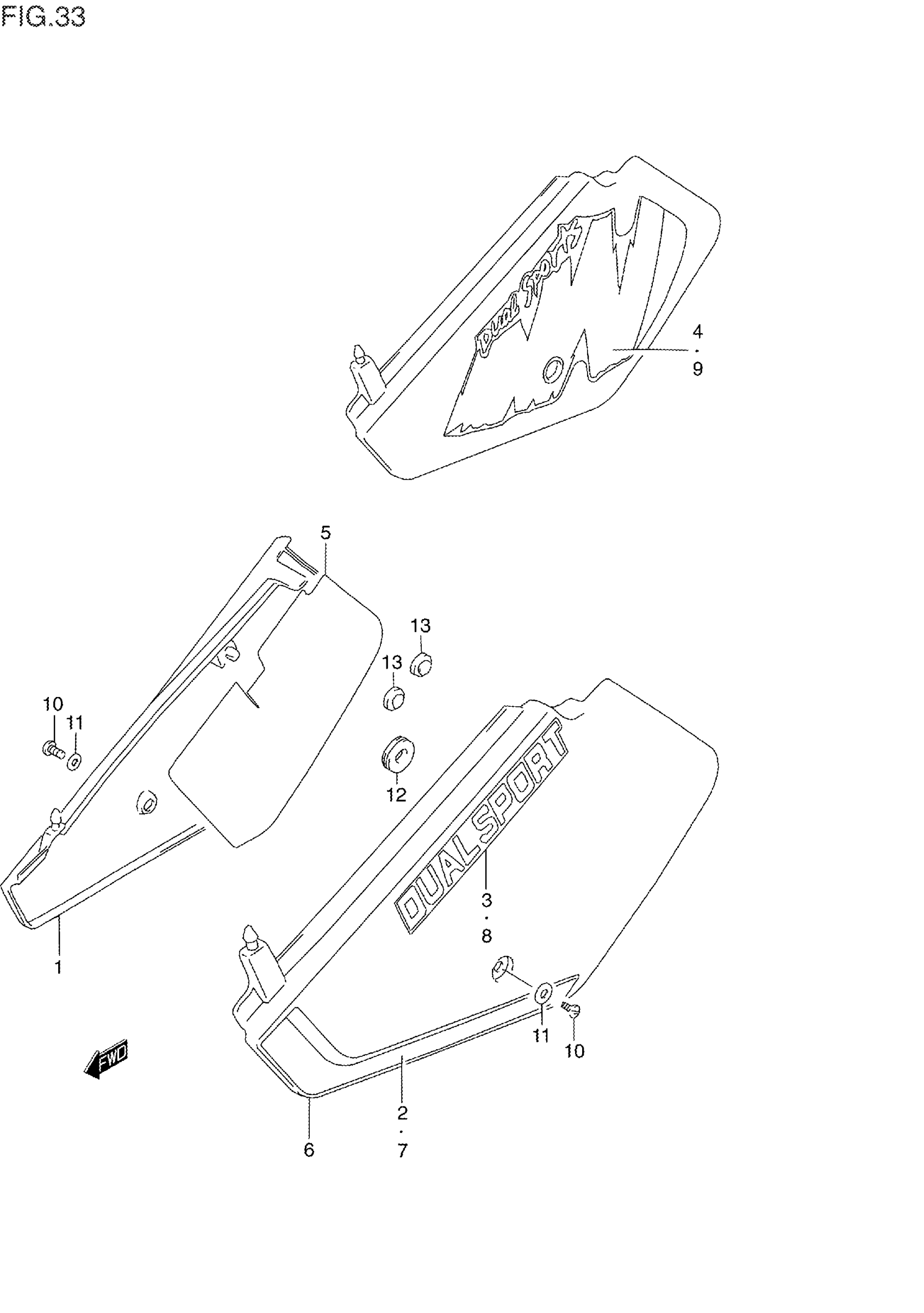

Suzuki DR250SES (1995) FRAME COVER (MODEL L/M) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE)

47111-14D00-30H

Unavailable

2

TAPE, FRAME COVER RH | MODEL L

68135-14D01-B26

Unavailable

3

EMBLEM | MODEL L

68131-14D00-8YM

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 68135-14D20-0WE.

68135-14D21-0WE

Unavailable

5

SHIELD, FRAME COVER RH

47166-14D00

Unavailable

6

COVER, FRAME LH (WHITE)

47211-15D00-30H

Unavailable

7

TAPE, FRAME COVER LH | MODEL L

68145-14D10-B26

Unavailable

8

EMBLEM | MODEL L

68131-14D00-8YM

Unavailable

9

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 68145-14D30-0WE.

68145-14D31-0WE

Unavailable

10

SCREW, SIDE This part replaces 09139-06059.

09139-06050

$4.73

11

WASHER This part replaces 09169-06028.

09169-06041

$2.20

12

CUSHION, REAR

09320-08029

$2.41

13

CUSHION, MUFFLER

09321-10018

$5.45

14

REFER TO FIG.33A(F-13) FOR

SPECIAL NOTE

Unavailable
