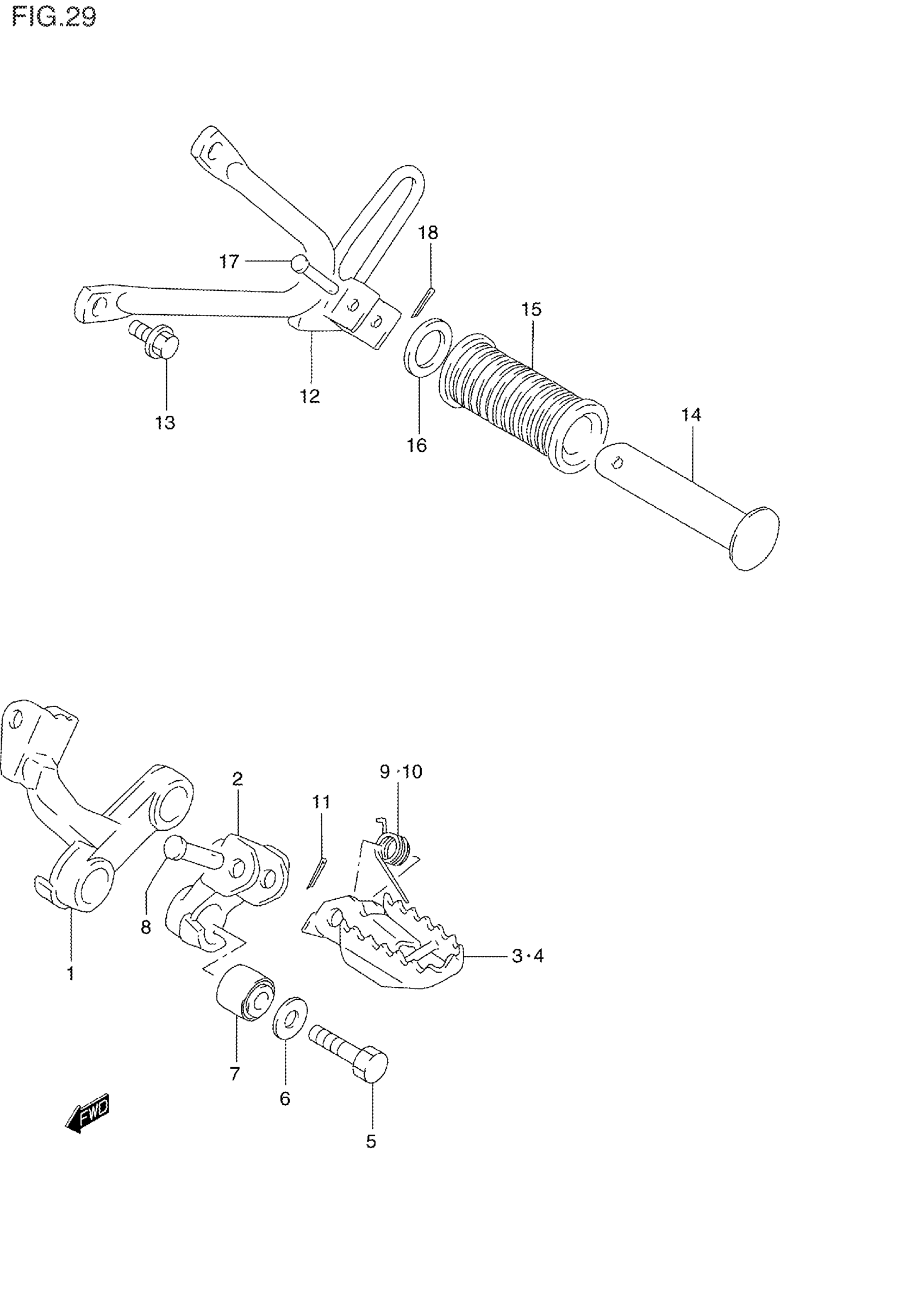

Suzuki DR250SES (1995) FOOTREST Diagram

#

Description
Price

1

BRACKET, FOOTREST RH (BLUE) | MODEL L/M/N

43510-15D00-0NF

Unavailable

1

BRACKET, FOOTREST RH (BLACK) | MODEL P/R/S

43510-15D00-019

Unavailable

2

BRACKET, FOOTREST LH (BLUE) | MODEL L/M/N

43520-15D00-0NF

Unavailable

2

BRACKET, FOOTREST LH (BLACK) | MODEL P/R/S

43520-15D00-019

Unavailable

3

FOOTREST,FRONT, | MODEL L/M/N This part replaces 43550-14D00-0NF.

43550-14D10

Unavailable

3

FOOTREST, FRONT RH (BLACK) | MODEL P

43550-44B00-019

Unavailable

3

FOOTREST,FRONT, | MODEL R/S This part replaces 43550-14D10-019.

43550-14D10

Unavailable

4

FOOTREST, FRONT LH | MODEL L/M/N This part replaces 43560-14D00-0NF.

43560-14D10

Unavailable

4

FOOTREST, FRONT LH (BLACK) | MODEL P

43560-44B00-019

Unavailable

4

FOOTREST, FRONT LH | MODEL R/S This part replaces 43560-14D10-019.

43560-14D10

Unavailable

5

BOLT, FOOTREST

09100-10283

Unavailable

6

WASHER, INNER | MODEL L/M

09160-10115

Unavailable

6

WASHER | MODEL N/P This part replaces 08322-21108.

08322-01107

$2.15

6

WASHER,10.5X22X | MODEL R/S This part replaces 09160-10119.

09160-10143

$2.34

7

BUSH

09319-10033

$6.83

8

PIN

09200-10013

$2.66

9

SPRING This part replaces 09448-15008.

09448-15008-XC0

Unavailable

10

SPRING, LH

09448-15004

$2.34

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

12

BRACKET, PILLION RH (BLACK)

43650-14D00-019

Unavailable

12

BRACKET, PILLION LH (BLACK)

43750-14D00-019

Unavailable

13

BOLT | MODEL L/M/N/P This part replaces 01127-08205.

01550-0820A

$2.23

13

BOLT | MODEL R/S This part replaces 01550-08203.

01550-0820A

$2.23

14

BAR, PILLION

43610-03001

$6.52

15

RUBBER, PILLION FOOTREST This part replaces 43612-33200.

43612-33210

$5.83

16

WASHER This part replaces 09160-19006.

09160-19024

$2.65

17

PIN | MODEL L/M/N/P/R

09200-06010

$1.72

17

PIN | MODEL S

09200-06033

$2.63

18

COTTER PIN | MODEL L/M/N This part replaces 04111-20208.

04111-2020A

$1.49

18

.COTTER PIN | MODEL P/R/S This part replaces 04111-20158.

04111-2015A

$1.49
