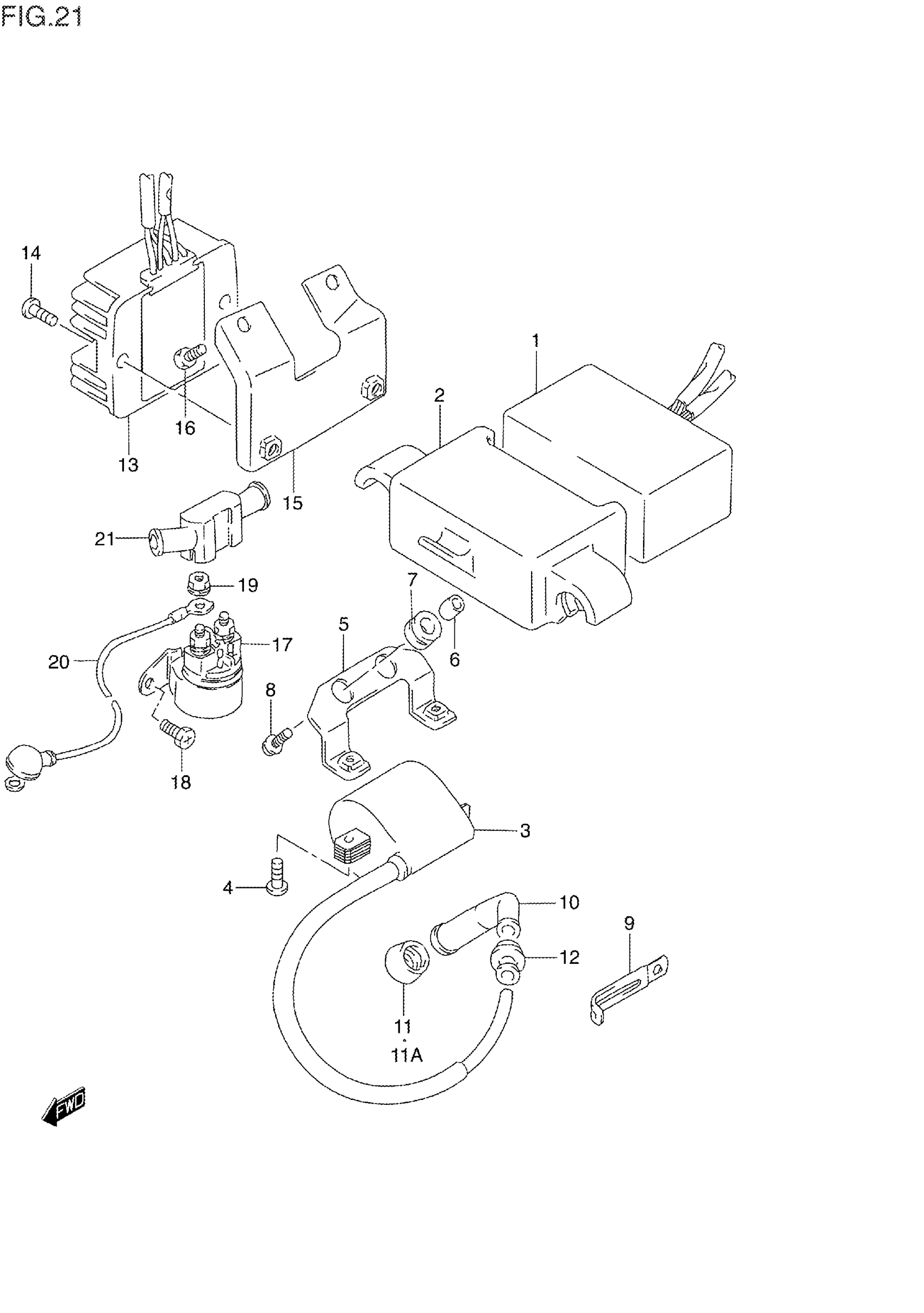

Suzuki DR250SES (1995) ELECTRICAL Diagram

#

Description
Price

1

CDI UNIT | MODEL L/M

32900-14D10

Unavailable

1

CDI UNIT | MODEL N This part replaces 32900-15D20.

32900-14D10

Unavailable

1

CDI UNIT | MODEL P/R/S

32900-15D00

Unavailable

2

CUSHION

32980-14D00

Unavailable

3

COIL ASSY,IGNIT This part replaces 33410-14D00.

33410-14D01

$116.75

4

SCREW | MODEL L/M/N/P This part replaces 02112-06206.

02112-0620A

$1.49

4

SCREW | MODEL R/S This part replaces 02112-06203.

02112-0620A

$1.49

5

BRACKET, IGNITION COIL

33416-14D00

Unavailable

6

SPACER This part replaces 09180-06027.

09180-06258

$1.81

7

CUSHION

09320-09036

$4.32

8

BOLT | MODEL L/M/N/P

01114-06166

Unavailable

8

BOLT | MODEL R/S This part replaces 01560-06163.

01560-0616A

Unavailable

9

CLAMP (L:50)

09404-06429

$1.83

10

CAP, SPARK PLUG

33510-43010

$24.99

11

SEAL, SPARK PLUG | MODEL L/M/N/P This part replaces 33541-24510.

33541-47D00

$7.83

11A

SEAL, SPARK PLUG | MODEL R/S

33541-47D00

$7.83

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

13

RECTIFIER This part replaces 32800-14D10.

32800-14D11

$297.98

14

SCREW | MODEL L/M/N/P This part replaces 02112-06164.

02112-0616A

$1.49

14

SCREW | MODEL R/S This part replaces 02112-06163.

02112-0616A

$1.49

15

BRACKET, RECTIFIER | MODEL L/M This part replaces 32831-14D00.

32831-14D03

Unavailable

15

BRACKET, RECTIFIER | MODEL N/P This part replaces 32831-14D01.

32831-14D03

Unavailable

15

BRACKET, RECTIFIER | MODEL R/S

32831-14D03

Unavailable

16

BOLT | MODEL L/M/N/P This part replaces 01107-06165.

01500-0616A

$1.78

16

BOLT | MODEL R/S This part replaces 01550-06163.

01550-0616A

$1.97

17

RELAY ASSY, STARTING MOTOR | MODEL P/R/S

31800-49100

$97.31

18

BOLT (6X10) | MODEL P

09128-06037

Unavailable

18

BOLT (6X10) | MODEL R/S

09128-06044

$1.49

19

NUT | MODEL P/R/S This part replaces 08361-35066.

08361-3506A

$1.80

20

WIRE, STARTING LEAD | MODEL P This part replaces 33810-15D01.

33850-00A01

Unavailable

20

WIRE, STARTING MOTOR LEAD | MODEL R/S

33850-00A01

Unavailable

21

CAP, STARTER RELAY TERMINAL | MODEL P/R/S

31861-24500

Unavailable
