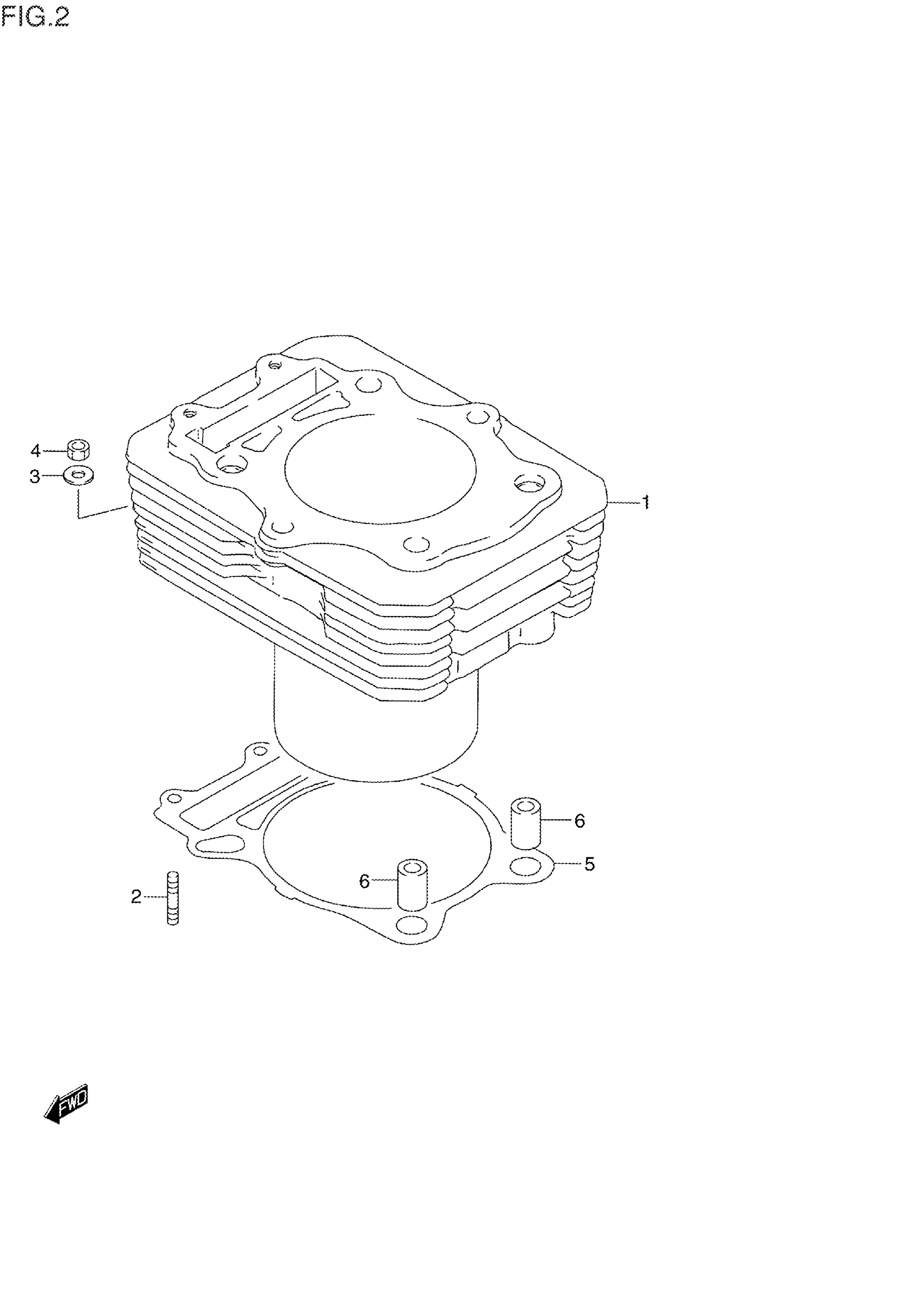

Suzuki DR250SES (1995) CYLINDER Diagram

#

Description

Price

1

CYLINDER | MODEL L/M/N This part replaces 11210-15D01-0F0.

11210-15D11-0F0

Unavailable

1

CYLINDER | MODEL P/R/S

11210-15D11-0F0

Unavailable

2

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

3

.WASHER | MODEL L/M/N/P This part replaces 08322-11068.

08322-0106B

$2.26

3

.WASHER | MODEL R/S This part replaces 08322-01063.

08322-0106B

$2.26

4

NUT | MODEL L/M/N/P This part replaces 09140-06022.

09140-06502

$2.72

4

NUT | MODEL R/S

09140-06502

$2.72

5

GASKET, CYLINDER

11241-14D01

$13.30

6

PIN | MODEL L/M/N/P This part replaces 09206-13001.

04211-13189

$2.19

6

PIN | MODEL R/S

04211-13189

$2.19
