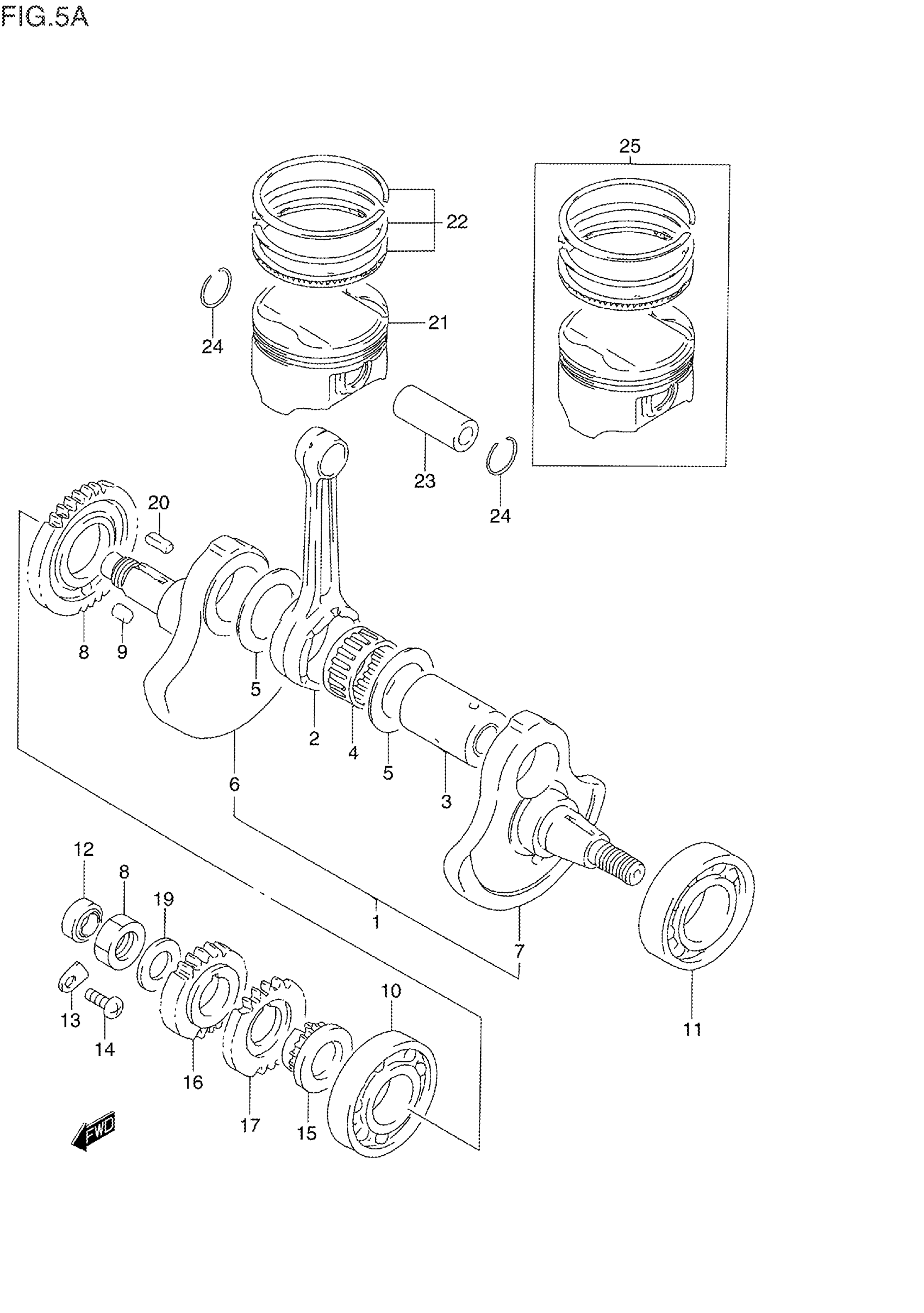

Suzuki DR250SES (1995) CRANKSHAFT (MODEL P/R/S) Diagram

#

Description
Price

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 7

12200-47D50

Unavailable

2

CONNROD | MODEL P/R This part replaces 12161-15D00.

12161-15D10

Unavailable

2

CONNROD | MODEL S This part replaces 12161-47D50.

12161-15D10

Unavailable

3

.PIN, CRANK This part replaces 12210-14D02.

12210-14D03

$86.13

4

BEARING

09263-34005

$80.87

5

WASHER (34X52X1)

09160-34003

$8.62

6

CRANKSHAFT, RH

12221-15D01

Unavailable

7

CRANKSHAFT, LH

12261-15D10

Unavailable

8

GEAR, BALANCER DRIVE

12661-14D00

$123.38

9

PIN

04221-08149

$1.96

10

BEARING, RH (30x72x19)

09262-30077

$58.43

11

BEARING, LH (35X72X17)

09262-35038

$46.10

12

OIL SEAL, RH

09282-14003

$8.24

13

RETAINER, BEARING

24742-18A00

$4.35

14

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

15

SPROCKET, CAM CHAIN DRIVE | NT:17

12731-14D00

$64.68

16

GEAR, PRIMARY DRIVE (NT:20) This part replaces 21111-15D20.

21111-15D21

Unavailable

17

NO DESCRIPTION AVAILABLE This part replaces 16321-15D00.

16321-15D01

Unavailable

18

NUT

09140-18012

$8.37

19

WASHER (18.3X31.5X1.8)

09164-18001

$3.24

20

KEY

09421-05009

$9.55

21

PISTON

12111-15D10-0F0

$108.55

22

RING SET, PISTON

12140-15D10

$61.40

23

PIN, PISTON

12151-17C00

$18.43

24

RING,SNAP

09381-19001

$2.29

25

PISTON SET (0S:0.5) | OPT

12100-15D10-050

Unavailable

25

PISTON SET (0S:1.0) | OPT

12100-15D10-100

Unavailable
