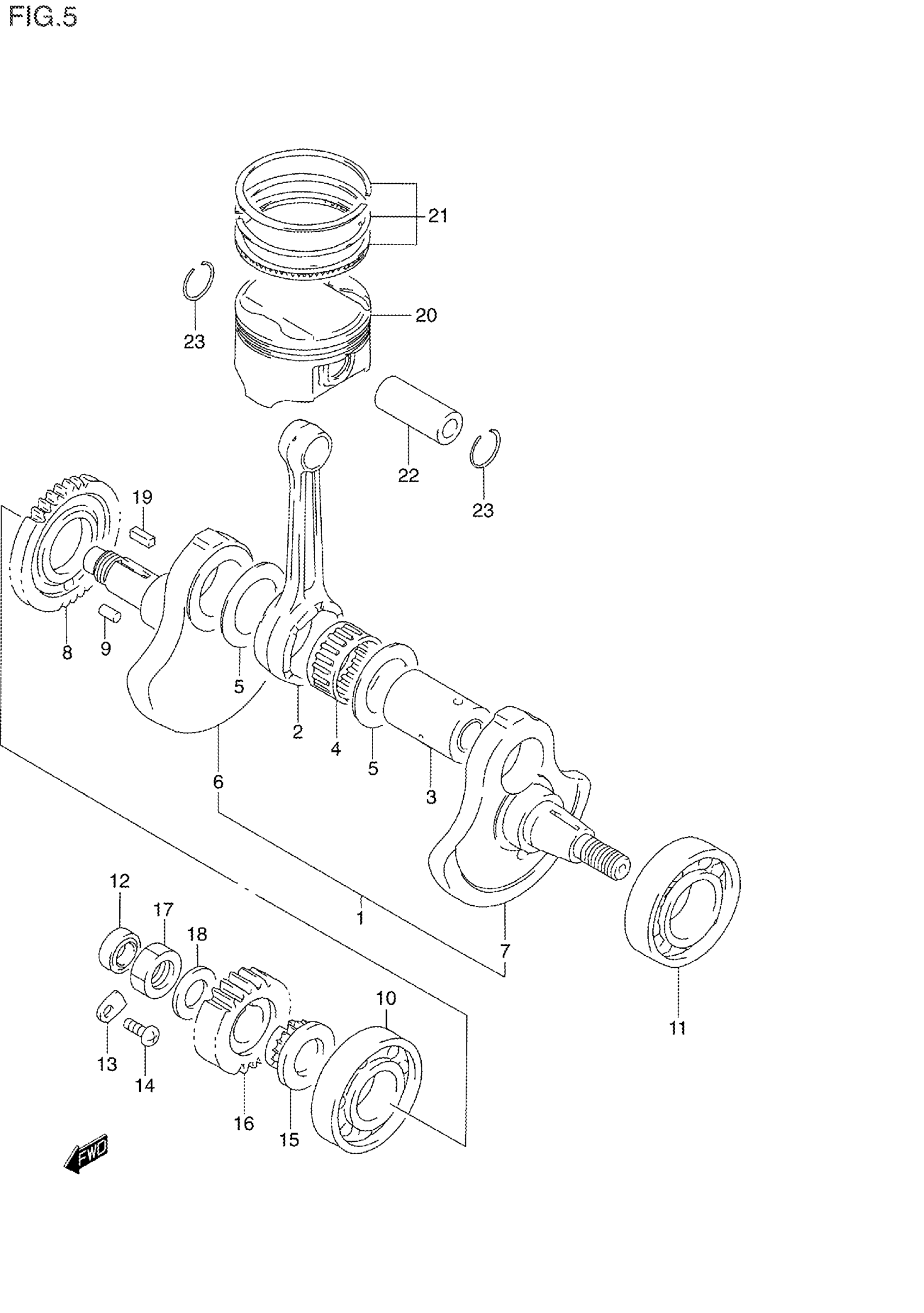

Suzuki DR250SES (1995) CRANKSHAFT (MODEL L/M/N) Diagram

#

Description
Price

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 7

12200-15D00

Unavailable

2

CONNROD This part replaces 12161-15D00.

12161-15D10

Unavailable

3

.PIN, CRANK This part replaces 12210-14D02.

12210-14D03

$86.13

4

BEARING

09263-34005

$80.87

5

WASHER

09160-34003

$8.62

6

CRANKSHAFT, RH This part replaces 12221-15D00.

12221-15D01

Unavailable

7

CRANKSHAFT, LH

12261-15D00

Unavailable

8

GEAR, BALANCER DRIVE

12661-14D00

$123.38

9

PIN

04221-08149

$1.96

10

BEARING, RH (30x72x19)

09262-30077

$58.43

11

BEARING, LH (35X72X17)

09262-35038

$46.10

12

OIL SEAL, RH

09282-14003

$8.24

13

PLATE, RH

24742-18A00

$4.35

14

SCREW This part replaces 02112-06126.

02112-0612A

$1.49

15

SPROCKET, CAM CHAIN DRIVE | NT:17

12731-14D00

$64.68

16

GEAR,PRIMARY DR This part replaces 21111-14D00.

21111-14D01

Unavailable

17

NUT

09140-18012

$8.37

18

LOCK WASHER

09164-18001

$3.24

19

KEY, GEAR

09421-05009

$9.55

20

PISTON | MODEL L/M This part replaces 12111-15D00-0F0.

12111-15D10-0F0

$108.55

20

PISTON SET (0S:0.5) | MODEL L/M,OPT This part replaces 12111-15D00-050.

12100-15D10-050

Unavailable

20

PISTON SET (0S:1.0) | MODEL L/M,OPT This part replaces 12111-15D00-100.

12100-15D10-100

Unavailable

20

PISTON | MODEL N

12111-15D10-0F0

$108.55

20

PISTON SET (0S:0.5) | MODEL N OPT This part replaces 12111-15D10-050.

12100-15D10-050

Unavailable

20

PISTON SET (0S:1.0) | MODEL N OPT This part replaces 12111-15D10-100.

12100-15D10-100

Unavailable

21

RING SET, PISTON

12140-15D10

$61.40

21

RING SET, PISTON (OS:0.5) | OPT

12140-15D10-050

Unavailable

21

RING SET, PISTON (OS:1.0) | OPT

12140-15D10-100

Unavailable

22

PIN, PISTON

12151-17C00

$18.43

23

RING,SNAP

09381-19001

$2.29

24

REFER TO FIG.5A(B-11) FOR

SPECIAL NOTE

Unavailable
