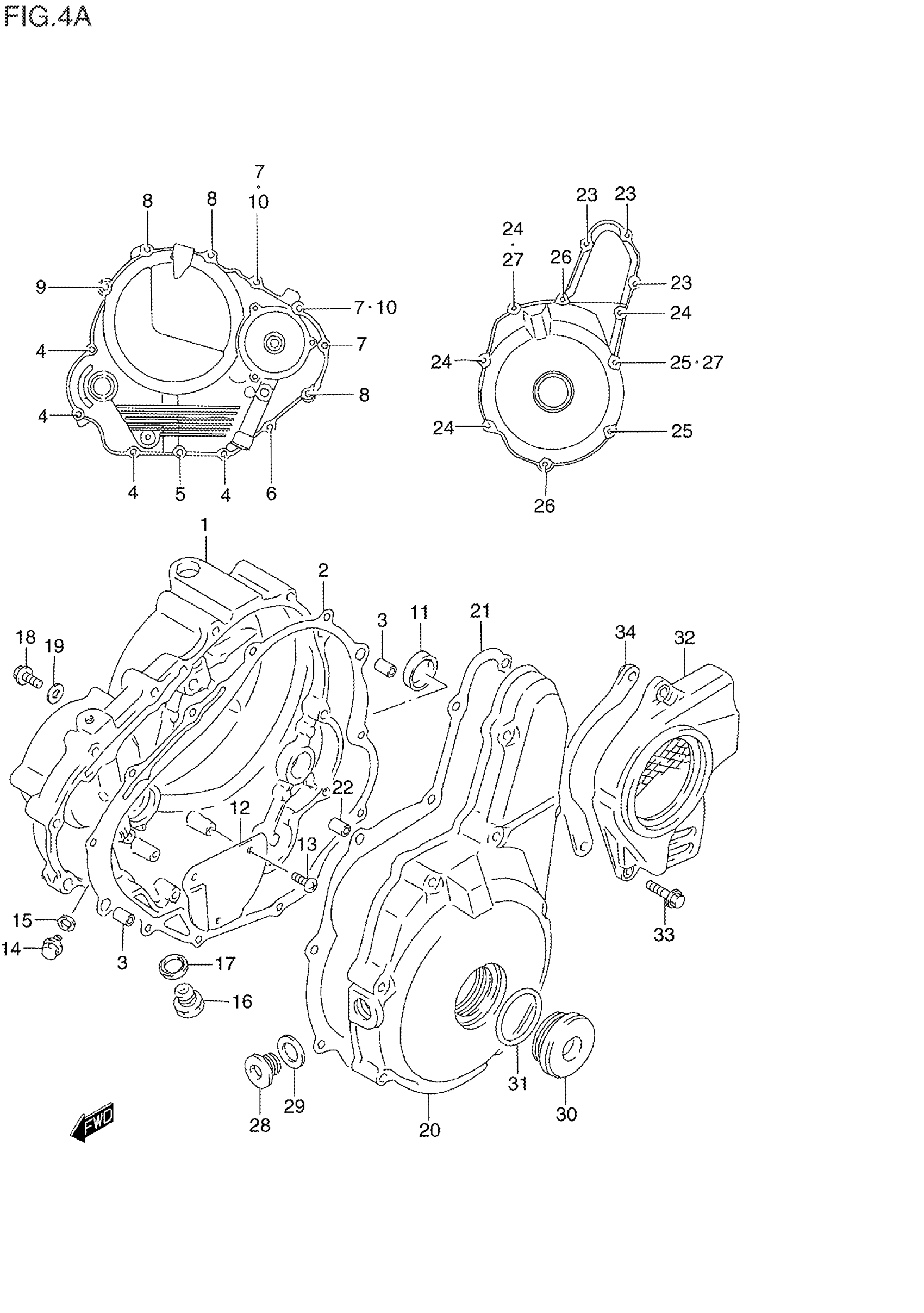

Suzuki DR250SES (1995) CRANKCASE COVER (MODEL P/R/S) Diagram

#

Description
Price

1

COVER SET,CLUTC This part replaces 11341-14D06.

11340-47811

$289.37

2

GASKET, CLUTCH COVER | MODEL P/R This part replaces 11482-14D02.

11482-14D03

$19.41

2

GASKET, CLUTCH COVER | MODEL S

11482-14D03

$19.41

3

PIN

04211-09149

$1.65

4

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

5

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

6

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

7

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

8

BOLT This part replaces 01547-06603.

01547-0660B

$3.18

9

BOLT This part replaces 01547-06653.

01547-0665B

$3.18

10

GASKET | MODEL P/R

09168-06023

$2.35

10

GASKET | MODEL S

09168-06024

$2.20

11

PLUG, CLUTCH COVER KICK

11342-15D00

$10.07

12

SEPARATOR, OIL RETURN

11349-14D00

Unavailable

13

SCREW (5X10) | MODEL P

09125-05042

$1.96

13

SCREW | MODEL R/S This part replaces 02142-05103.

02142-0510B

$1.78

14

PLUG, OIL GALLERY

09103-06078

$1.78

15

GASKET

09168-06004

$1.49

16

PLUG, OIL GALLERY

09248-10007

$6.50

17

GASKET

09168-10002

$2.13

18

BOLT (6X10) This part replaces 09128-06043.

09128-06058

$1.98

19

GASKET | MODEL P/R

09168-06023

$2.35

19

GASKET | MODEL S

09168-06024

$2.20

20

COVER, MAGNET

11351-15D02

$367.98

21

GASKET, MAGNETO COVER | MODEL P/R This part replaces 11483-15D01.

11483-15D02

$17.74

21

GASKET, MAGNET COVER | MODEL S

11483-15D02

$17.74

22

PIN

04211-09149

$1.65

23

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

24

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

25

BOLT This part replaces 01547-06453.

01547-0645B

$2.73

26

BOLT This part replaces 01547-06503.

01547-0650B

$2.75

27

GASKET | MODEL P/R

09168-06023

$2.35

27

GASKET | MODEL S

09168-06024

$2.20

28

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

29

GASKET | MODEL P

09168-14004

$1.83

29

GASKET | MODEL R/S

09168-14002

$2.26

30

PLUG, CRANK HOLE

09259-36016-20H

$13.80

31

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

32

COVER, ENGINE SPROCKET

11360-14D01

$89.43

33

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

34

PLATE, FRONT CHAIN GUIDE

27640-14D01

Unavailable
