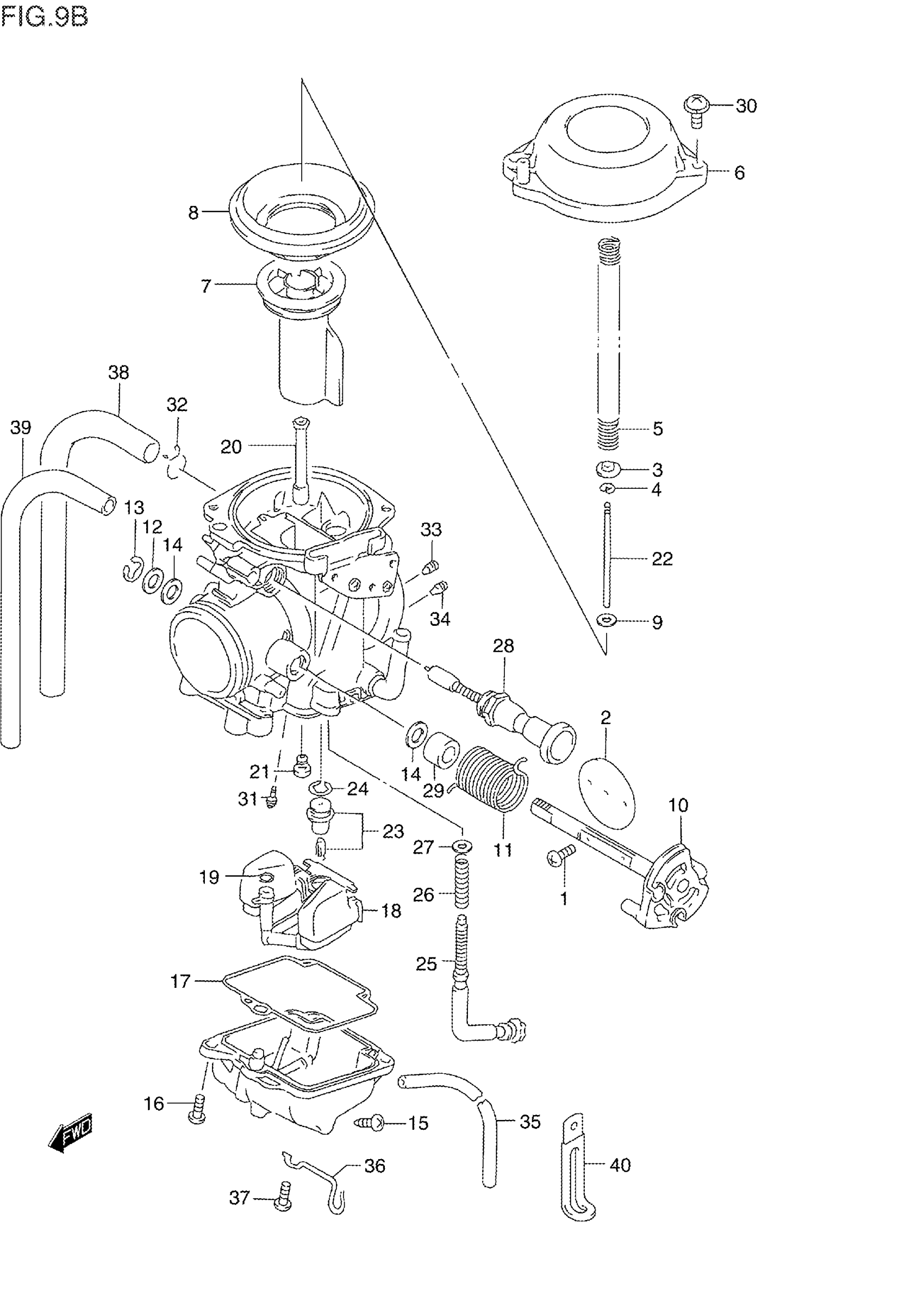

Suzuki DR250SES (1995) CARBURETOR (MODEL P/R/S) Diagram

#

Description
Price

CARBURETOR ASSY

13200-15E60

Unavailable

CARBURETOR ASSY | CALIFORNIA ONLY; Includes Item(s) 1 - 39

13200-15E70

Unavailable

1

SCREW, THROTTLE VALVE This part replaces 13604-42A00.

13604-44080

$2.92

2

VALVE, THROTTLE (115)

13551-45B00

Unavailable

3

RING

13382-42A00

$4.48

4

CLIP, NEEDLE

13394-01D00

$4.64

5

SPRING

13417-44B00

$8.67

6

COVER, DAPHRAM This part replaces 13502-45B00.

13502-44B00

Unavailable

7

VALVE, PISTON

13551-44B10

$91.95

8

DIAPHRAGM This part replaces 13507-44B00.

13507-44B01

$24.15

9

RING

13387-47010

$7.22

10

SHAFT ASSY

13550-14E00

Unavailable

11

SPRING

13268-31D00

Unavailable

12

GASKET

13557-47070

$3.59

13

E RING

13617-44080

$2.90

14

SEAL

13556-44B00

$4.43

15

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

16

SCREW | MODEL P/R This part replaces 13602-05128.

02112-05127

$1.97

16

SCREW | MODEL S

02112-05127

$1.97

17

GASKET, FLOAT CHAMBER

13258-44B00

$9.78

18

FLOAT ASSY

13240-14D30

Unavailable

19

.O RING

13374-46710

$4.48

20

JET, NEEDLE (0-8)

09494-00793

Unavailable

21

JET, MAIN (130)

09491-26011

$11.38

22

NEEDLE, JET (5CD22)

13383-15E00

Unavailable

23

VALVE ASSY,NEED This part replaces 13370-44B00.

13370-02D01

$55.60

24

O RING This part replaces 13374-44080.

13374-35C00

$5.99

25

ADJUSTER

13267-15E00

$63.48

26

SPRING

13268-31210

$5.33

27

WASHER

13615-43010

$3.25

28

PLUNGER ASSY This part replaces 13411-14E00.

13411-14E10

$52.10

29

RING

13574-28A00

$4.13

30

SCREW | MODEL P/R This part replaces 13602-34390.

02112-7516A

$2.41

30

SCREW | MODEL S This part replaces 02112-75163.

02112-7516A

$2.41

31

JET, PILOT (37.5)

09492-35010

$9.32

32

CLIP | MODEL P/R This part replaces 13671-48B10.

09401-10401

$1.49

32

CLIP | MODEL S This part replaces 09401-10410.

09401-10401

$1.49

33

JET, AIR (1.25)

09493-25003

$16.87

34

JET, AIR (0.6)

09493-60004

$16.87

35

.HOSE (3X5X600) | MODEL P/R,L:300->200 This part replaces 13683-36A00.

09352-30504-600

$4.91

35

.HOSE (3X5X600) | MODEL S,L:600->200 This part replaces 09352-30503-600.

09352-30504-600

$4.91

36

CLIP

13671-15D60

$18.48

37

SCREW | MODEL P/R This part replaces 13602-05088.

02112-05087

$1.49

37

SCREW | MODEL S

02112-05087

$1.49

38

HOSE(7X11X600) | MODEL P/R,L:300->200 This part replaces 13683-43410.

09352-70119-600

$10.40

38

HOSE(7X11X600) | MODEL S,L:600->200 This part replaces 09352-70113-600.

09352-70119-600

$10.40

39

HOSE(4.5X8.5X60 | MODEL P/R This part replaces 13684-36510.

09355-45001-600

$9.48

39

HOSE(4.5X8.5X60 | MODEL S This part replaces 09354-45853-600.

09355-45001-600

$9.48

40

CLAMP This part replaces 09404-06402.

09404-06039

$1.74
