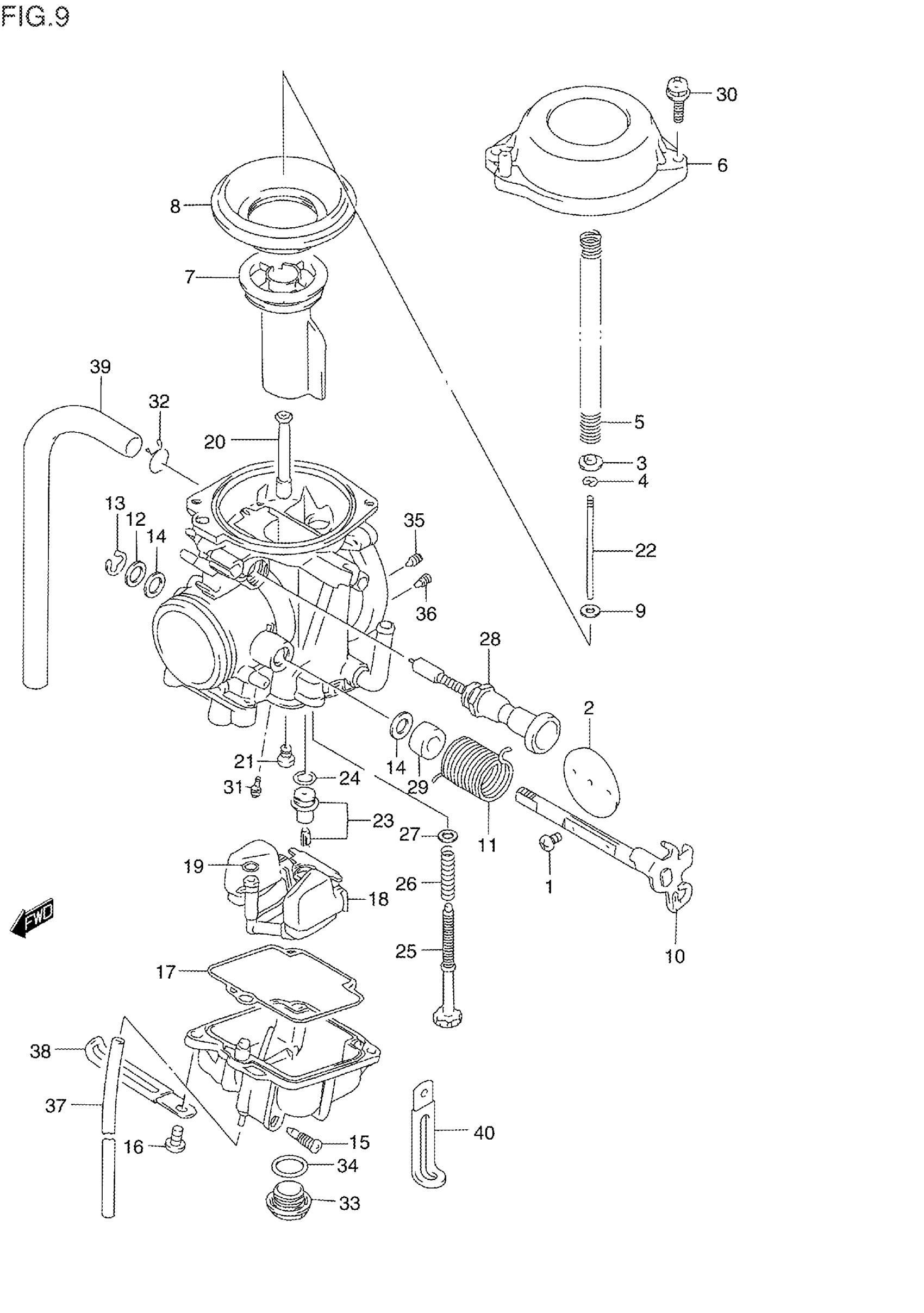

Suzuki DR250SES (1995) CARBURETOR (MODEL L/M) Diagram

#

Description
Price

CARBURETOR ASSY

13200-15D10

Unavailable

CARBURETOR ASSY | CALIFORNIA ONLY; Includes Item(s) 1 - 39

13200-15D30

Unavailable

1

SCREW, THROTTLE VALVE This part replaces 13604-42A00.

13604-44080

$2.92

2

VALVE, THROTTLE (115)

13551-45B00

Unavailable

3

RING

13382-42A00

$4.48

4

CLIP, NEEDLE

13394-01D00

$4.64

5

SPRING

13417-44B00

$8.67

6

COVER, DAPHRAM This part replaces 13502-45B00.

13502-44B00

Unavailable

7

VALVE, PISTON

13551-44B10

$91.95

8

DIAPHRAGM This part replaces 13507-44B00.

13507-44B01

$24.15

9

RING

13387-47010

$7.22

10

SHAFT ASSY

13550-14D10

Unavailable

11

SPRING

13573-14D10

Unavailable

12

GASKET

13557-47070

$3.59

13

E RING

13617-44080

$2.90

14

SEAL

13556-44B00

$4.43

15

SCREW, DRAIN | MODEL L This part replaces 13247-13A00.

13247-02340

$4.99

15

SCREW, DRAIN | MODEL M

13247-02340

$4.99

16

SCREW This part replaces 13602-05128.

02112-05127

$1.97

17

GASKET, FLOAT CHAMBER

13258-44B00

$9.78

18

FLOAT ASSY

13240-14D30

Unavailable

19

.O RING

13374-46710

$4.48

20

JET, NEEDLE (0-6M) This part replaces 09494-00691.

09494-00883

Unavailable

21

JET, MAIN (132.5)

09491-26011

$11.38

22

NEEDLE, JET (5CD16)

13383-14D20

Unavailable

23

VALVE ASSY,NEED This part replaces 13370-44B00.

13370-02D01

$55.60

24

O RING This part replaces 13374-44080.

13374-35C00

$5.99

25

ADJUSTER

13267-14D10

$24.60

26

SPRING

13375-14D10

$7.05

27

WASHER

13427-38300

$1.92

28

PLUNGER ASSY

13411-14D10

Unavailable

29

RING

13574-28A00

$4.13

30

SCREW This part replaces 13602-34390.

02112-7516A

$2.41

31

JET, PILOT (40)

09492-40014

$9.38

32

CLIP This part replaces 13671-48B10.

09401-10401

$1.49

33

SCREW, DRAIN

13247-32210

$15.23

34

O RING, DRAIN PLUG

13249-41310

$4.40

35

JET, AIR (1.4)

09493-28006

$16.32

36

JET, AIR (0.6)

09493-60004

$16.87

37

.HOSE (3X5X600) | L:300->150 This part replaces 13683-36A00.

09352-30504-600

$4.91

38

CLAMP(L:80) This part replaces 13671-05A20.

09404-06036

$1.74

39

HOSE(7X11X600) | L:300->200 This part replaces 13683-43410.

09352-70119-600

$10.40

40

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

41

REFER TO FIG.9A (C- 4) FOR

SPECIAL NOTE

Unavailable
