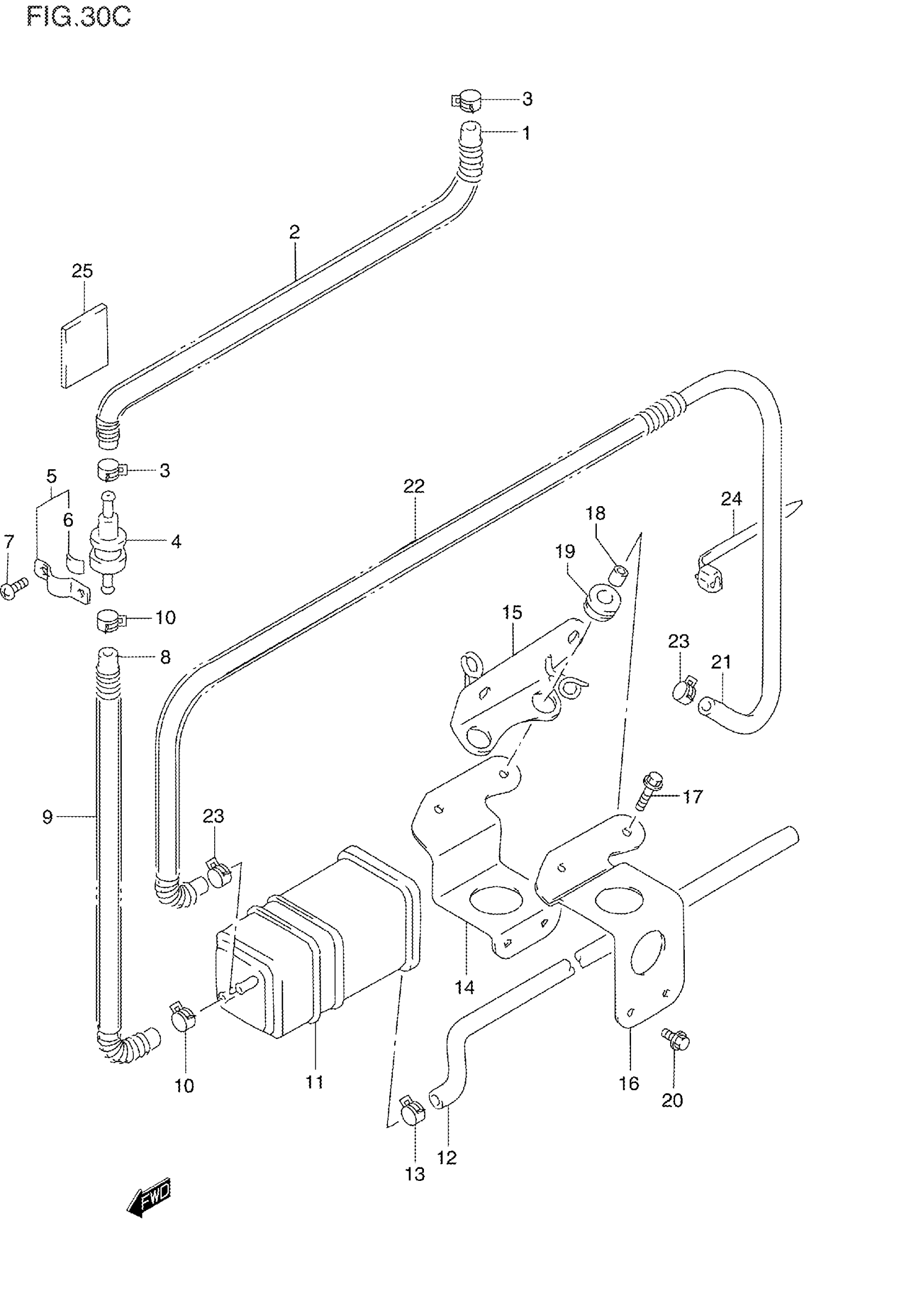

Suzuki DR250SES (1995) CANISTER (CALIFORNIA ONLY) Diagram

#

Description
Price

1

HOSE, TANK & VALVE | 5.4X11.4X790

09343-05509

Unavailable

2

SPRING (L:270)

09440-13051

$10.76

3

CLIP

09401-11413

$2.26

4

VALVE, FUEL TANK BREATHER

44240-38A00

$61.15

5

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 6

44892-24A00

$4.52

6

CUSHION (10X30X2)

44894-24A00

$1.72

7

SCREW | MODEL L/M/N/P This part replaces 02142-04085.

02142-0408B

$1.70

7

SCREW | MODEL R/S This part replaces 02142-04083.

02142-0408B

$1.70

8

HOSE, VALVE & CANISTER | 5.4X11.4X350

09343-05503

Unavailable

9

SPRING (L:160)

09440-13052

$6.53

10

CLIP

09401-11413

$2.26

11

CANISTER ASSY

17210-14A00

$156.07

12

HOSE, CANISTER BREATHER

44917-15D00

Unavailable

13

CLIP

09401-11413

$2.26

14

PLATE, CANISTER LOWER | MODEL L/M/N This part replaces 44930-15D00.

44930-15D01

Unavailable

14

PLATE, CANISTER LOWER | MODEL P/R/S

44930-15D01

Unavailable

15

PLATE, CANISTER INNER | MODEL L/M/N This part replaces 44910-15D00.

44910-15D01

Unavailable

15

PLATE, CANISTER INNER | MODEL P/R/S

44910-15D01

Unavailable

16

PLATE, CANISTER OUTER | MODEL L/M/N This part replaces 44921-15D00.

44921-15D01

Unavailable

16

PLATE, CANISTER OUTER | MODEL P/R/S

44921-15D01

Unavailable

17

BOLT, UPPER

09103-06066

Unavailable

18

SPACER This part replaces 09180-06167.

09180-06286

$2.50

19

CUSHION This part replaces 09320-10043.

09320-10501

$6.23

20

BOLT, CLAMP | MODEL L/M/N/P This part replaces 01517-06125.

01550-0612A

$1.97

20

BOLT, CLAMP | MODEL R/S This part replaces 01550-06123.

01550-0612A

$1.97

21

HOSE, CANISTER & CARB. | 5.4X11.4X790

09343-05509

Unavailable

22

SPRING (L:410)

09440-13053

Unavailable

23

CLIP

09401-11413

$2.26

24

CLAMP

09407-14409

Unavailable

25

CUSHION, CANISTER & CARB

63191-25C00

$3.05
