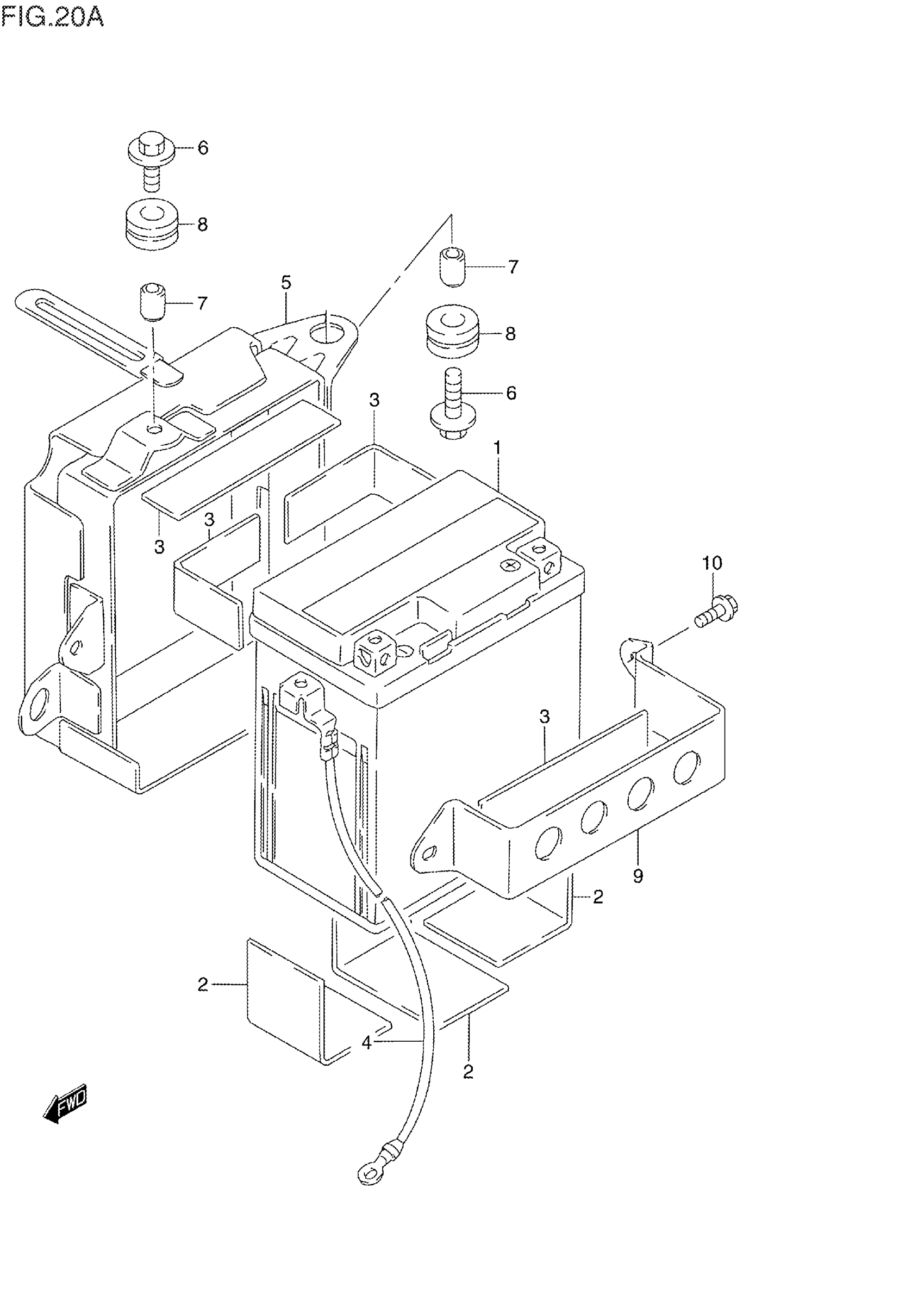

Suzuki DR250SES (1995) BATTERY (MODEL P/R/S) Diagram

#

Description

Price

1

BATTERY ASSY (YTX7L-BS,12V,6AH) This part replaces 33610-15D10.

33610-15D20

$76.28

2

PROTECTOR | CUT 40X85

33651-37000

$4.48

3

PROTECTOR | CUT 20X90

33651-37000

$4.48

4

WIRE, BATTERY MINUS | MODEL P This part replaces 33860-15D00.

33860-15D01

Unavailable

4

WIRE, BATTERY MINUS | MODEL R/S

33860-15D01

Unavailable

5

HOLDER, BATTERY

41540-15D00

Unavailable

6

BOLT (6X20)

09116-06010

$2.19

7

SPACER, LOWER LH This part replaces 09180-06210.

09180-06285

$2.74

8

CUSHION This part replaces 09320-10043.

09320-10501

$6.23

9

BAND, BATTERY HOLDER

41542-15D00

Unavailable

10

BOLT (6x10)

09128-06058

$1.98
