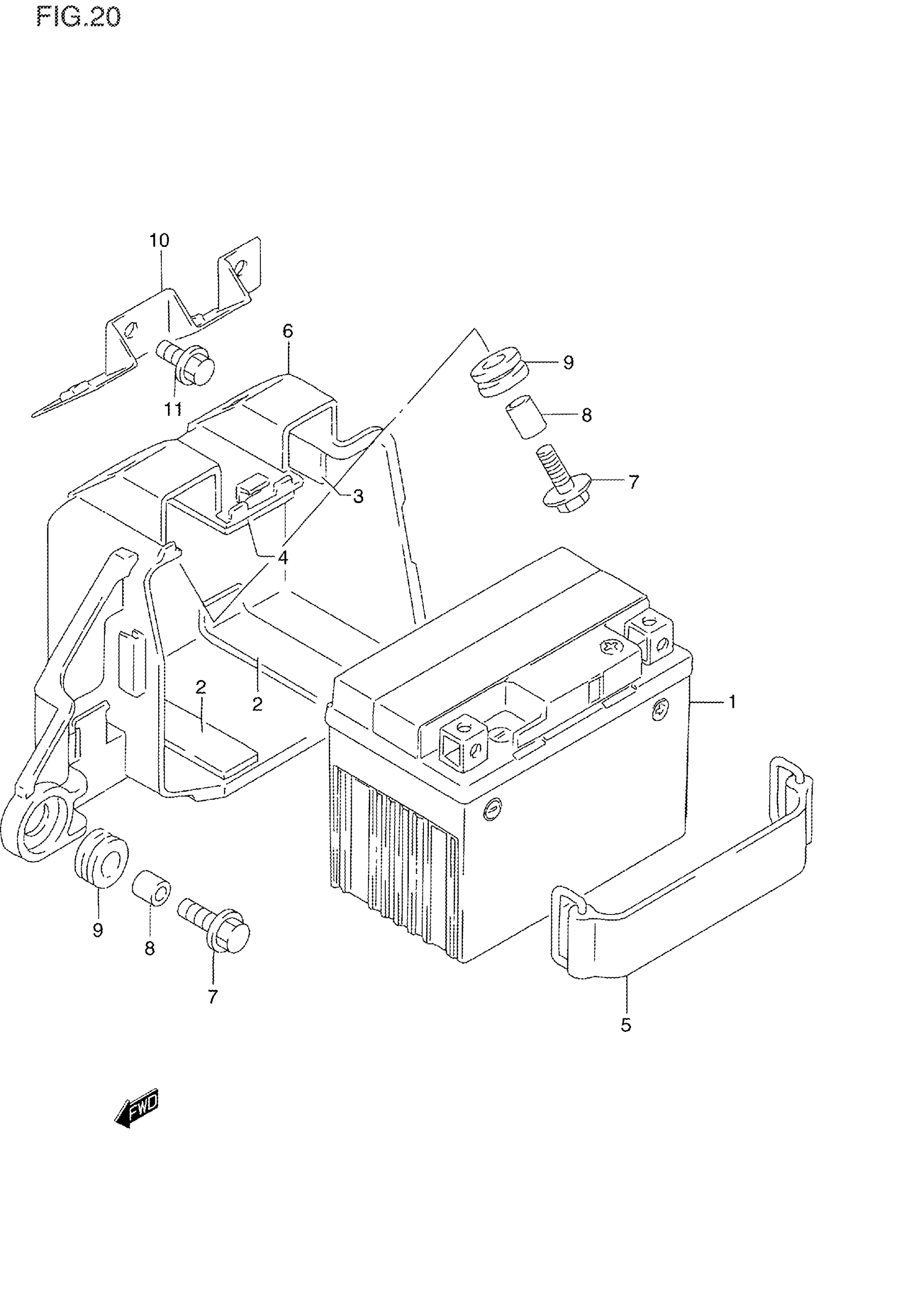

Suzuki DR250SES (1995) BATTERY (MODEL L/M/N) Diagram

#

Description
Price

1

BATTERY(Y) YT4L | MODEL L/M This part replaces 33610-14D00.

33610C14D20J000

Unavailable

1

BATTERY(Y) YT4L | MODEL N This part replaces 33610-14D10.

33610C14D20J000

Unavailable

2

CUSHION, REAR FENDER REAR This part replaces 33652-03D00.

33651-37000

$4.48

3

CUSHION, REAR FENDER REAR | CUT 20X40 This part replaces 33652-03D00.

33651-37000

$4.48

4

CUSHION, REAR FENDER REAR This part replaces 33652-03D20.

33651-37000

$4.48

5

BAND

09462-00043

$4.11

6

HOLDER, BATTERY

41541-03D00

Unavailable

7

BOLT (L:20)

09116-06010

$2.19

8

SPACER This part replaces 09180-06152.

09180-06262

$2.55

9

CUSHION

09320-09016

$1.97

10

PLATE, BATTERY HOLDER

41560-14D00

Unavailable

11

BOLT This part replaces 01517-06105.

01550-0610A

$1.97

12

REFER TO FIG.20A(E-6) FOR

SPECIAL NOTE

Unavailable
