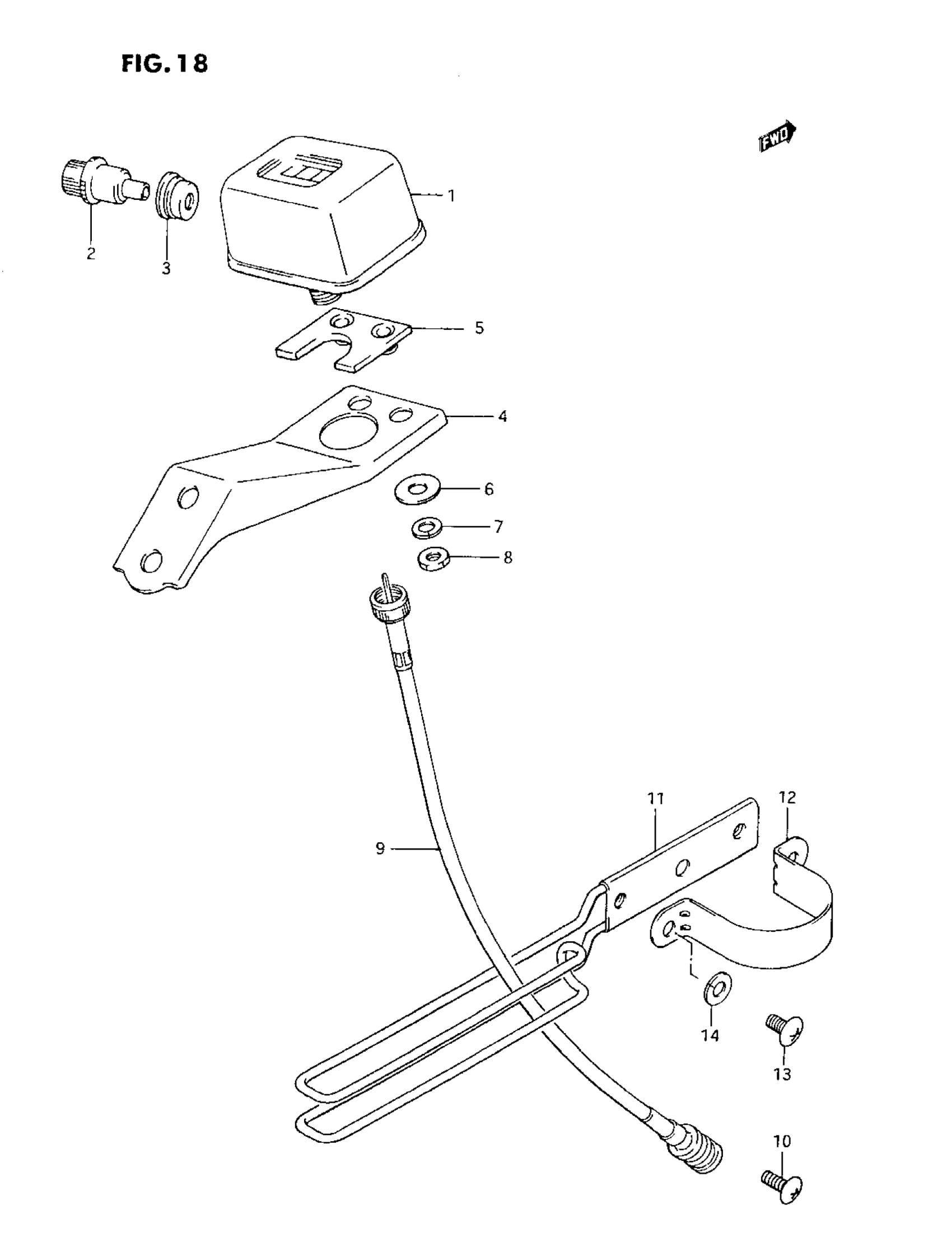

Suzuki DR250 (1985) TRIP METER Diagram

#

Description
Price

1

TRIP METER (MILE/KILO) This part replaces 34721-40610.

34721-05D20

$203.42

2

KNOB

34124-40610

Unavailable

3

GROMMET

34126-41410

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 34725-38201.

34725-38200

Unavailable

5

CUSHION

34726-41410

Unavailable

6

WASHER This part replaces 34727-41410.

09160-04022

$2.15

7

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

8

NUT This part replaces 08310-11048.

08310-00047

$2.23

9

CABLE ASSY, SPE This part replaces 34910-38250.

34910-20E01

$48.30

10

SCREW This part replaces 02112-05165.

02112-05164

$2.63

11

NO DESCRIPTION AVAILABLE This part replaces 34930-37411.

34930-37412

Unavailable

12

CLAMP

34997-37400

Unavailable

13

SCREW This part replaces 02112-06128.

02112-06127

$1.84

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
