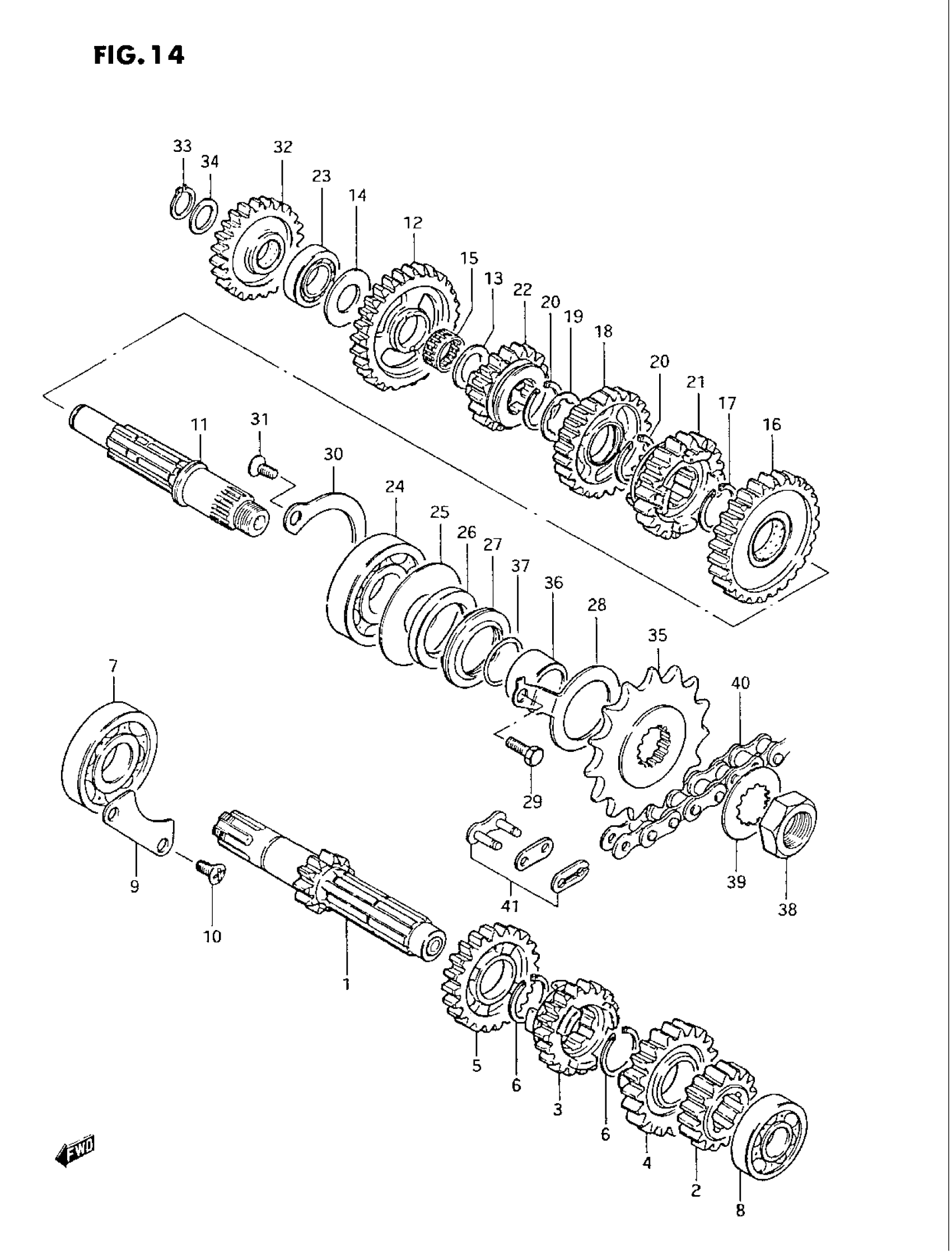

Suzuki DR250 (1985) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:11) This part replaces 24120-38200.

24120-38203

Unavailable

2

GEAR, 2ND DRIVE (NT:16)

24221-32412

Unavailable

3

GEAR, 3RD DRIVE (NT:19) This part replaces 24231-38200.

24231-38201

Unavailable

4

GEAR, 4TH DRIVE (NT:20) This part replaces 24241-32400.

24241-32401

Unavailable

5

GEAR, 5TH DRIVE (NT:22) This part replaces 24251-32401.

24251-32420

Unavailable

6

CIRCLIP

09380-22006

$3.10

7

BEARING (22X56X16) This part replaces 09262-22014.

09262-22028

$77.48

8

BEARING (17X40X12) This part replaces 09262-17018.

09262-17027

$35.28

9

HOLDER, BEARING

24741-38200

Unavailable

10

SCREW This part replaces 02112-06128.

02112-06127

$1.84

11

DRIVE SHA FT

24130-38201

Unavailable

12

GEAR, IST DRIVEN (NT:29)

24311-32401

Unavailable

13

WASHER, 1ST DRIVEN This part replaces 08211-17281.

09181-17195

$3.07

14

WASHER, RH

08211-17363

Unavailable

15

BEARING

09263-17004

$12.03

16

GEAR, 2ND DRIVEN (NT:28)

24320-38210

Unavailable

17

CIRCLIP

09380-22006

$3.10

18

GEAR, 3RD DRIVEN (NT:25)

24330-38210

Unavailable

19

WASHER

09167-22011

$3.23

20

CIRCLIP

09380-22006

$3.10

21

GEAR, 4TH DRIVEN (NT:20) This part replaces 24341-38200.

24341-38201

Unavailable

22

GEAR, 5TH DRIVEN (NT:18) This part replaces 24351-38200.

24351-38201

Unavailable

23

BEARING, RH

09264-17001

$43.02

24

BEARING, LH

09262-22013

$73.18

25

WASHER

09160-35007

$2.12

26

OIL SEAL (30X43X5) This part replaces 09282-30003.

09282-30004

$10.95

27

OIL SEAL (30X43X7) This part replaces 09283-30040.

09283-30041

$11.52

28

HOLDER, OIL SEAL

24751-38201

Unavailable

29

BOLT This part replaces 01107-06126.

01500-0612A

$1.78

30

HOLDER, BEARING

24752-32400

Unavailable

31

SCREW This part replaces 02122-06128.

02122-06127

$1.84

32

GEAR, KICK IDLE

26260-38200

Unavailable

33

CIRCLIP

09380-17001

$1.98

34

WASHER

08211-17241

$2.54

35

SPROCKET (NT:13)

27511-38200

Unavailable

36

SPACER

27531-32400

Unavailable

37

O RING (D:2.5,ID:21)

09280-21008

$1.91

38

NUT

09140-18008

$6.00

39

WASHER

09167-22012

$1.54

40

CHAIN,DRIVE ASS This part replaces 27600-38230.

27600-46K00-116

$167.95

41

NO DESCRIPTION AVAILABLE This part replaces 27620-36111.

27620-28C01

Unavailable
