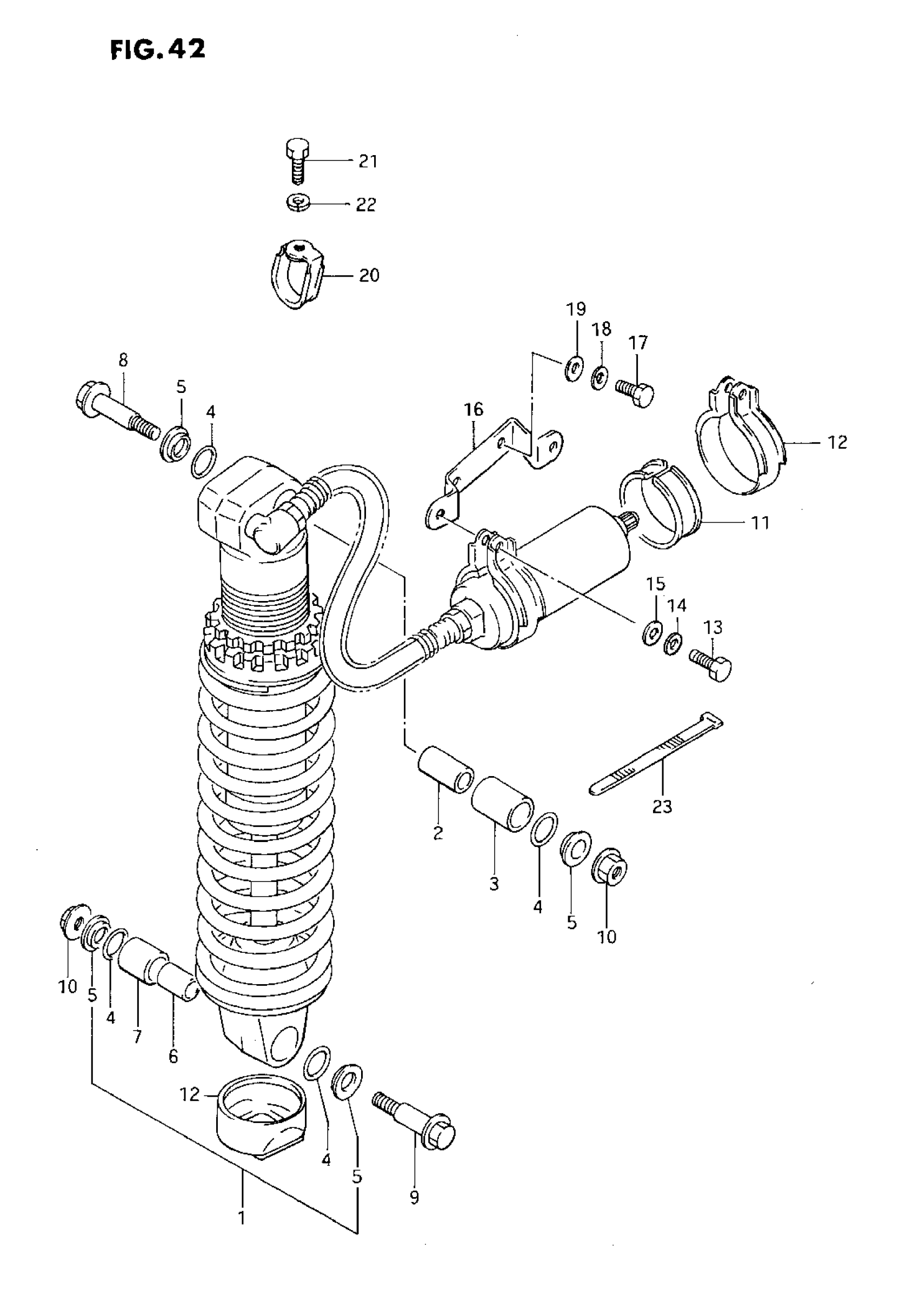

Suzuki DR250 (1985) SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY (BLUE)

62100-38280-19F

Unavailable

2

BUSH, UPPER

62176-38211

Unavailable

3

BUSH

62178-38210

Unavailable

4

O RING (D:2.4,ID:17.8) This part replaces 51181-43010.

09280-18004

$5.18

5

COLLAR

62177-38200

Unavailable

6

BUSH, LOWER

62176-38201

Unavailable

7

BUSH

62178-38200

Unavailable

8

BOLT, UPPER

09103-10050

Unavailable

9

BOLT, LOWER

09103-10030

$6.45

10

NUT This part replaces 08319-31108.

08319-31107

$2.73

11

CUSHION, TANK

62423-38210

Unavailable

12

BRACKET, TANK

62411-38210

Unavailable

13

BOLT This part replaces 01107-06165.

01500-0616A

$1.78

14

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

15

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

16

PLATE, BRACKET

62429-38210

Unavailable

17

BOLT This part replaces 01107-06125.

01500-0612A

$1.78

18

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

19

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

20

GUIDE, HOSE

62431-38210

Unavailable

21

SCREW This part replaces 02112-06128.

02112-06127

$1.84

22

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

23

CLAMP This part replaces 09407-16401.

09407-25402

$4.64
