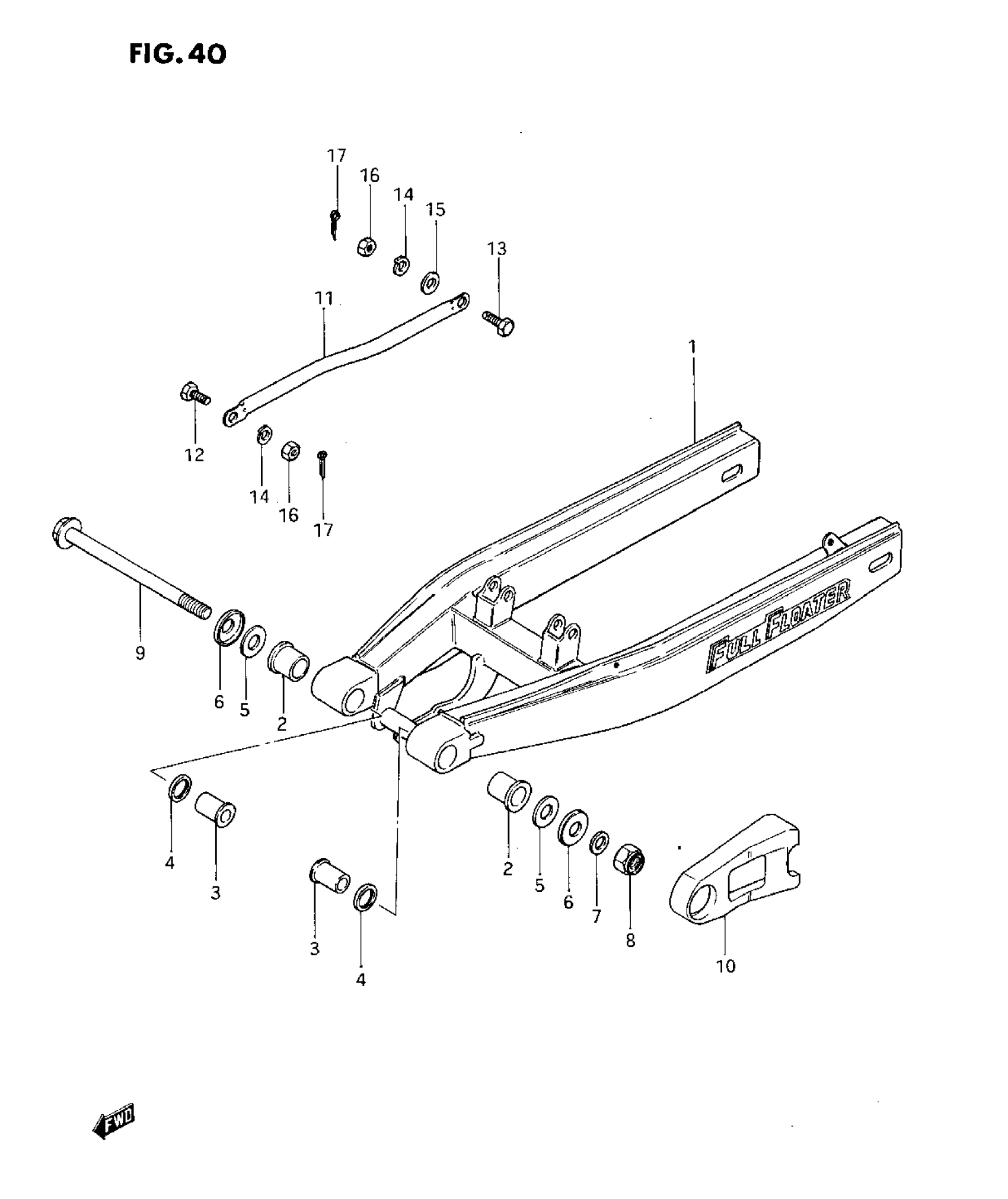

Suzuki DR250 (1985) REAR SWINGING ARM Diagram

#

Description
Price

1

REAR SWINGING ARM

61000-38237

Unavailable

2

BUSH

61261-38200

Unavailable

3

SPACER

61251-38200

Unavailable

4

OIL SEAL

09286-20001

$4.32

5

WASHER

08211-15341

$2.85

6

COVER This part replaces 61262-38200.

61262-22A01

$6.05

7

WASHER This part replaces 08322-11148.

08322-01147

$1.91

8

NUT This part replaces 08319-21148.

08319-2114A

$3.96

9

NO DESCRIPTION AVAILABLE This part replaces 61211-38200.

64711-26B00

Unavailable

10

BUFFER, CHAIN DEFENSE

61273-38211

Unavailable

11

TORQUE LINK, REAR (GOLD)

64310-05311-08C

Unavailable

12

BOLT, FRONT

09111-08050

Unavailable

13

BOLT, REAR

09111-08013

$3.04

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

15

WASHER This part replaces 08322-11088.

08322-01087

$2.13

16

NUT

09140-08008

$1.49

17

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
