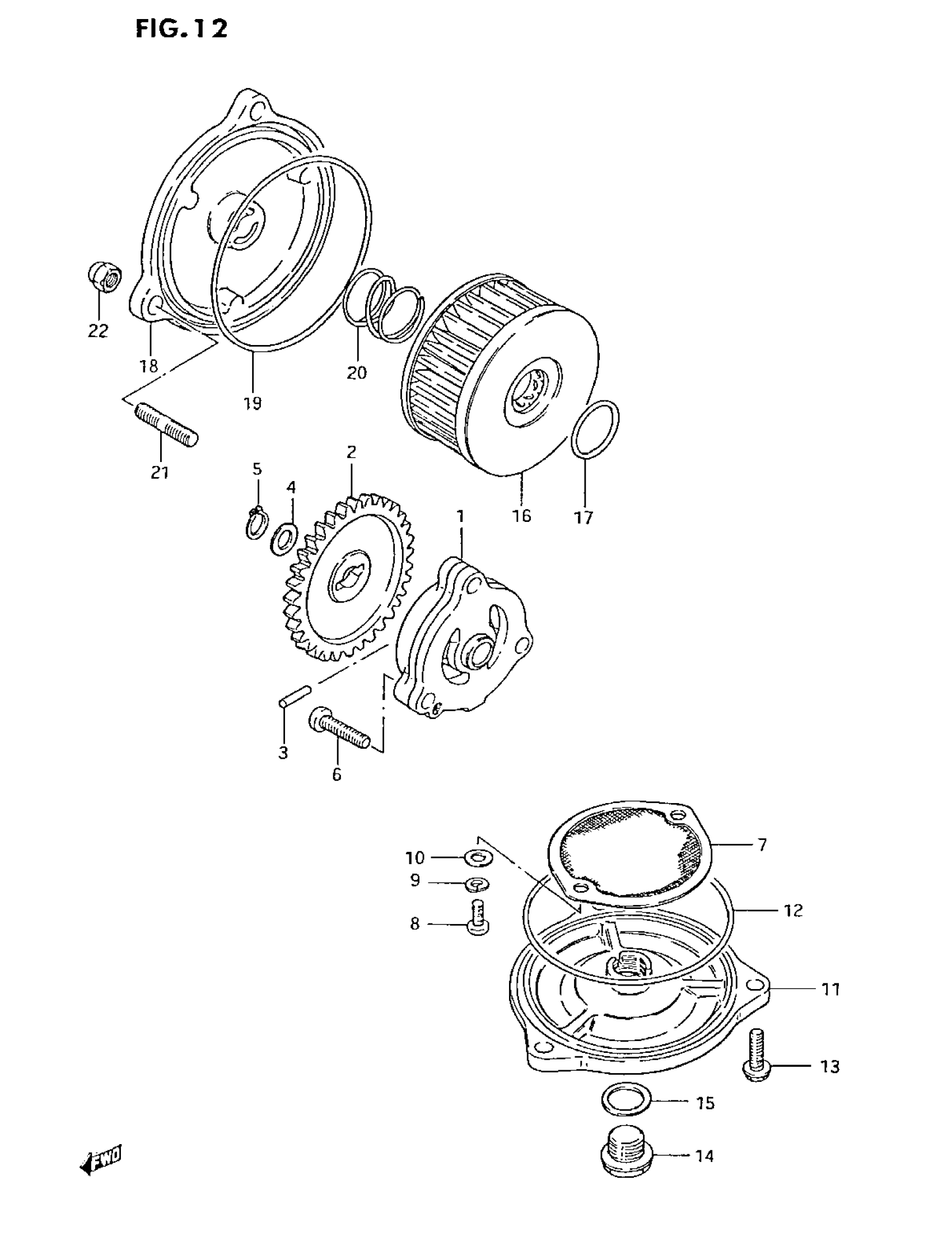

Suzuki DR250 (1985) OIL PUMP Diagram

#

Description
Price

1

PUMP, ENGINE OIL

16400-38200

Unavailable

2

GEAR, DRIVEN (NT:33)

16331-38200

$45.38

3

PIN

09261-04009

$1.56

4

WASHER

08221-10185

$2.15

5

CIRCLIP

08331-31109

$1.78

6

SCREW This part replaces 02112-06256.

02112-0625A

$1.80

7

STRAINER, ENGINE OIL

16520-37400

$8.12

8

SCREW This part replaces 02112-05126.

02112-0512A

$1.49

9

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.84

10

WASHER, FRONT This part replaces 08322-21056.

08322-0105A

$1.84

11

CAP

16523-38200

$27.85

12

O-RING

09280-82001

$5.18

13

BOLT This part replaces 01547-06208.

01547-06207

$2.01

14

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

15

GASKET

09168-14004

$1.83

16

FILTER, ENGINE OIL

16510-38240

$6.06

17

O-RING

09280-16005

$2.23

18

CAP,OIL FILTER This part replaces 16512-38230.

16512-14D00

$36.17

19

.O RING (D:2.4,ID:73)

09280-72001

$4.94

20

SPRING

09440-21004

$2.75

21

STUD BOLT This part replaces 01421-06128.

09108-06128

$2.30

22

NUT This part replaces 08313-11065.

08313-1006A

$1.84
