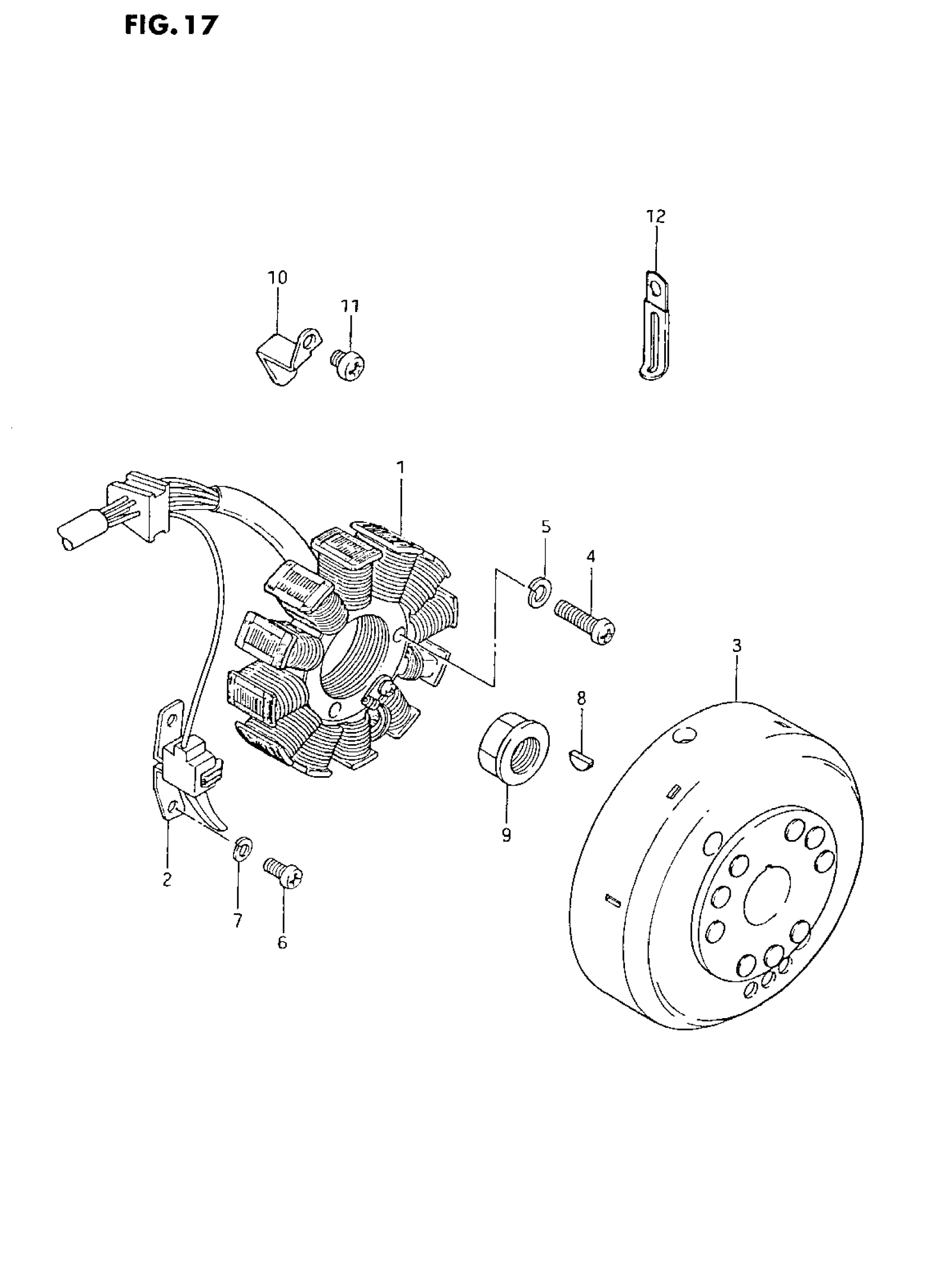

Suzuki DR250 (1985) MAGNETO Diagram

#

Description
Price

1

STATOR

32101-38230

Unavailable

2

COIL, PICKUP

32150-38210

Unavailable

3

ROTOR, FLYWHEEL

32102-38210

Unavailable

4

SCREW This part replaces 02112-06258.

02112-06257

$1.78

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

6

SCREW This part replaces 02112-05108.

02112-05107

$1.49

7

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

8

KEY This part replaces 08341-31049.

09420-04008

$3.42

9

NUT

31792-49200

$9.69

10

CLAMP, LEAD WIRE

32371-38200

Unavailable

11

SCREW This part replaces 02112-06088.

02112-06087

$1.49

12

CLAMP This part replaces 09404-06401.

09404-06039

$1.74
