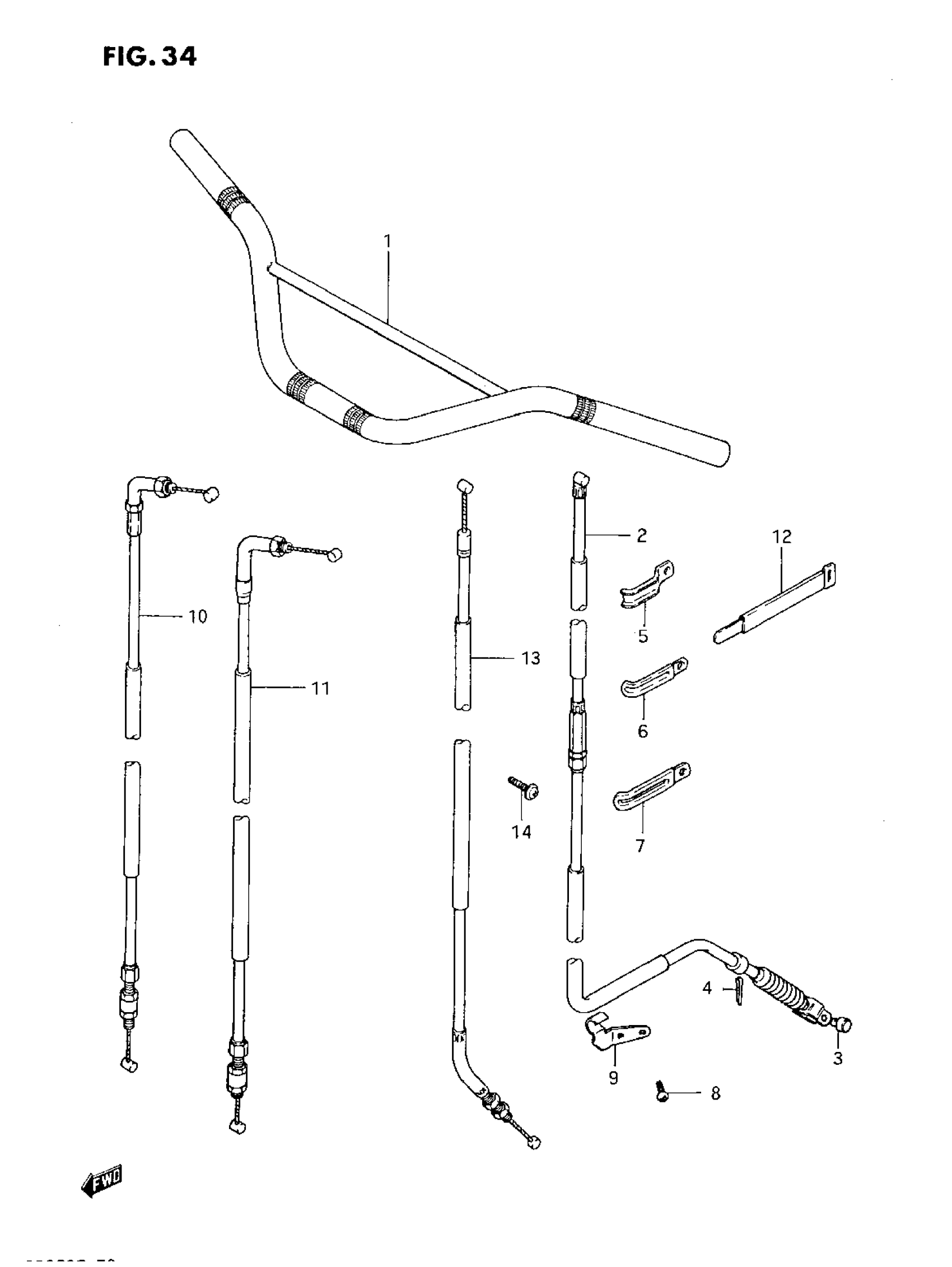

Suzuki DR250 (1985) HANDLEBAR Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 56110-38200-19T.

56110-38210-291

Unavailable

2

CABLE,CLUTCH This part replaces 58200-38200.

58200-38X00

Unavailable

3

PIN

09200-06004

$2.20

4

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

5

CLAMP, UPPER

09403-07310

Unavailable

6

CLAMP This part replaces 09403-09301.

09404-06037

Unavailable

7

CLAMP This part replaces 09404-08402.

09404-08420

$3.16

8

SCREW This part replaces 02112-06125.

02112-0612A

$1.49

9

STOPPER, CLUTCH CABLE This part replaces 58634-38200.

58634-38210

$8.42

10

CABLE, THROTTLE NO.1

58300-38200

Unavailable

11

CABLE, THROTTLE NO.2

58300-38210

Unavailable

12

CLAMP(L:250) This part replaces 09407-25301.

09407-25302

Unavailable

13

CABLE ASSY,DECO This part replaces 58900-38201.

58900-09B00

Unavailable

14

STOPPER, CL RLSE CAM SHAFT This part replaces 02152-06108.

02142-0610A

$1.49
