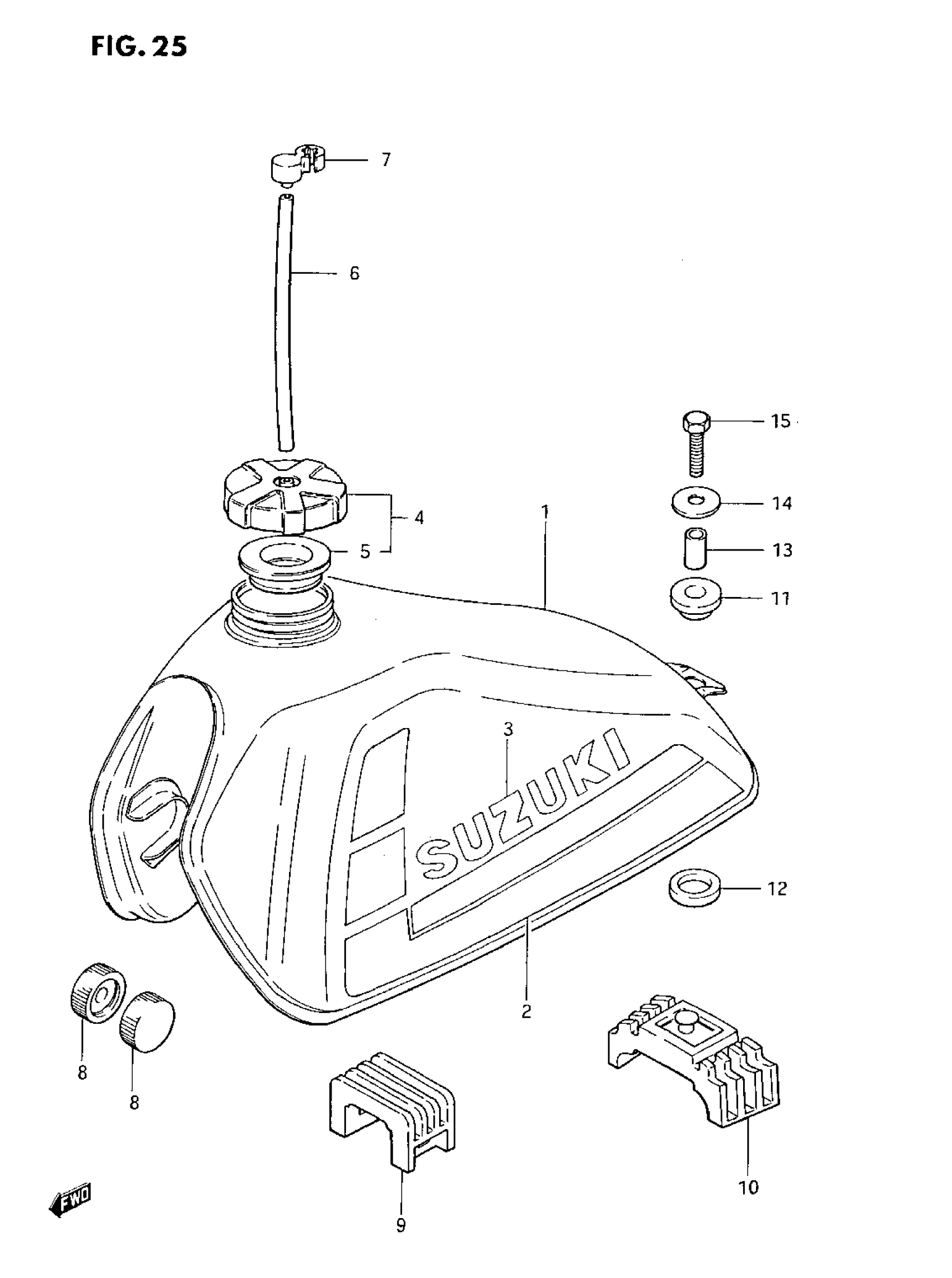

Suzuki DR250 (1985) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 49100-38270-163.

44110-38212-13L

Unavailable

2

TAPE SET

68110-38260-67H

Unavailable

3

EMBLEM (BLACK)

68111-43400-019

Unavailable

4

CAP, FUEL TANK

44200-05812

Unavailable

5

GASKET This part replaces 44248-05210.

44248-05211

$3.76

6

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$10.06

7

CLAMP

44486-32101

$3.65

8

CUSHION, FRONT

09329-10016

$3.10

9

CUSHION, UPPER FRONT

44541-38200

Unavailable

10

CUSHION, UPPER REAR

44542-38200

Unavailable

11

CUSHION, REAR NO.1 This part replaces 09320-12010.

09320-12013

$2.60

12

CUSHION, REAR NO.2 This part replaces 09320-12023.

09320-12017

$2.18

13

SPACER

09180-08067

$2.41

14

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

15

BOLT This part replaces 01107-08308.

01500-08307

$3.04
