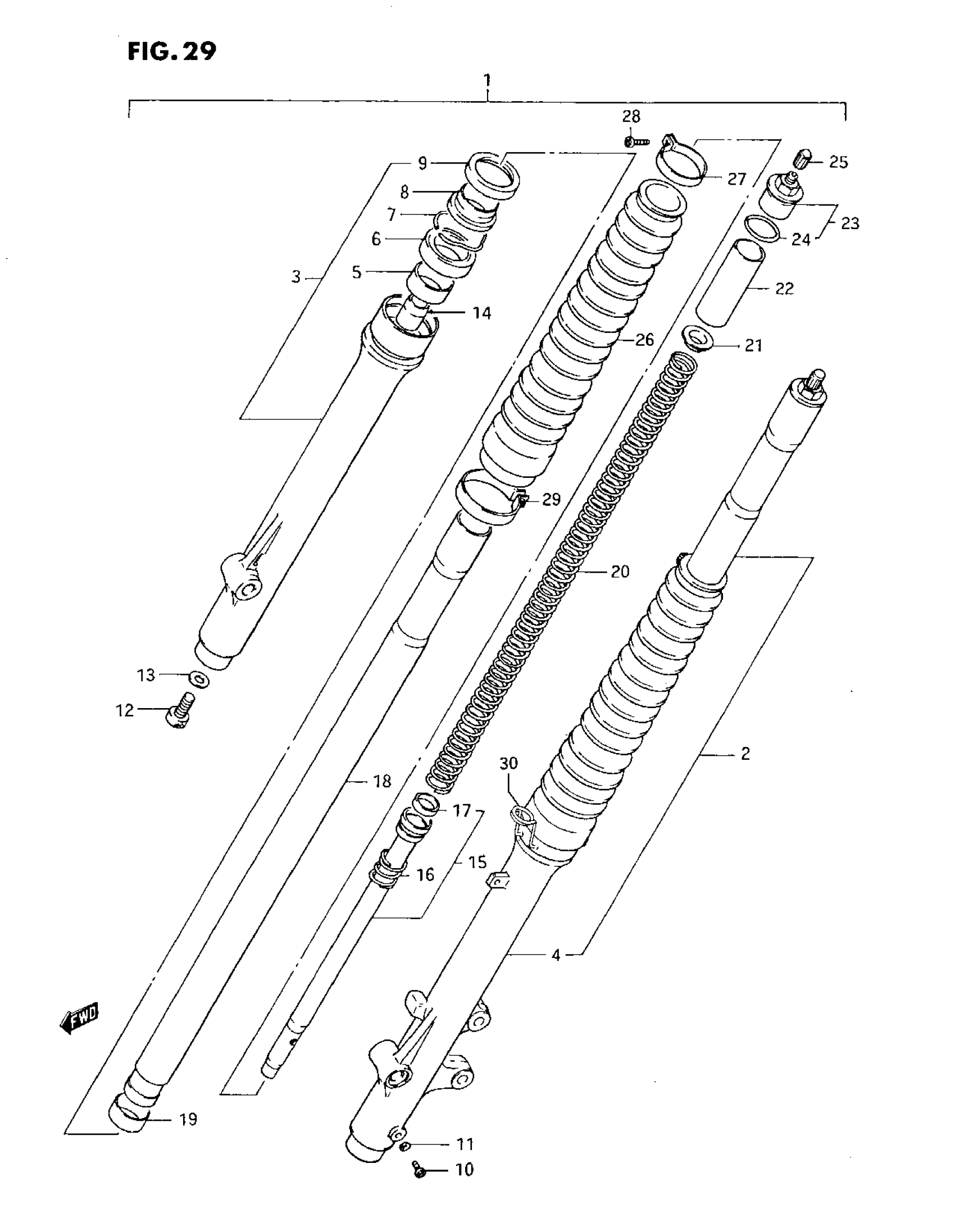

Suzuki DR250 (1985) FRONT FORK Diagram

#

Description
Price

1

DAMPER ASSY , RH

51103-38290

Unavailable

2

DAMPER ASSY, LH

51104-38290

Unavailable

3

OUTER TUBE, RH (YELLOW)

51130-38290-163

Unavailable

4

OUTER TUBE, LH (YELLOW)

51140-38290-163

Unavailable

5

SLIDE METAL

51167-37446

Unavailable

6

FORK OIL SEAL This part replaces 51153-41211.

51153-16730

Unavailable

7

RING, STOPPER

51156-30400

Unavailable

8

DUST SEAL

51173-40500

Unavailable

9

CASE, DUST SEAL

51149-40500

Unavailable

10

SCREW

02112-04087

$1.49

11

GASKET

51183-03010

$2.07

12

BOLT

51147-16510

$4.34

13

GASKET

51148-41310

$2.26

14

PIECE, OIL LOCK This part replaces 51195-41210.

51195-49071

$21.43

15

CYLINDER

51146-38200

Unavailable

16

SPRING

51177-37446

Unavailable

17

RING

51196-37446

Unavailable

18

INNER TUBE

51110-38265

Unavailable

19

PISTON

51121-37410

Unavailable

20

SPRING

51171-38200

Unavailable

21

GUIDE, SPRING

51172-38010

Unavailable

22

SPACER

51176-38215

Unavailable

23

CAP

51351-38265

Unavailable

24

O-RING

51117-16310

Unavailable

25

CAP, VALVE

51294-20400

$7.37

26

BOOT This part replaces 51571-38265-19F.

51571-38265-38K

Unavailable

27

BAND, UPPER

51575-41410

Unavailable

28

SCREW This part replaces 02112-04167.

02112-0416A

$1.49

29

BAND, LOWER RH

51573-41410

Unavailable

30

BAND, LOWER LH

51573-37200

Unavailable
