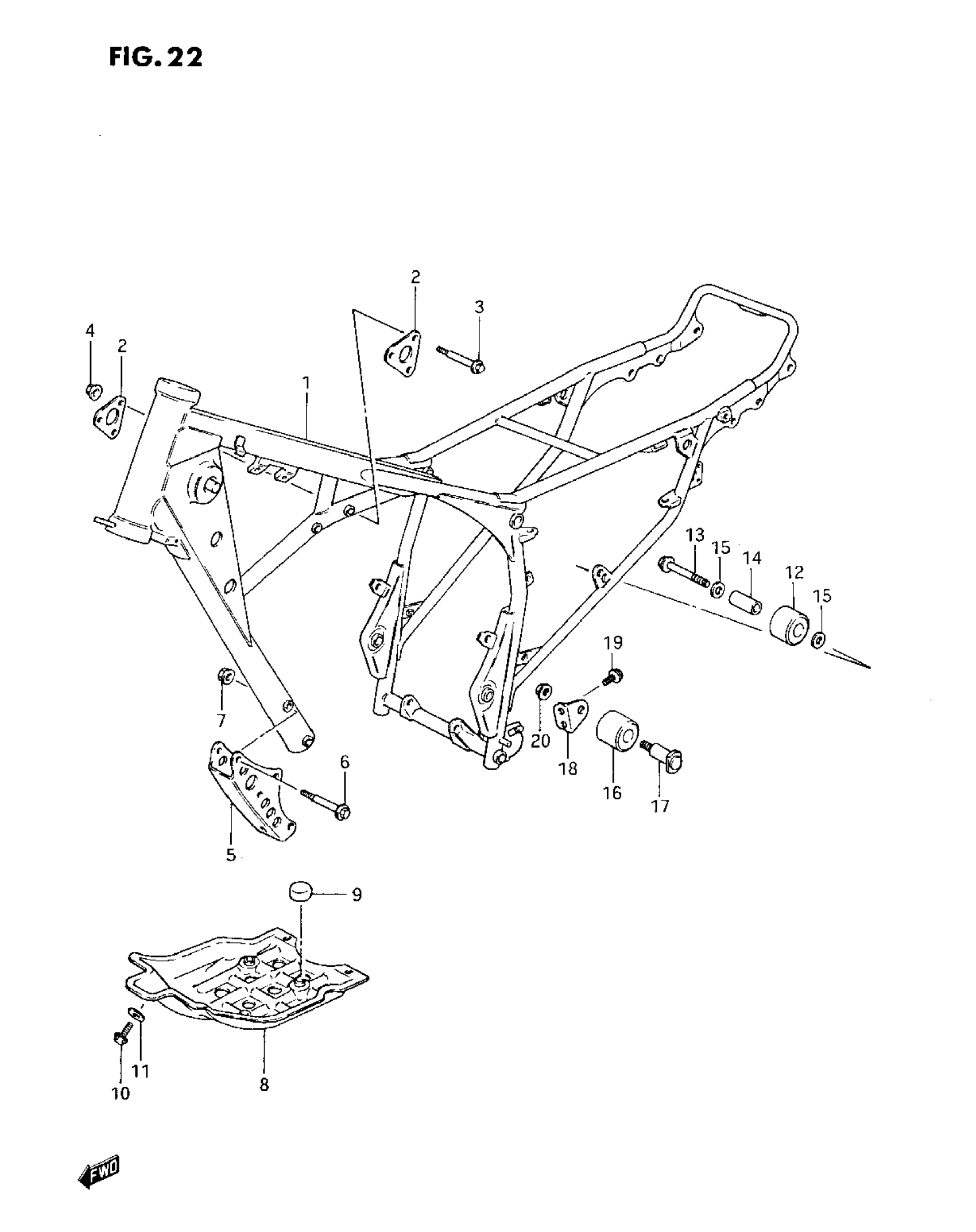

Suzuki DR250 (1985) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 41100-38211-19F.

41100-38211-019

Unavailable

2

PLATE, UPPER

41991-38200

Unavailable

3

BOLT (8X50)

09103-08081

$3.72

4

NUT This part replaces 08319-31085.

08319-3108A

$2.32

5

NO DESCRIPTION AVAILABLE This part replaces 41992-38200.

41992-38200-019

Unavailable

6

BOLT (8X67) This part replaces 09103-08075.

09103-08037

$5.57

7

NUT This part replaces 08319-31085.

08319-3108A

$2.32

8

NO DESCRIPTION AVAILABLE This part replaces 42510-38200-08C.

42510-38200-13L

Unavailable

9

CUSHION

09329-12003

Unavailable

10

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

11

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06069.

09160-06052

$1.49

12

ROLLER, CHAIN UPPER

43911-14200

Unavailable

13

BOLT

09103-08043

$3.18

14

SPACER

43913-40400

Unavailable

15

WASHER This part replaces 09160-08035.

09160-08130

$2.03

16

ROLLER, CHAIN LOWER

43911-14200

Unavailable

17

SHAFT, LOWER

43910-38200

Unavailable

18

BRACKET, LOWER

43916-38200

Unavailable

19

BOLT This part replaces 01517-06128.

01550-06127

$2.30

20

NUT This part replaces 08319-31088.

08319-3108A

$2.32
