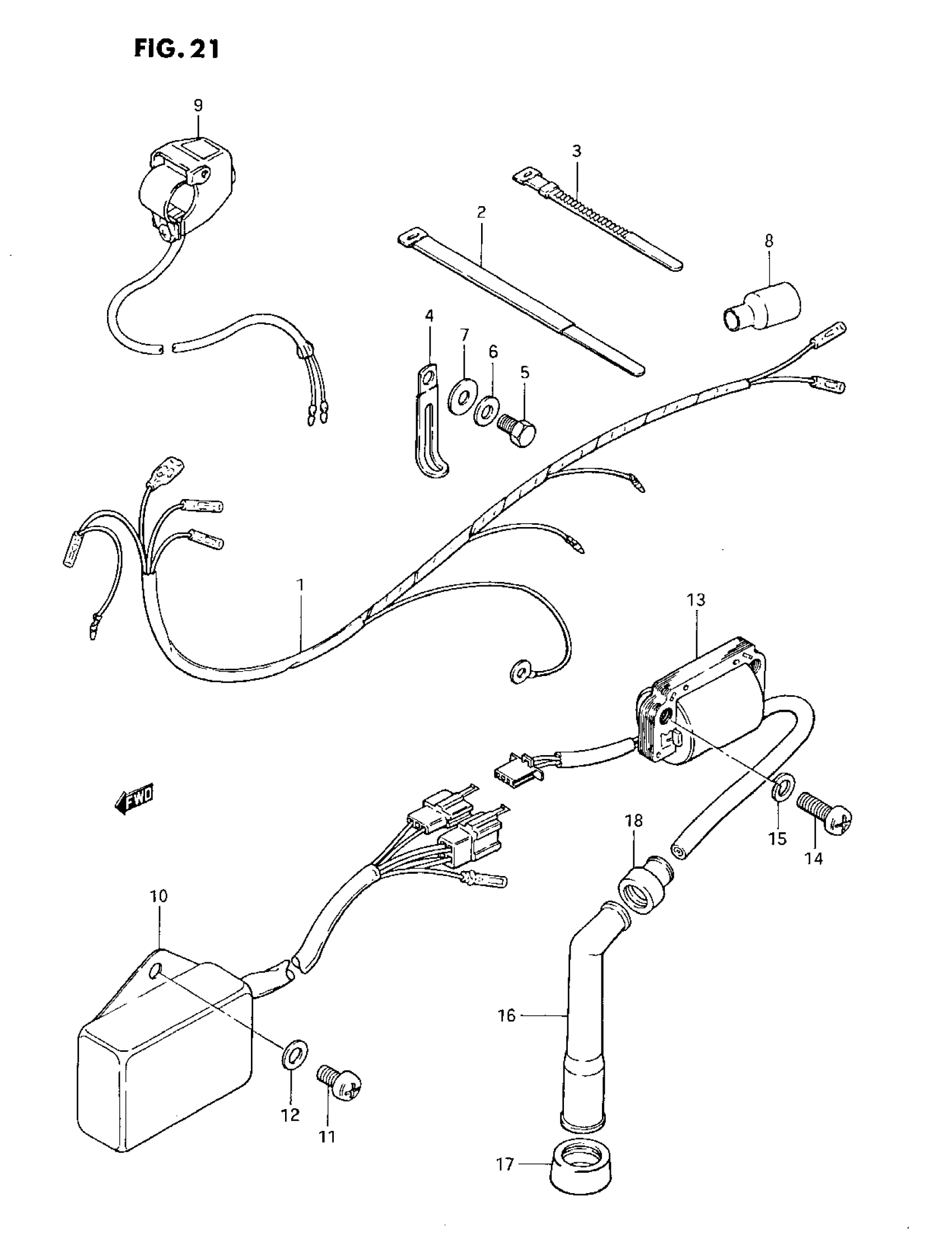

Suzuki DR250 (1985) ELECTRICAL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 36610-05280.

36610-29502

Unavailable

2

CLAMP This part replaces 09407-11301.

09407-18302

$2.28

2

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

3

CLAMP

09407-12402

$3.04

4

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

4

CLAMP This part replaces 09404-08414.

09404-08420

$3.16

5

BOLT This part replaces 01107-06165.

01500-0616A

$1.78

6

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

7

WASHER This part replaces 09160-06006.

09160-06084

$1.78

8

BOOT, TAIL LAMP

36618-34000

Unavailable

9

SWITCH ASSY, ENGINE STOP

37830-13A00

Unavailable

10

IGNITER UNIT ASSY

32900-38210

Unavailable

11

SCREW This part replaces 02112-06104.

02112-0610B

$1.84

12

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

13

COIL ASSY, IGNITION

33410-38210

Unavailable

14

SCREW This part replaces 02112-06208.

02112-06207

$1.78

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

CAP, SPARK PLUG

33510-45010

$24.99

17

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

18

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34
