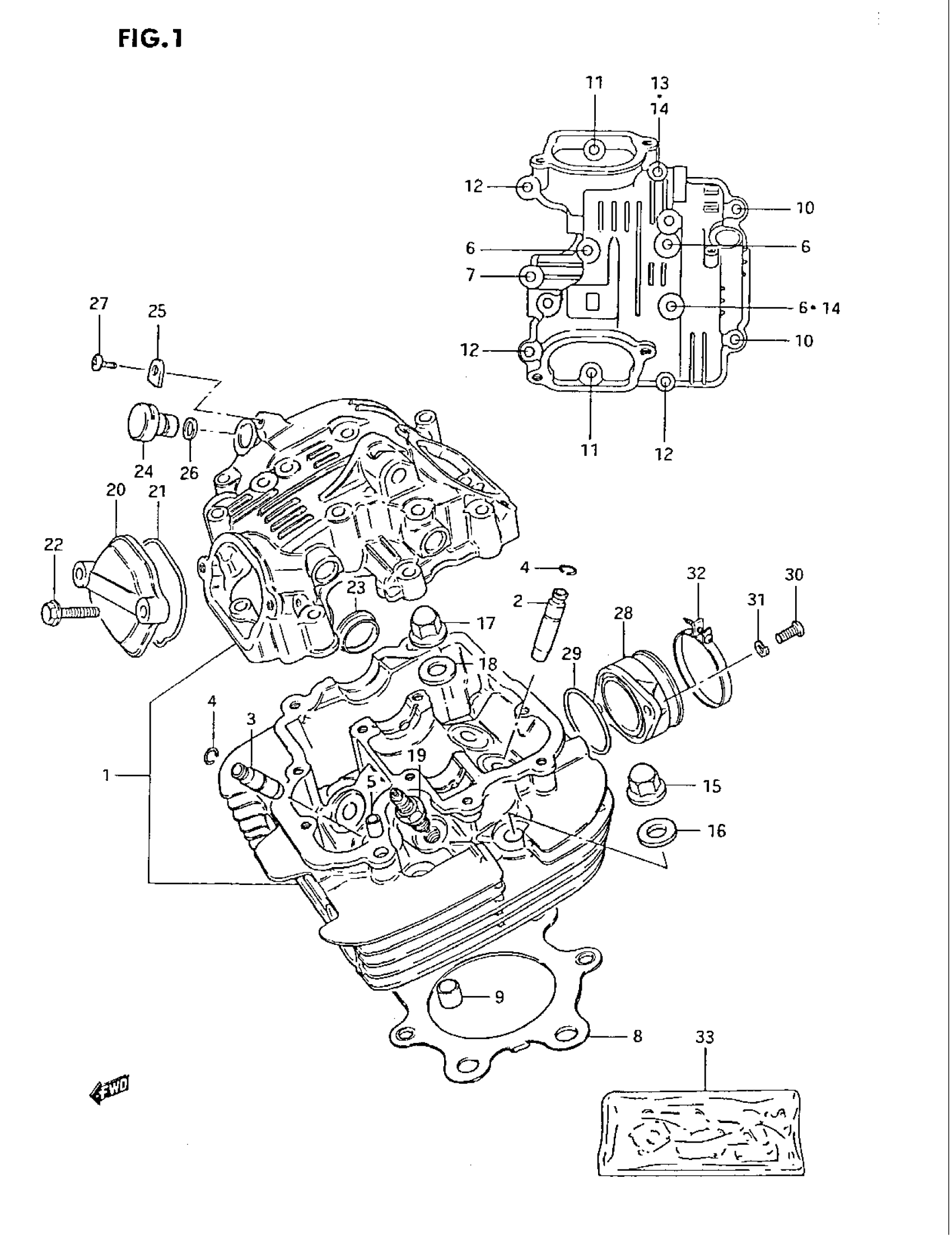

Suzuki DR250 (1985) CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

11100-38231

Unavailable

2

GUIDE, IN VALVE

11115-38270

$40.73

3

GUIDE, VALVE (0S:0.3)

11115-05270

$32.10

4

.RING (10X85)

09381-10004

$1.50

5

PIN

09206-08001

$1.78

6

BOLT This part replaces 01517-06605.

01550-0660A

$3.05

7

BOLT This part replaces 01517-06305.

01550-0630A

$2.32

8

GASKET, CYLINDER HEAD This part replaces 11141-38200.

11141-25D11

$32.36

9

PIN This part replaces 09206-13001.

04211-13189

$2.19

10

BOLT (6x115) This part replaces 09103-06053.

09103-06167

$4.26

11

BOLT This part replaces 01517-06305.

01550-0630A

$2.32

12

BOLT This part replaces 01517-06455.

01550-0645A

$2.41

13

BOLT This part replaces 01517-06605.

01550-0660A

$3.05

14

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.35

15

NUT This part replaces 09159-10033.

09159-10026

$6.20

16

WASHER (10.5X22X2.3) This part replaces 09160-10060.

09160-10039

$2.26

17

NUT

09159-10026

$6.20

18

GASKET

09168-10017

$3.04

19

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

$3.32

19

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

$5.18

20

CAP, INSPECTION This part replaces 11175-38230.

11175-38202

$23.35

21

O-RING

09280-55003

$3.89

22

BOLT This part replaces 01517-06254.

01550-0625A

$1.97

23

PLUG, HEAD

09241-30004

$6.60

24

PLUG, SLEEVE HOLE

26442-45000

$19.72

25

PLATE

26449-33000

$4.35

26

SEAL BAND

26451-45000

$5.05

27

SCREW

09128-05101

$1.49

28

PIPE, INTAKE

13110-38200

$40.42

29

O-RING (D:2.4,ID:39.7) This part replaces 09280-40003.

09280-40020

$2.91

30

SCREW This part replaces 02112-06168.

02112-06167

$1.49

31

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

32

CLAMP

09402-52306

$4.91

33

NO DESCRIPTION AVAILABLE | OPT This part replaces 11400-38813.

11400-38819

Unavailable
