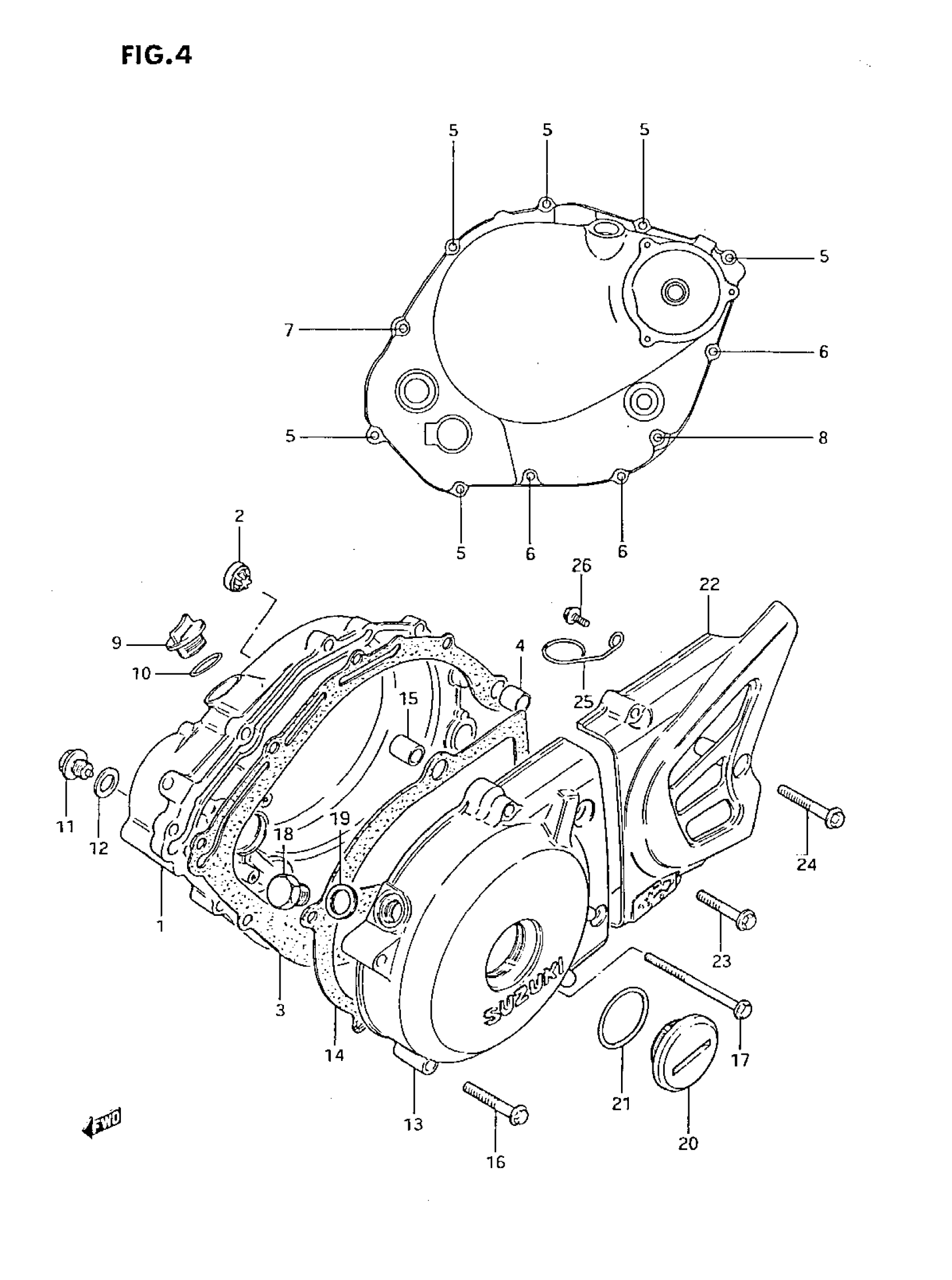

Suzuki DR250 (1985) CRANKCASE COVER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 11340-38230.

11340-38240

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

GASKET, CLUTCH COVER This part replaces 11482-38200.

11482-38212

$27.42

4

PIN This part replaces 09206-13001.

04211-13189

$2.19

5

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06254.

01547-0625B

$2.45

6

BOLT, WATER PUMP This part replaces 01547-06354.

01547-0635B

$2.73

7

BOLT This part replaces 01547-06404.

01547-0640B

$2.75

8

BOLT This part replaces 01547-06454.

01547-0645B

$2.73

9

.PLUG This part replaces 09259-20008.

09259-20008-XC0

$7.50

10

GASKET

09280-17003

$1.65

11

PLUG, OIL CHECK

09247-14015

$4.45

12

GASKET

09168-14004

$1.83

13

COVER, MAGNETO

11351-38230

Unavailable

14

GASKET,MAGNETO This part replaces 11483-38200.

11483-38210

Unavailable

15

PIN This part replaces 09206-13001.

04211-13189

$2.19

16

BOLT, WATER PUMP This part replaces 01547-06354.

01547-0635B

$2.73

17

BOLT This part replaces 01547-06505.

01547-0650B

$2.75

18

PLUG, T.D.C

09247-12103

$2.84

19

GASKET

09168-12002

$1.59

20

PLUG, SHAFT HOLE This part replaces 09259-36007.

09259-36016-20H

$13.80

21

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

22

COVER, ENGINE SPROCKET

11361-38230

Unavailable

23

BOLT This part replaces 01547-05304.

01547-0530B

$2.56

24

BOLT This part replaces 01547-05355.

01547-0535B

$3.05

25

CLAMP, CLEANER DRAIN HOSE

58621-17200

Unavailable

26

BOLT This part replaces 01517-06106.

01550-0610A

$1.97
