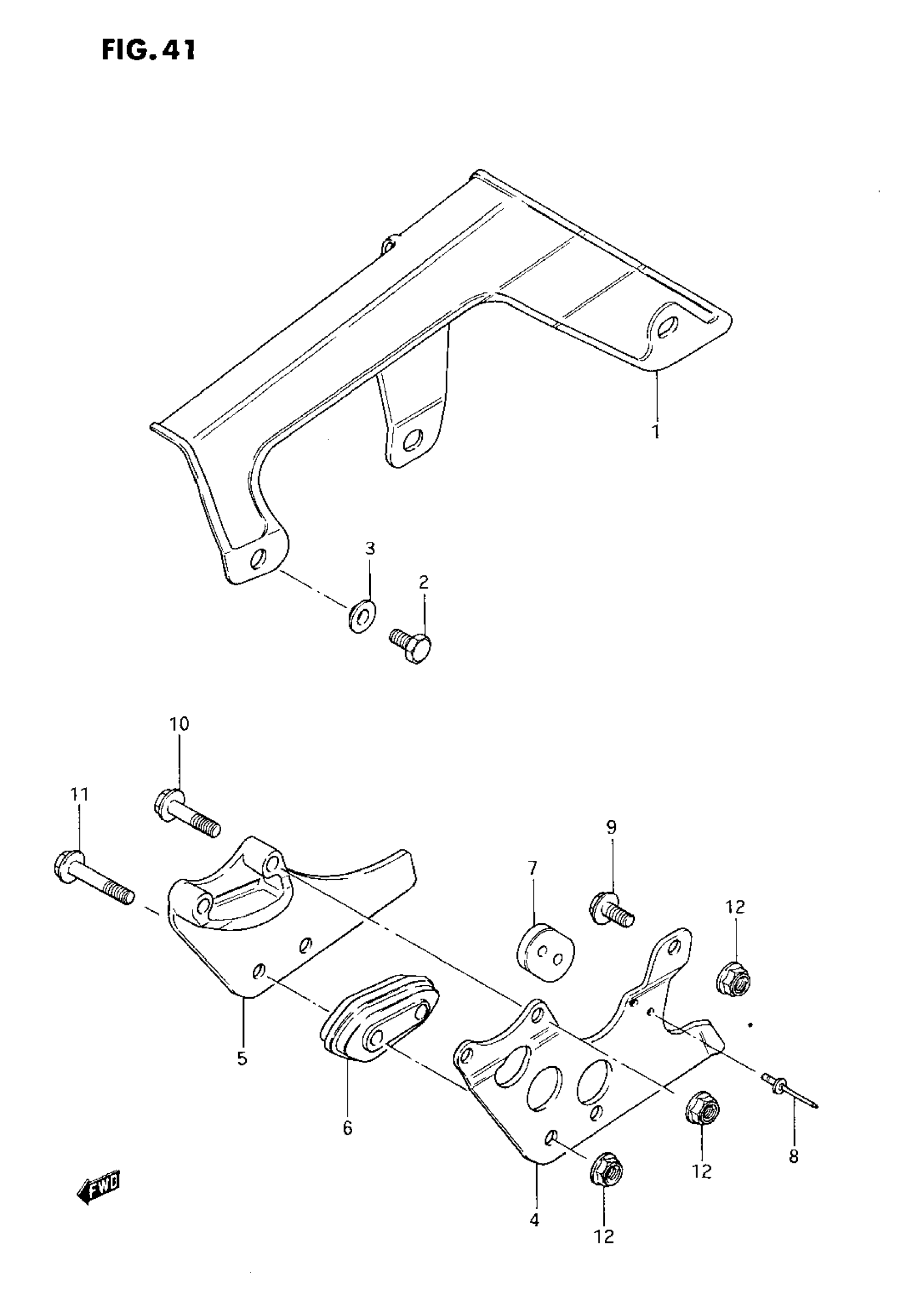

Suzuki DR250 (1985) CHAIN GUIDE Diagram

#

Description
Price

1

CHAIN CASE (BLACK)

61311-38210-291

Unavailable

2

BOLT This part replaces 01107-06125.

01500-0612A

$1.78

3

WASHER This part replaces 09169-06025.

09169-06010

$2.60

4

GUIDE, CHAIN OUTER

61341-38221

Unavailable

5

GUIDE, CHAIN INNER

61342-38220

Unavailable

6

DEFENSE

61348-14110

Unavailable

7

PAD

61349-40211

Unavailable

8

RIVET

09229-03005

Unavailable

9

BOLT This part replaces 01517-06168.

01550-06167

$2.30

10

BOLT This part replaces 01517-06358.

01550-06357

$2.77

11

BOLT This part replaces 01517-06408.

01550-06407

$2.69

12

NUT This part replaces 08319-31068.

08319-31067

$2.03
