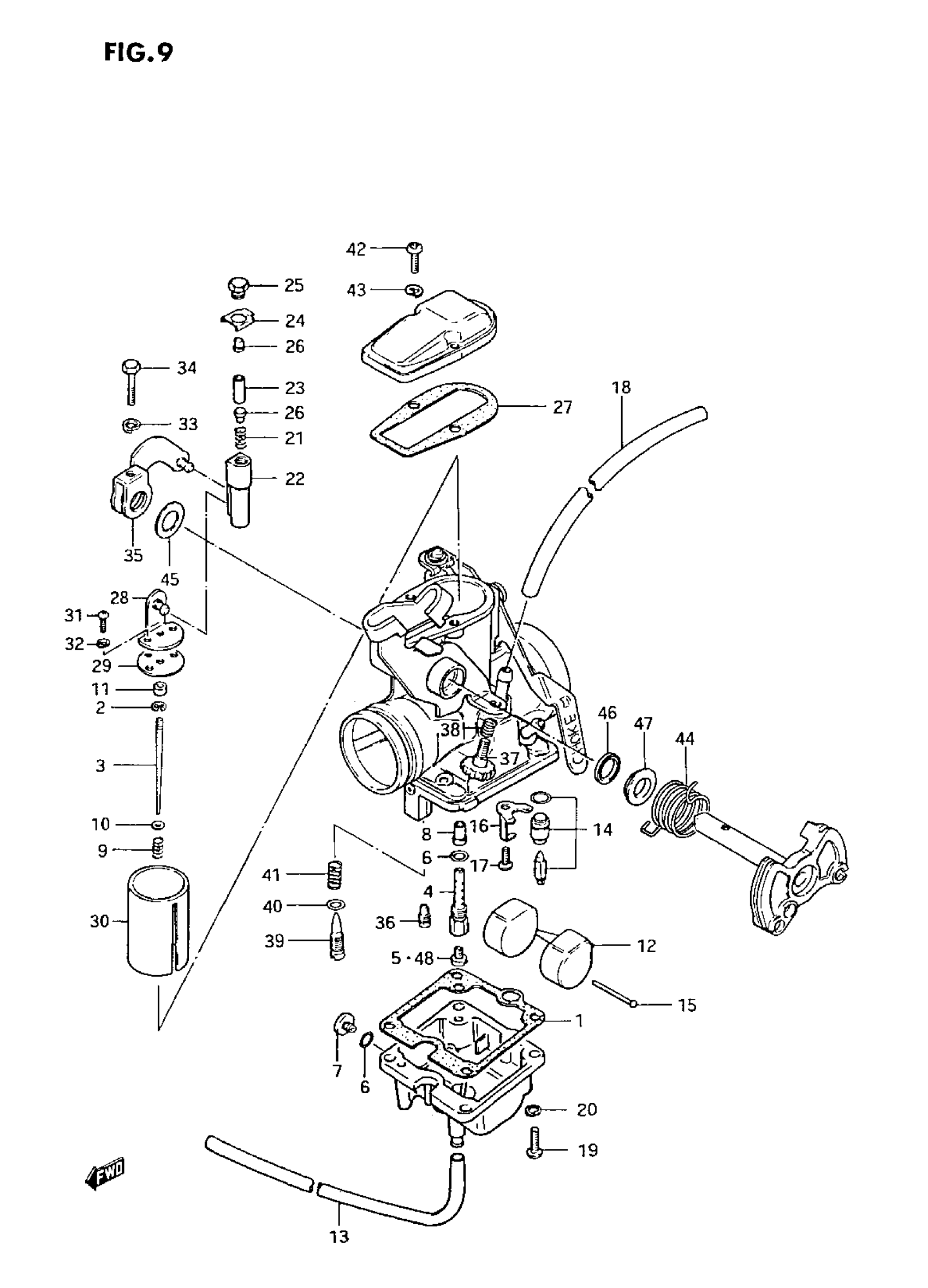

Suzuki DR250 (1985) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY

13200-38200

Unavailable

1

GASKET, FLOAT CHAMBER

13251-32410

Unavailable

2

E-RING

13394-10010

$5.45

3

NEEDLE, JET (6G1-3)

13383-37200

Unavailable

4

PIPE, BLEED

13385-38200

Unavailable

5

JET, MAIN (112.5)

09491-22015

$9.69

6

.O RING This part replaces 13246-43010.

13246-43011

$4.34

7

SCREW

13247-45010

Unavailable

8

JET, NEEDLE (P -0)

09494-00364

Unavailable

9

SPRING

13388-32400

Unavailable

10

WASHER

13382-47010

$3.56

11

RING

13387-47010

$7.22

12

FLOAT

13252-32410

Unavailable

13

HOSE (3.5X6.5X600) This part replaces 13683-37420.

09351-35653-600

$4.64

14

VALVE, NEEDLE

13370-37420

Unavailable

15

PIN, FLOAT

13254-92311

$2.07

16

PLATE

13373-38200

Unavailable

17

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

18

HOSE,5X10X600 | L:400-250 This part replaces 13683-11420.

44421-13ER0

$10.06

19

SCREW This part replaces 02112-05168.

02112-05167

$1.97

20

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

21

SPRING

13543-32410

Unavailable

22

CONNECTOR

13545-32212

Unavailable

23

PIN

13546-30650

Unavailable

24

PLATE

13547-43010

Unavailable

25

SCREW, GUIDE

13548-32212

Unavailable

26

PIN

13544-43010

Unavailable

27

GASKET

13266-30650

Unavailable

28

BRACKET

13398-38200

Unavailable

29

PLATE

13581-29320

Unavailable

30

VALVE, PISTON

13551-38200

Unavailable

31

SCREW This part replaces 02112-03108.

02112-03107

$1.49

32

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

33

LOCK WASHER This part replaces 13614-45010.

08321-0105A

$1.84

34

BOLT This part replaces 13613-43010.

01500-0516B

$2.15

35

ARM, THROTTLE

13541-37420

Unavailable

36

JET, PILOT (15) This part replaces 09492-15003.

09492-15007

$11.38

37

ADJUSTER, THROTTLE

13267-37230

Unavailable

38

SPRING This part replaces 13271-95210.

13271-93311

$4.64

39

ADJUSTER

13279-45010

Unavailable

40

O-RING

13278-45010

$6.30

41

SPRING

13271-45030

Unavailable

42

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

43

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

44

NO DESCRIPTION AVAILABLE This part replaces 13573-38200.

13573-32410

Unavailable

45

WASHER This part replaces 13574-38200.

13575-38200

Unavailable

46

SEAL

13556-32410

Unavailable

47

RING

13574-32410

Unavailable

48

JET, MAIN (107.5) | OPT

09491-21014

$11.83

48

JET, MAIN (110) | OPT

09491-22016

$10.06

48

JET, MAIN (115) | OPT

09491-23011

$9.63

48

JET, MAIN (117.5) | OPT

09491-23017

$11.83

48

JET, MAIN (120) | OPT This part replaces 09491-24005.

09491-24016

$11.38
