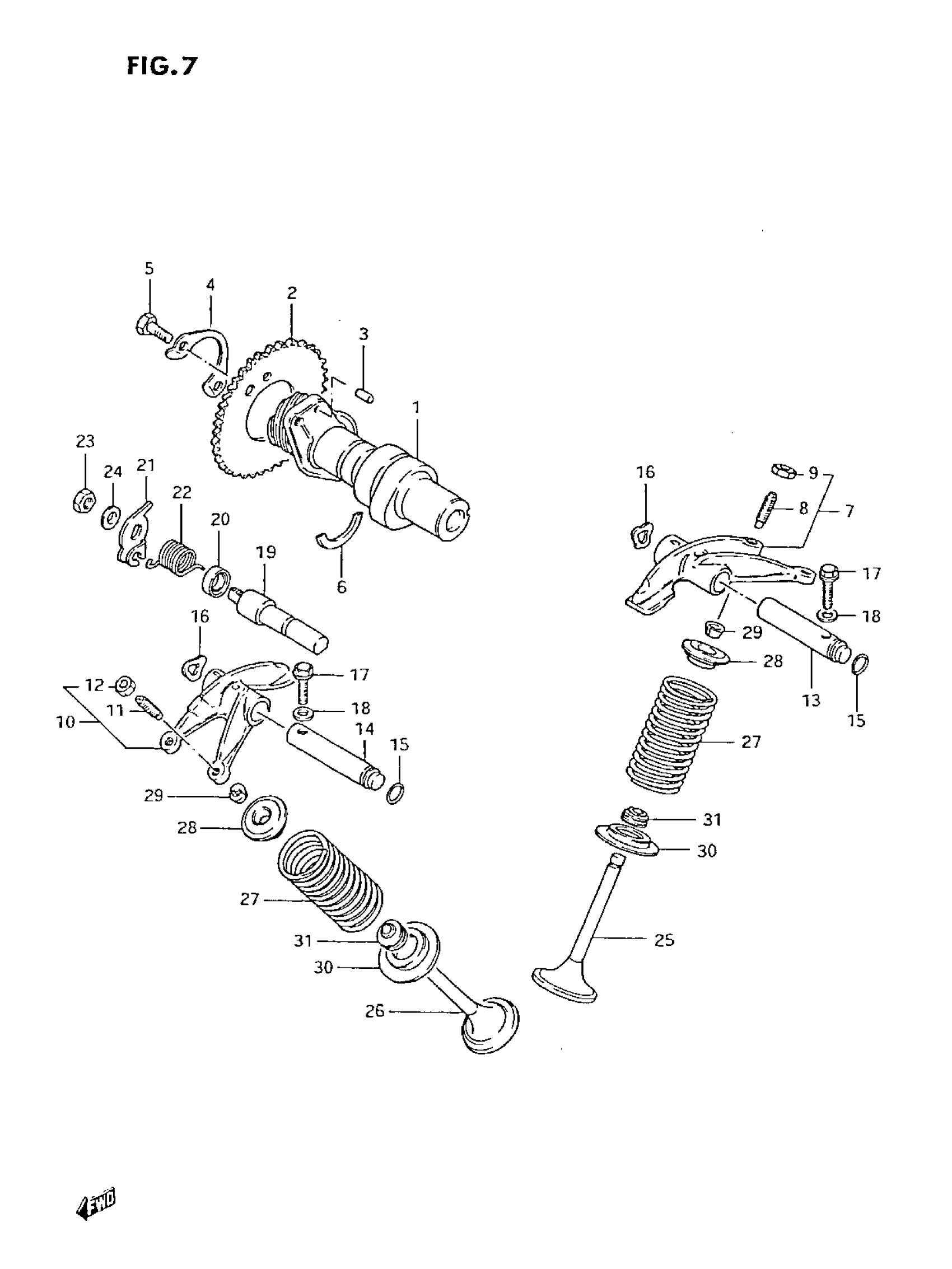

Suzuki DR250 (1985) CAM SHAFT-VALVE Diagram

#

Description
Price

1

CAM SHAFT This part replaces 12711-38200.

12711-38212

Unavailable

2

SPROCKET (NT:42)

12741-37400

Unavailable

3

PIN

04221-05109

$1.49

4

WASHER This part replaces 12747-44000.

12747-44001

$2.60

5

BOLT

09111-06027

$1.87

6

C-RING

09390-25003

$2.56

7

ARM, VALVE ROCKER INTAKE This part replaces 12840-38200.

12840-38201

Unavailable

8

SCREW, TAPPET ADJUSTING This part replaces 12842-49210.

12842-49201

$7.48

9

.NUT,TAPPET ADJUSTING This part replaces 12843-49210.

12843-27A00

$2.80

10

ARM, VALVE ROCKER EXHAUST This part replaces 12850-38200.

12850-38201

Unavailable

11

SCREW, TAPPET ADJUSTING This part replaces 12842-49210.

12842-49201

$7.48

12

.NUT,TAPPET ADJUSTING This part replaces 12843-49210.

12843-27A00

$2.80

13

SHAFT, ROCKER ARM IN | L:91.5

12861-38200

Unavailable

14

SHAFT, ROCKER ARM EX | L:76

12871-38200

$33.02

15

.O RING (D:1.9,ID:8.6) This part replaces 09280-09004.

09280-09005

$3.33

16

WASHER

09164-12018

$1.41

17

BOLT This part replaces 01517-06305.

01550-0630A

$2.31

18

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.01

19

SHAFT, DECOMP RH This part replaces 12941-37101.

12941-37103

Unavailable

20

SEAL, OIL This part replaces 09284-10008.

09282-10014

$6.04

21

LEVER, SHAFT RH This part replaces 12942-37100.

12942-37101

Unavailable

22

SPRING

09448-17014

$4.42

23

NUT, ADJUSTER This part replaces 08310-22085.

09140-08021

$2.87

24

WASHER This part replaces 08322-11084.

08322-0108A

$2.18

25

VALVE, INTAKE (OD:26)

12911-38200

$49.33

26

VALVE, EXHAUST This part replaces 12912-38200.

12912-38201

$85.77

27

VALVE SPRING

12921-38211

$10.82

28

RETAINER, VALVE SPRING This part replaces 12931-49200.

12931-49201

$6.51

29

COTTER, VALVE

12932-49200

$2.29

30

SEAT, SPRING

12933-38200

$7.22

31

OIL SEAL (5.5X11X8.2) This part replaces 09289-05003.

09289-05015

$6.04
