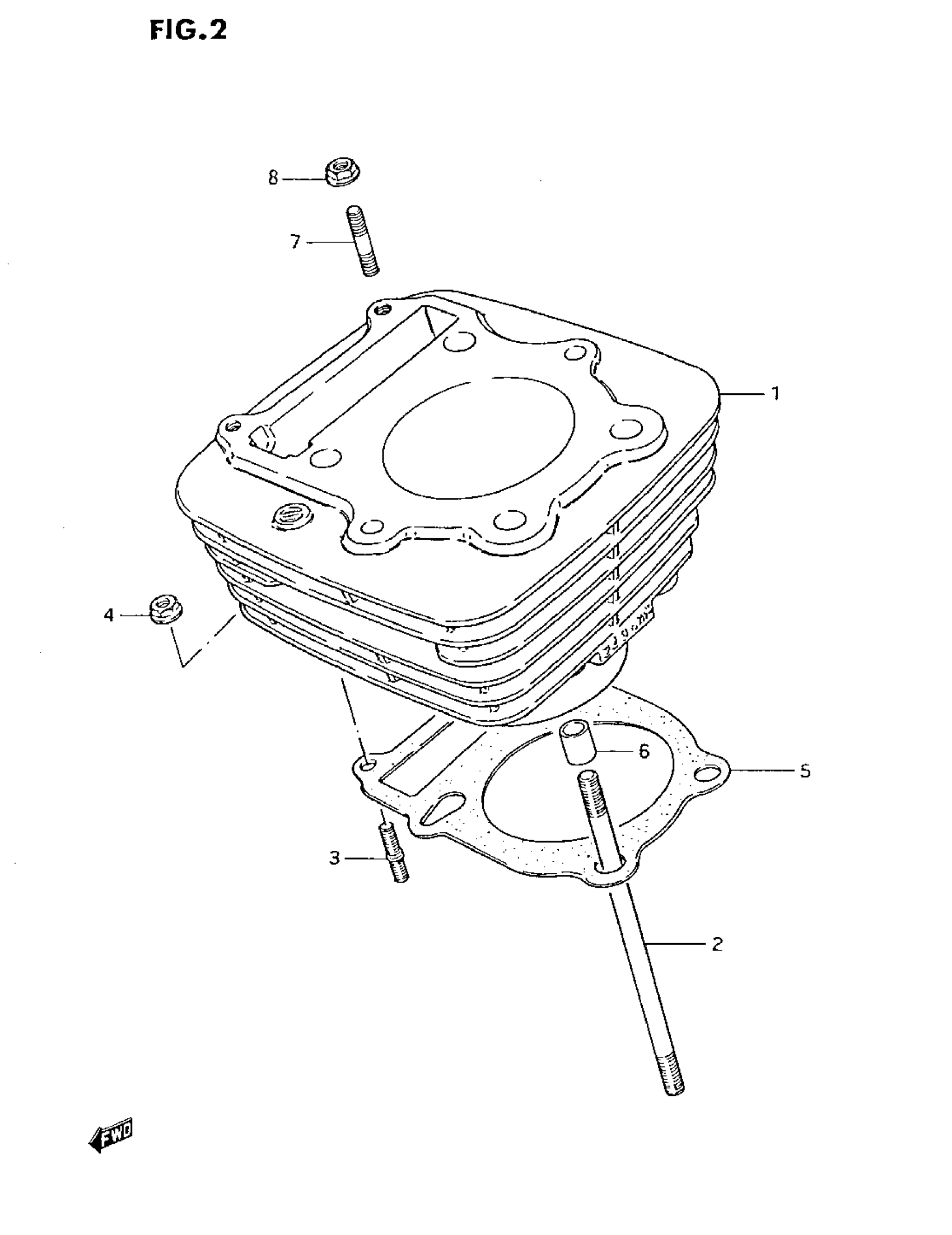

Suzuki DR250 (1985) CYLINDER Diagram

#

Description

Price

1

CYLINDER This part replaces 11210-38211.

11210-38204-0F0

$1,332.40

2

STUD BOLT (10X141)

09108-10030

$9.08

3

STUD BOLT This part replaces 01421-06255.

01421-0625A

$2.00

4

NUT This part replaces 08316-16064.

08316-1006B

$2.50

5

GASKET, CYLINDER This part replaces 11241-38202.

11241-38301

$10.58

6

PIN This part replaces 09206-13001.

04211-13189

$2.19

7

NO DESCRIPTION AVAILABLE This part replaces 01421-06305.

01421-0630B

Unavailable

8

NUT This part replaces 08316-16064.

08316-1006B

$2.50
