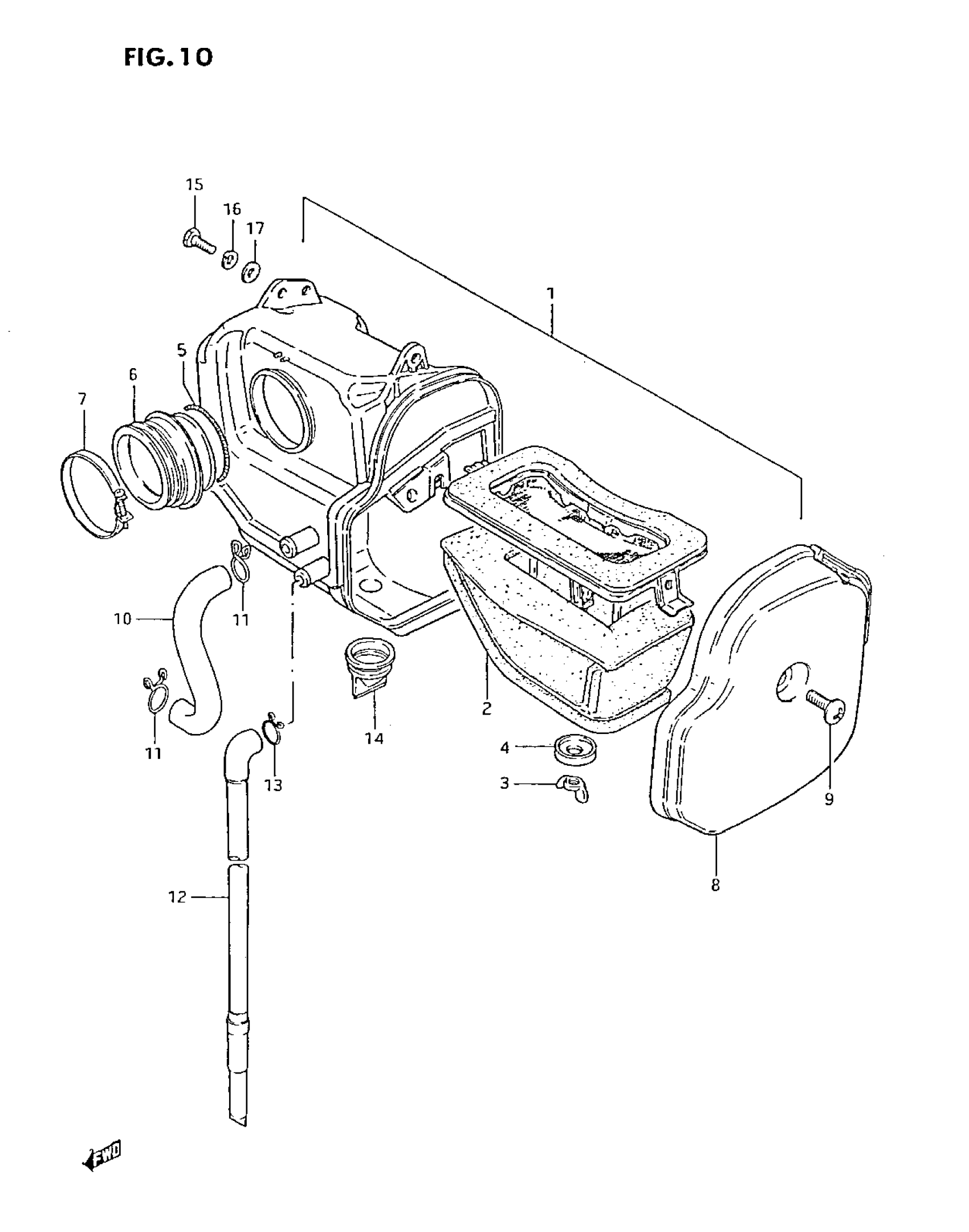

Suzuki DR250 (1985) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY , AIR

13700-38202

Unavailable

2

FILTER ASSY This part replaces 13781-38200.

13780-38200

Unavailable

3

NUT This part replaces 08317-11056.

08317-1205A

$2.53

4

WASHER

13796-20400

$2.99

5

SPRING

13931-02100

Unavailable

6

HOSE, OUTLET

13881-38200

Unavailable

7

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

8

CAP

13740-38201

Unavailable

9

SCREW, BODY COVER UPPER This part replaces 02142-06258.

09125-06055

$2.34

10

HOSE, BREATHER

13853-38200

Unavailable

11

CLIP

09401-16301

Unavailable

12

TUBE,DRAIN This part replaces 13870-21441.

13870-21629

$22.90

13

CLIP This part replaces 13824-00A00.

09401-13409

$2.12

14

HOSE, DRAIN (2)

13873-20400

Unavailable

15

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER This part replaces 09160-06007.

09160-06084

$1.78
